| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | FN |
| Minimum Order Quantity: | 1 |
| Price: | USD6000-USD10000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |
| Product Name: | Resistance Seam Welding Machine | Welding Material: | Metal Sheet Welding |
|---|---|---|---|
| MOQ: | 1 Set | Warranty: | 1 Year |
| Packaging Type: | Cartons | Welding Mode: | Roll Welding |
| Application: | Industries | Working Mode: | Auto Longitudinal Seam Welder |
| High Light: | Aluminum Resistance Seam Welding Machine,Cnc Metal Seam Welding Machine,50HZ Automotive Resistance Seam Welder |
||

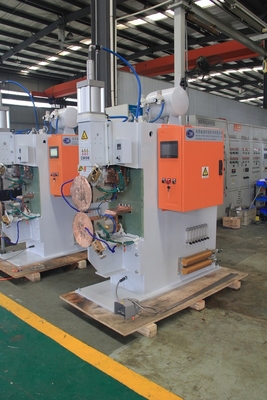

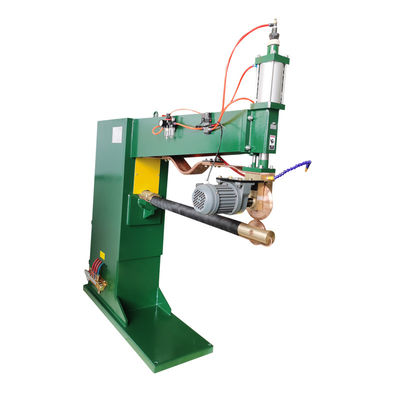

High Frequency Cnc Metal Automotive Aluminum Resistance Seam Welding Machine
Seam welding machine is a resistance welding machine in which the workpiece is placed between the roller electrode
or between the roller electrode and the strip electrode, continuously or intermittently rolling and intermittent or continuous
application of current, forming a linear weld.
Product Description
|
Model Item
|
Unit
|
FN-80-H
|
FN-100-H
|
FN-160-H
|
FN-100-E
|
FN-160-E
|
|
Rated power |
KVA
|
80
|
100
|
160
|
100
|
160
|
|
Voltage input
|
V
|
380
|
380
|
380
|
380
|
380
|
|
Frequency
|
Hz
|
50
|
50
|
50
|
50
|
50
|
|
Max. short circuit current
|
KA
|
26
|
30
|
40
|
30
|
40
|
|
Working stroke |
mm |
100 |
100
|
100 |
100 |
100
|
|
Welding efficiency
|
m/min
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
|
Max. force
|
N
|
6000
|
6000
|
7800
|
6000
|
7800
|
|
Max. welding capacity
|
mm
|
1.2+1.2
|
1.5+1.5
|
2.0+2.0
|
1.5+1.5
|
2.0+2.0
|
|
Motor Power |
W
|
550
|
750
|
750
|
750
|
400
|
|
Cooling consumption
|
L/min
|
8
|
8
|
10
|
8
|
10
|
|
Weight
|
Kg
|
380
|
510
|
630
|
530
|
700
|
Features:
1. There are two kinds of welding modes: horizontal and vertical.
2. The seam welder can cool quickly and the electrode can rotate very flexibly.
3. The seam welder is widely used in fuel tank, barrel, basin, and other sealed container welding,
