Ultrasonic Automatic Automotive Resistance Seam Welding Machine For Aluminum

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: FN
Minimum Order Quantity: 1
Price: USD6000-USD10000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Product Name: Resistance Seam Welder Welding Material: Metal Sheet Welding
MOQ: 1 Set Warranty: 1 Year
Packaging Type: Cartons Welding Mode: Roll Welding
Control System: Touch Screen Working Mode: Auto Horizontal Seam Welder
High Light:

Ultrasonic Resistance Seam Welding Machine

,

Automatic Seam Welding Machine

,

ISO Aluminum Resistance Seam Welder


Product Description

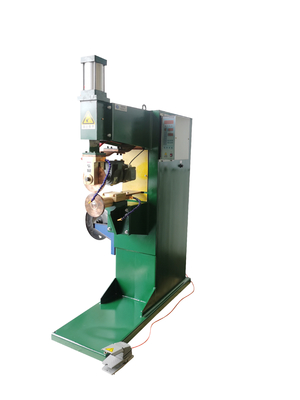

Ultrasonic Automatic Automotive Resistance Seam Welding Machine For Aluminum

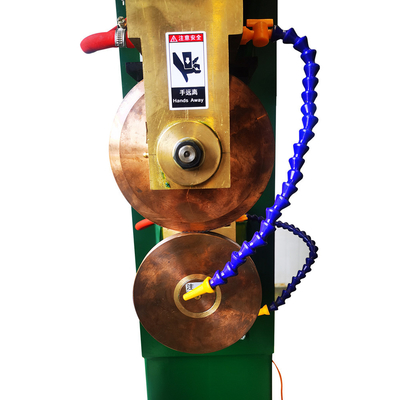

Seam welding machine is a resistance welding machine in which the workpiece is placed between the roller electrode

or between the roller electrode and the strip electrode, continuously or intermittently rolling and intermittent or continuous

application of current, forming a linear weld.





Product Description





Model Item
Unit
FN-80-H
FN-100-H
FN-160-H
FN-100-E
FN-160-E



 Rated power

KVA
80
100
160
100
160



Voltage input
V



380



 380



380



380



380





Frequency
Hz
50
50
50
50
50



Max. short circuit current
KA
26
30
40
30
40



Working stroke

  mm

100

100

100

100

100



Welding efficiency
m/min
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9



Max. force
N
6000
6000
7800
6000
7800



Max. welding capacity
mm
1.2+1.2
1.5+1.5
2.0+2.0
1.5+1.5
2.0+2.0



 Motor Power

W
550
750
750
750
400



Cooling consumption
L/min
8
8
10
8
10

Weight
Kg
380
510
630
530
700





Seam welder can be divided into continuous seam welder and stepping seam welder according to the rotation

mode of the roller electrode; According to the relationship between welding seam and electrode arm, it can be

divided into transverse seam welder, longitudinal seam welder and universal seam welder.





Ultrasonic Automatic Automotive Resistance Seam Welding Machine For Aluminum 0





Company Information
Ultrasonic Automatic Automotive Resistance Seam Welding Machine For Aluminum 1
Ultrasonic Automatic Automotive Resistance Seam Welding Machine For Aluminum 2
Ultrasonic Automatic Automotive Resistance Seam Welding Machine For Aluminum 3
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.

Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.

Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance Spot Welding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.
Certifications
Ultrasonic Automatic Automotive Resistance Seam Welding Machine For Aluminum 4
Ultrasonic Automatic Automotive Resistance Seam Welding Machine For Aluminum 5
Ultrasonic Automatic Automotive Resistance Seam Welding Machine For Aluminum 6
Ultrasonic Automatic Automotive Resistance Seam Welding Machine For Aluminum 7
Ultrasonic Automatic Automotive Resistance Seam Welding Machine For Aluminum 8
Ultrasonic Automatic Automotive Resistance Seam Welding Machine For Aluminum 9
Exhibition Pictures
Ultrasonic Automatic Automotive Resistance Seam Welding Machine For Aluminum 10
Ultrasonic Automatic Automotive Resistance Seam Welding Machine For Aluminum 11
Ultrasonic Automatic Automotive Resistance Seam Welding Machine For Aluminum 12
Ultrasonic Automatic Automotive Resistance Seam Welding Machine For Aluminum 13
Service
Ultrasonic Automatic Automotive Resistance Seam Welding Machine For Aluminum 14
Ultrasonic Automatic Automotive Resistance Seam Welding Machine For Aluminum 15
Ultrasonic Automatic Automotive Resistance Seam Welding Machine For Aluminum 16
Our engineers were intalling portable spot welding machine in car manufacturer's workshop oversea.
Our engineers will train customer how to operate, repair and maintaining machines and so on.
