Tube Linear Resistance Welding Equipment Long Roll Spot Seam Welding Machine

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: FN
Minimum Order Quantity: 1
Price: USD6000-USD10000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Product Name: Resistance Seam Welder Welding Material: Metal Sheet Welding
MOQ: 1 Set Warranty: 1 Year
Application: Solar Water Heater Tank Welding Mode: Roll Welding
Control System: Touch Screen Working Mode: Auto Longitudinal Seam Welder
High Light:

Tube Linear Resistance Welding Equipment

,

CE Resistance Welding Equipment

,

Long Roll Spot Seam Welding Machine


Product Description





Tube Linear Resistance Welding Equipment Long Roll Spot Seam Welding Machine

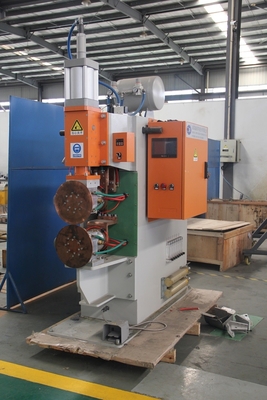

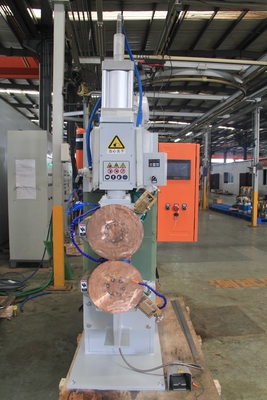

Seam welding machine is a resistance welding machine in which the workpiece is placed between the roller electrode or between the roller electrode and the strip electrode, continuously or intermittently rolling and intermittent or continuous application of current, forming a linear weld.





Product Description





Model Item
Unit
FN-80-H
FN-100-H
FN-160-H
FN-100-E
FN-160-E



 Rated power

KVA
80
100
160
100
160



Voltage input
V



380



 380



380



380



380





Frequency
Hz
50
50
50
50
50



Max. short circuit current
KA
26
30
40
30
40



Working stroke

  mm

100

100

100

100

100



Welding efficiency
m/min
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9



Max. force
N
6000
6000
7800
6000
7800



Max. welding capacity
mm
1.2+1.2
1.5+1.5
2.0+2.0
1.5+1.5
2.0+2.0



 Motor Power

W
550
750
750
750
400



Cooling consumption
L/min
8
8
10
8
10

Weight
Kg
380
510
630
530
700





Seam welder can be divided into continuous seam welder and stepping seam welder according to the rotation mode of the roller electrode; According to the relationship between welding seam and electrode arm, it can be divided into transverse seam welder, longitudinal seam welder and universal seam welder.



Transverse seam welder: the formed welding joint is perpendicular to the electrode arm and the rotating axis of the roller electrode of this kind of welder is parallel to the electrode arm. It is mainly used for welding long welds and circular welds of horizontal workpiece.

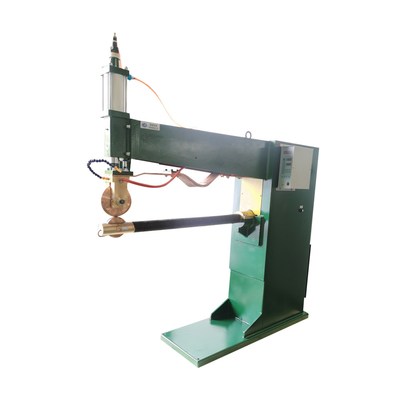

Longitudinal seam welder: the formed welding joint is parallel to the electrode arm. The rotating axis of the roller electrode of this kind of welder is perpendicular to the electrode arm and is mainly used for welding short welds of horizontal workpiece and vertical straight joints of cylindrical vessels.



Universal seam welder: it's a vertical and horizontal welder. Seam welding machine generally by the body, pressure mechanism, transmissionmechanism, welding transformer, power regulation mechanism, welding loop, in addition to the electrode and transmission mechanism, other parts and spot welding machine basically similar.



Tube Linear Resistance Welding Equipment Long Roll Spot Seam Welding Machine 0





Company Information
Tube Linear Resistance Welding Equipment Long Roll Spot Seam Welding Machine 1
Tube Linear Resistance Welding Equipment Long Roll Spot Seam Welding Machine 2
Tube Linear Resistance Welding Equipment Long Roll Spot Seam Welding Machine 3
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.

Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.

Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance Spot Welding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.
