| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | FN |
| Minimum Order Quantity: | 1 |
| Price: | USD6000-USD10000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |
| Product Name: | Resistance Seam Welder | Welding Material: | Metal Sheet Welding |
|---|---|---|---|
| MOQ: | 1 Set | Warranty: | 1 Year |
| Application: | Water Heater Inner Tank Welding | Welding Mode: | Roll Welding |
| Control System: | Touch Screen | Working Mode: | Auto Longitudinal Seam Welder |
| High Light: | Longitudinal Tube Seam Welding Machine,CE Resistance Seam Welding Machine,Tube Wire Sheet Longitudinal Welding Machine |
||

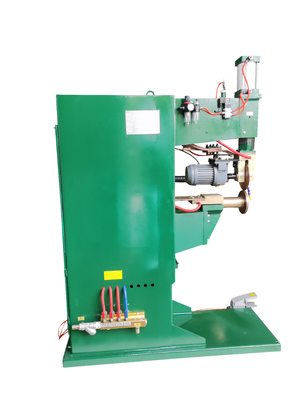

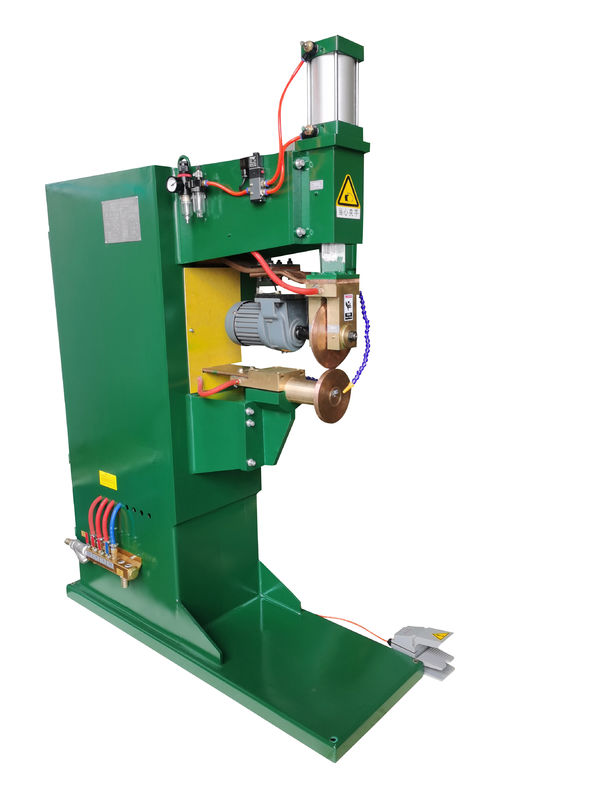

Tube Wire Sheet Metal Aluminum Resistance Longitudinal Tube Seam Welding Machine
Seam welding machine is a resistance welding machine in which the workpiece is placed between the roller electrode or between the roller electrode and the strip electrode, continuously or intermittently rolling and intermittent or continuous application of current, forming a linear weld.
Product Description
|
Model Item
|
Unit
|
FN-80-H
|
FN-100-H
|
FN-160-H
|
FN-100-E
|
FN-160-E
|
|
Rated power |
KVA
|
80
|
100
|
160
|
100
|
160
|
|
Voltage input
|
V
|
380
|
380
|
380
|
380
|
380
|
|
Frequency
|
Hz
|
50
|
50
|
50
|
50
|
50
|
|
Max. short circuit current
|
KA
|
26
|
30
|
40
|
30
|
40
|
|
Working stroke |
mm |
100 |
100
|
100 |
100 |
100
|
|
Welding efficiency
|
m/min
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
|
Max. force
|
N
|
6000
|
6000
|
7800
|
6000
|
7800
|
|
Max. welding capacity
|
mm
|
1.2+1.2
|
1.5+1.5
|
2.0+2.0
|
1.5+1.5
|
2.0+2.0
|
|
Motor Power |
W
|
550
|
750
|
750
|
750
|
400
|
|
Cooling consumption
|
L/min
|
8
|
8
|
10
|
8
|
10
|
|
Weight
|
Kg
|
380
|
510
|
630
|
530
|
700
|
The main function of seam welder transmission mechanism is to obtain the required welding speed, and some parts (such as seam welder head) are also responsible for the task of transferring welding pressure and welding current. Transmission mechanism has three types: active upper electrode , active lower electrode and uactive pper and lower electrode. Transverse seam welding machine is usually the active lower electrode, longitudinal seam welding machine and universal seam welding is generally the active upper electrode. The seam welder for welding plated steel plate usually adopts a driving mechanism with both active upper and lower electrodes
