| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | FN |
| Minimum Order Quantity: | 1 |
| Price: | USD6000-USD10000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |
| Product Name: | Resistance Seam Welding Machine | Welding Material: | Metal Sheet Welding |
|---|---|---|---|
| MOQ: | 1 Set | Warranty: | 1 Year |
| Application: | Water Heater Inner Tank Welding | Welding Mode: | Roll Welding |
| Control System: | Touch Screen | Working Mode: | Auto Longitudinal Seam Welder |
| High Light: | Inverter Seam Welding Equipment,Roller Spot Longitudinal Seam Welding Equipment,ISO Longitudinal Seam Welding Machine |
||

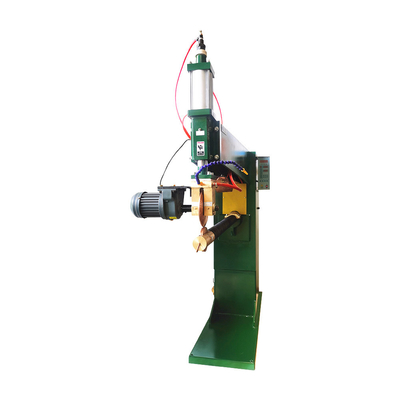

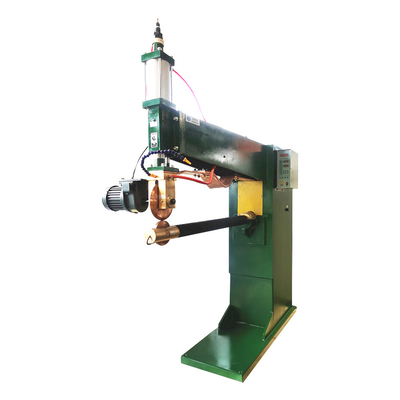

Inverter Seam Welding Equipment Roller Spot Longitudinal Seam Welding Machine
Seam welding machine is a resistance welding machine in which the workpiece is placed between the roller electrode or between the roller electrode and the strip electrode, continuously or intermittently rolling and intermittent or continuous application of current, forming a linear weld.
Product Description
|
Model Item
|
Unit
|
FN-80-H
|
FN-100-H
|
FN-160-H
|
FN-100-E
|
FN-160-E
|
|
Rated power |
KVA
|
80
|
100
|
160
|
100
|
160
|
|
Voltage input
|
V
|
380
|
380
|
380
|
380
|
380
|
|
Frequency
|
Hz
|
50
|
50
|
50
|
50
|
50
|
|
Max. short circuit current
|
KA
|
26
|
30
|
40
|
30
|
40
|
|
Working stroke |
mm |
100 |
100
|
100 |
100 |
100
|
|
Welding efficiency
|
m/min
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
|
Max. force
|
N
|
6000
|
6000
|
7800
|
6000
|
7800
|
|
Max. welding capacity
|
mm
|
1.2+1.2
|
1.5+1.5
|
2.0+2.0
|
1.5+1.5
|
2.0+2.0
|
|
Motor Power |
W
|
550
|
750
|
750
|
750
|
400
|
|
Cooling consumption
|
L/min
|
8
|
8
|
10
|
8
|
10
|
|
Weight
|
Kg
|
380
|
510
|
630
|
530
|
700
|
Feature:
1. The welding process is stable and and the joint is smooth.
2. The welding wheel can move left and right, front and back so as to meet the welding requirements.
3. The whole machine adopts PLC and AC frequency conversion speed regulation to ensure the reliability.
4. Welding forms can be preset, stored and transmitted. You can easily change parameters and state transitions.
