Roller Side Seam Welding Machine Longitudinal Weld Seam for Hot Air Air Duct Tin Can

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: FN
Minimum Order Quantity: 1
Price: USD6000-USD10000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Product Name: Resistance Seam Welding Machine Type: Portable Seam Welding Machine
MOQ: 1 Set Warranty: 1 Year
Application: Solar Water Heater Tank Welding Mode: Roll Welding
Control System: Touch Screen Working Mode: Auto Longitudinal Seam Welder
High Light:

Roller Side Seam Welding Machine

,

Longitudinal Weld Seam Welding Machine

,

Tin Can Longitudinal Welding Machine


Product Description

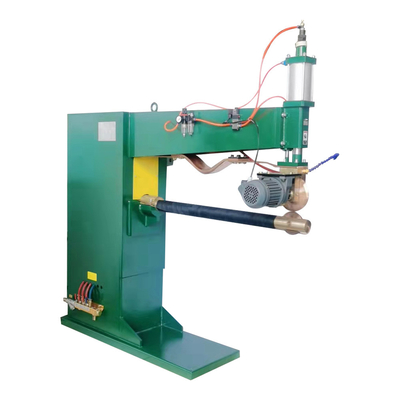

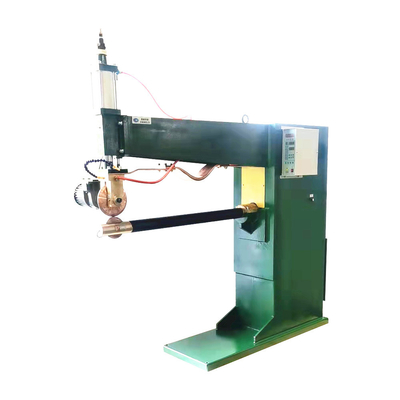

Hot Air Air Duct Tin Can Longitudinal Weld Seam Roller Side Seam Welding Machine





Seam welding machine is a resistance welding machine in which the workpiece is placed between the roller electrode or between the roller electrode and the strip electrode, continuously or intermittently rolling and intermittent or continuous application of current, forming a linear weld.





Product Description





Model Item
Unit
FN-80-H
FN-100-H
FN-160-H
FN-100-E
FN-160-E



 Rated power

KVA
80
100
160
100
160



Voltage input
V



380



 380



380



380



380





Frequency
Hz
50
50
50
50
50



Max. short circuit current
KA
26
30
40
30
40



Working stroke

  mm

100

100

100

100

100



Welding efficiency
m/min
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9



Max. force
N
6000
6000
7800
6000
7800



Max. welding capacity
mm
1.2+1.2
1.5+1.5
2.0+2.0
1.5+1.5
2.0+2.0



 Motor Power

W
550
750
750
750
400



Cooling consumption
L/min
8
8
10
8
10

Weight
Kg
380
510
630
530
700





composition:



Seam welding machine is composed of main body, workpiece positioning mechanism, workpiece pressing mechanism, welding wheel longitudinal running mechanism, cooling system, welding power supply, pneumatic system and electrical control system





Welding matetials:



Seam welder can weld stainless steel, titanium alloy, aluminum alloy, carbon steel, low alloy and other materials. The welding technology and tools used depend on the specific length and thickness of the workpiece







Roller Side Seam Welding Machine Longitudinal Weld Seam for Hot Air Air Duct Tin Can 0





Company Information
Roller Side Seam Welding Machine Longitudinal Weld Seam for Hot Air Air Duct Tin Can 1
Roller Side Seam Welding Machine Longitudinal Weld Seam for Hot Air Air Duct Tin Can 2
Roller Side Seam Welding Machine Longitudinal Weld Seam for Hot Air Air Duct Tin Can 3
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.

Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.

Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance Spot Welding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.
