Ac Resistance Seam Welder for Ultrasonic Copper Pipe Welding

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: FN
Minimum Order Quantity: 1
Price: USD6000-USD10000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Product Name: Resistance Seam Welding Machine Type: Portable Seam Welding Machine
MOQ: 1 Set Warranty: 1 Year
Function: Pipe Welding Welding Mode: Roll Welding
Control System: Touch Screen Working Mode: Auto Seam Welder
High Light:

Ultrasonic Copper Pipe Resistance Seam Welder

,

Ac Resistance Seam Welder

,

ISO Resistance Seam Welding Machine


Product Description

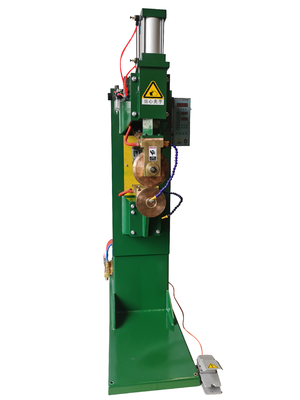

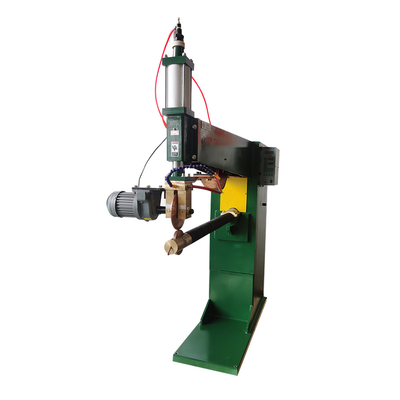

Ac Resistance Welding Ultrasonic Copper Pipe Welding Resistance Seam Welder





Seam welding machine is a resistance welding machine in which the workpiece is placed between the roller electrode or between the roller electrode and the strip electrode, continuously or intermittently rolling and intermittent or continuous application of current, forming a linear weld.





Product Description





Model Item
Unit
FN-80-H
FN-100-H
FN-160-H
FN-100-E
FN-160-E



 Rated power

KVA
80
100
160
100
160



Voltage input
V



380



 380



380



380



380





Frequency
Hz
50
50
50
50
50



Max. short circuit current
KA
26
30
40
30
40



Working stroke

  mm

100

100

100

100

100



Welding efficiency
m/min
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9



Max. force
N
6000
6000
7800
6000
7800



Max. welding capacity
mm
1.2+1.2
1.5+1.5
2.0+2.0
1.5+1.5
2.0+2.0



 Motor Power

W
550
750
750
750
400



Cooling consumption
L/min
8
8
10
8
10

Weight
Kg
380
510
630
530
700





compare with spot welding:



Seam welding machine is actually a development of resistance spot welding machine, its essence is the same as resistance spot welding machine. The difference is that spot welders usually weld only one spot at a time while seam welder is made up of overlapping joints like a sewing machine.





Ac Resistance Seam Welder for Ultrasonic Copper Pipe Welding 0





Company Information
Ac Resistance Seam Welder for Ultrasonic Copper Pipe Welding 1
Ac Resistance Seam Welder for Ultrasonic Copper Pipe Welding 2
Ac Resistance Seam Welder for Ultrasonic Copper Pipe Welding 3
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.

Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.

Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance Spot Welding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.
Certifications
Ac Resistance Seam Welder for Ultrasonic Copper Pipe Welding 4
Ac Resistance Seam Welder for Ultrasonic Copper Pipe Welding 5
Ac Resistance Seam Welder for Ultrasonic Copper Pipe Welding 6
Ac Resistance Seam Welder for Ultrasonic Copper Pipe Welding 7
Ac Resistance Seam Welder for Ultrasonic Copper Pipe Welding 8
Ac Resistance Seam Welder for Ultrasonic Copper Pipe Welding 9
Exhibition Pictures
Ac Resistance Seam Welder for Ultrasonic Copper Pipe Welding 10
Ac Resistance Seam Welder for Ultrasonic Copper Pipe Welding 11
Ac Resistance Seam Welder for Ultrasonic Copper Pipe Welding 12
Ac Resistance Seam Welder for Ultrasonic Copper Pipe Welding 13
Service
Ac Resistance Seam Welder for Ultrasonic Copper Pipe Welding 14
Ac Resistance Seam Welder for Ultrasonic Copper Pipe Welding 15
Ac Resistance Seam Welder for Ultrasonic Copper Pipe Welding 16
Our engineers were intalling portable spot welding machine in car manufacturer's workshop oversea.
Our engineers will train customer how to operate, repair and maintaining machines and so on.
