Water Tank Circular Seam Welding Machine Automatic Longitudinal Seam Welder

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: FN
Minimum Order Quantity: 1
Price: USD6000-USD10000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Product Name: Resistance Seam Welding Machine Type: Portable Seam Welding Machine
MOQ: 1 Set Warranty: 1 Year
Function: Tank Welding Welding Mode: Roll Welding
Control System: Touch Screen Working Mode: Auto Seam Welder
High Light:

Water Tank Circular Seam Welding Machine

,

Longitudinal Seam Welding Machine

,

Automatic Longitudinal Seam Welder


Product Description





Weld Water Tank Circle Seam Welding Machine Automatic Longitudinal Seam Welder





Seam welding is a metal welding that forms a permanent bond. During welding, the welding part is pressed between two welding wheels, and the rotating welding wheel drives the welding part and electrified. The welding current heats up through the local part of the welding part, forming overlapping welding spots to form continuous welds, and realizing permanent connection. Seam welder is widely used in box, such as automobile, motorcycle oil tank; Barrel body, such as oil tank and forming plate workpiece, such as rinm, muffler, radiator, etc.





Product Description





Model Item
Unit
FN-80-H
FN-100-H
FN-160-H
FN-100-E
FN-160-E



 Rated power

KVA
80
100
160
100
160



Voltage input
V



380



 380



380



380



380





Frequency
Hz
50
50
50
50
50



Max. short circuit current
KA
26
30
40
30
40



Working stroke

  mm

100

100

100

100

100



Welding efficiency
m/min
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9



Max. force
N
6000
6000
7800
6000
7800



Max. welding capacity
mm
1.2+1.2
1.5+1.5
2.0+2.0
1.5+1.5
2.0+2.0



 Motor Power

W
550
750
750
750
400



Cooling consumption
L/min
8
8
10
8
10

Weight
Kg
380
510
630
530
700





compare with spot welding:



Seam welding machine is actually a development of resistance spot welding machine, its essence is the same as resistance spot welding machine. The difference is that spot welders usually weld only one spot at a time while seam welder is made up of overlapping joints like a sewing machine.

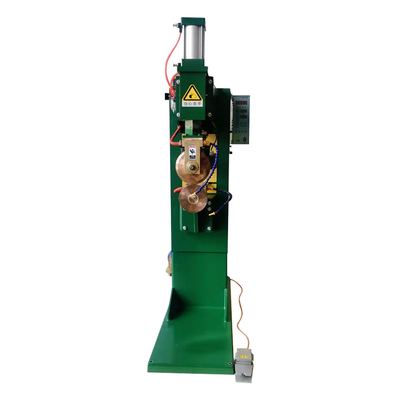

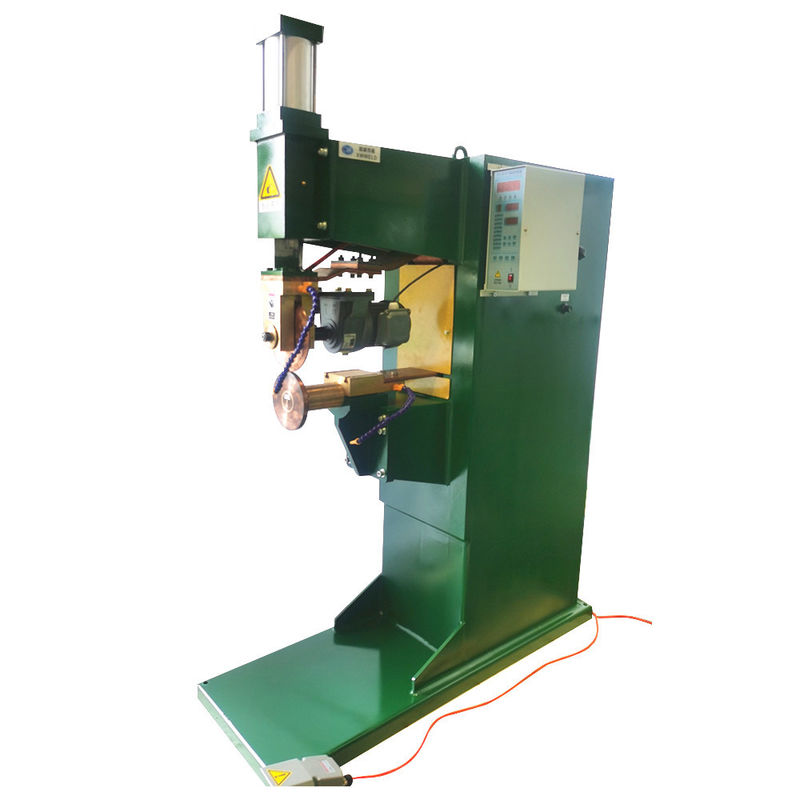

Water Tank Circular Seam Welding Machine Automatic Longitudinal Seam Welder 0Water Tank Circular Seam Welding Machine Automatic Longitudinal Seam Welder 1





Company Information
Water Tank Circular Seam Welding Machine Automatic Longitudinal Seam Welder 2
Water Tank Circular Seam Welding Machine Automatic Longitudinal Seam Welder 3
Water Tank Circular Seam Welding Machine Automatic Longitudinal Seam Welder 4
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.

Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.

Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance Spot Welding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.
Certifications
Water Tank Circular Seam Welding Machine Automatic Longitudinal Seam Welder 5
Water Tank Circular Seam Welding Machine Automatic Longitudinal Seam Welder 6
Water Tank Circular Seam Welding Machine Automatic Longitudinal Seam Welder 7
Water Tank Circular Seam Welding Machine Automatic Longitudinal Seam Welder 8
Water Tank Circular Seam Welding Machine Automatic Longitudinal Seam Welder 9
Water Tank Circular Seam Welding Machine Automatic Longitudinal Seam Welder 10
Exhibition Pictures
Water Tank Circular Seam Welding Machine Automatic Longitudinal Seam Welder 11
Water Tank Circular Seam Welding Machine Automatic Longitudinal Seam Welder 12
Water Tank Circular Seam Welding Machine Automatic Longitudinal Seam Welder 13
Water Tank Circular Seam Welding Machine Automatic Longitudinal Seam Welder 14
Service
Water Tank Circular Seam Welding Machine Automatic Longitudinal Seam Welder 15
Water Tank Circular Seam Welding Machine Automatic Longitudinal Seam Welder 16
Water Tank Circular Seam Welding Machine Automatic Longitudinal Seam Welder 17
Our engineers were intalling portable spot welding machine in car manufacturer's workshop oversea.
Our engineers will train customer how to operate, repair and maintaining machines and so on.
