| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Model Number: | DN-40, DN-63, D(T)N-80, D(T)N-100, D(T)N-125, D(T)N-125, D(T)N-200 |
| Minimum Order Quantity: | 1 |
| Price: | Steel Copper Aluminaum |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Certification: | CE | Product Name: | Spot And Projection Welder Spot Welding Machine |
|---|---|---|---|
| Application: | Metal Spot Welding | Function: | Metal Spot Welding |
| Machine Type: | Metal Spot Welding | Feature: | High Production Efficiency |
| Welding Material: | Steel Copper Aluminaum | Max. Welding Capacity: | 6+6mm |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | After Warranty Service: | Video Technical Support, Online Support And Spare Parts |

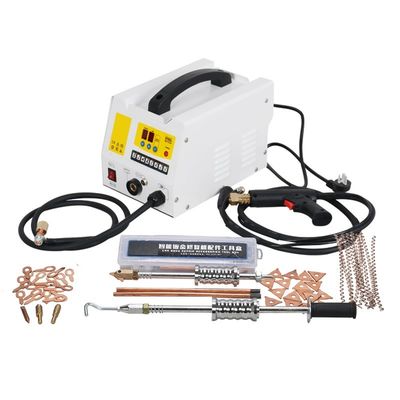

| High Light: | Paintless Car Dent Puller,Suction Cup Fixer Car Spot Welder,Multifunctional Car Spot Welder |
||
Cnc 220v Soldadura Por Punto Hand Resistance Projection Spot Welding Machine
Product Description
The metal leaf welding machine's welding action principle: Press the start button and the equipment action will be completed by the welding controller without manual intervention.Until welding point is completed. Each welding head completes projection welding of 4 welding points. A total of 8 protrusions were welded in one clamping process. Easy to ensure the welding quality of each welding point. The welding pressure and welding current of each welding head are independently adjustable.
The movement direction of each welding head is horizontal, and transverse welding points can be welded. Especially suitable for large workpieces, achieving efficient welding when installation is inconvenient.
Technical Parameters
| Item/Model | DN-40 | DN-63 | D(T)N-80 | D(T)N-100 | D(T)N-125 | D(T)N-160 | D(T)N-200 | |
| Rated power At 50% | KVA | 40 | 63 | 80 | 100 | 125 | 160 | 200 |
| Rated primary power | V | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Secondary Voltage | V | 5.2 | 6.7 | 7.9 | 8.3 | 8.6 | 9.1 | 10.6 |
| Rated frequency | HZ | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Max.Short Circuit Current | KA | 14 | 15 | 16 | 18 | 20 | 28 | 34 |
| Max. weld power | KVA | 62 | 86 | 170 | 280 | 300 | 330 | 410 |
| Throat | MM | 500 | 500 | 630 | 630 | 630 | 630 | 630 |
| Max.Froce at electrodes | N | 6000 | 6000 | 10000 | 10000 | 10000 | 12000 | 12000 |
| Working stroke | MM | 20 | 20 | 30 | 40 | 40 | 50 | 50 |
| Cooling Water Consumpion 2.5bar | L/min | 6 | 6 | 8 | 8 | 8 | 10 | 10 |
| Electrodes tlp | MM | Φ13*45 | Φ13*45 | Φ16*45 | Φ16*45 | Φ16*45 | Φ20*45 | Φ20*45 |
| Arms | MM | Φ50*150 | Φ50*150 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 |
| Projection Clamping Plate | MM | 125*125 | 125*125 | 200*200 | 200*200 | 200*200 | 200*200 | 200*200 |
| Max.Welding Capaciry A3 steel | MM | 2.5+2.5 | 3+3 | 4+4 | 4.5+4.5 | 5+5 | 5+5 | 6+6 |
Advantages
1. The main circuit adopts a water-cooled high-power thyristor module, which has strong output, stability, and reliability, and the water distributor can be installed outside the equipment;
2. All water circuit components are made of stainless steel and equipped with a visual water flow display, which is conducive to monitoring the cooling condition of the electrode head and preventing the electrode head from overheating and reducing its lifespan; The main water inlet is equipped with a water filter to prevent water blockage.
3. The operation is controlled by a manual switch or foot switch, which has high production efficiency and low labor intensity. And facilitate the operating habits of operators.
4. The equipment has air and water pressure switches and alarms. It can effectively prevent water or gas shortage during welding, thereby protecting the safety of equipment use.
Product Structure
Images
Application
