Place of Origin: | China |
---|---|
Brand Name: | XWH |
Certification: | CE |
Model Number: | DN(B)-160, DN(B)-200, DN(B)-250 |
Minimum Order Quantity: | 1 |
Price: | USD30000-USD40000 |
Packaging Details: | Wooden Case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50 sets/month |
Product Name: | Multi-Electrode Resistance Welding Machine | Application: | Fuel Tank Welding Machine |
---|---|---|---|
Function: | Resistance Spot Welding | Machine Type: | Resiatance Welding Machine |
Keyword: | Multi Head Spot Welding Machine | Welding Material: | Alloy Metal Aluminum Stainless Steel |
Feature: | High Efficiency | Warranty: | 12 Months Guarantee |
After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
Highlight: | Suction Car Dent Remover Machine,1.2mm Body Panel Spot Welder,6800A Car Dent Puller |

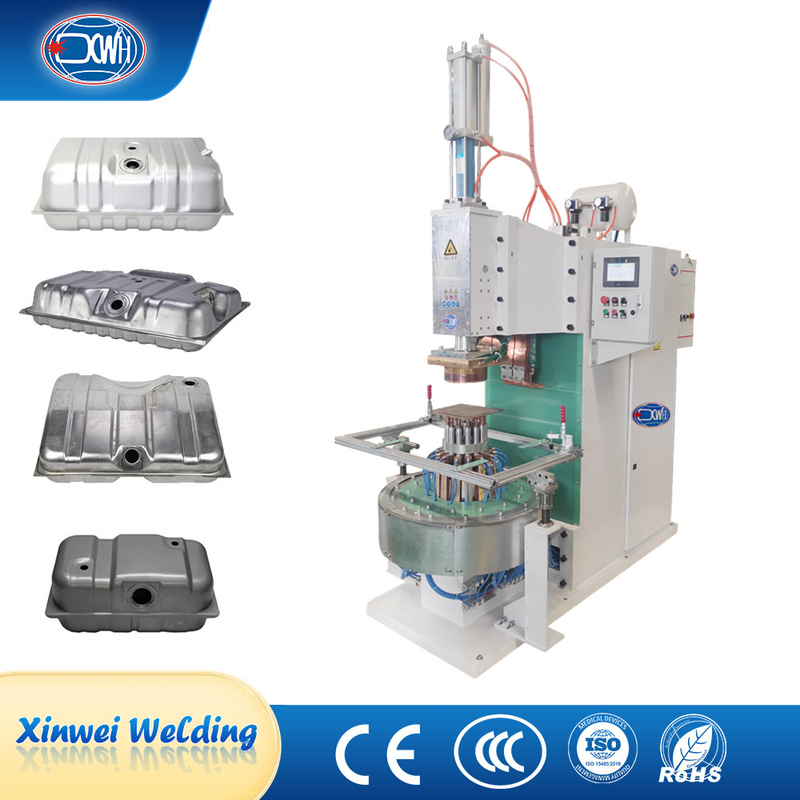

Stainless Steel Multi-Spot Multi Spot Welder Aluminum Fuel Tank Welding Machine
Product Introduction:

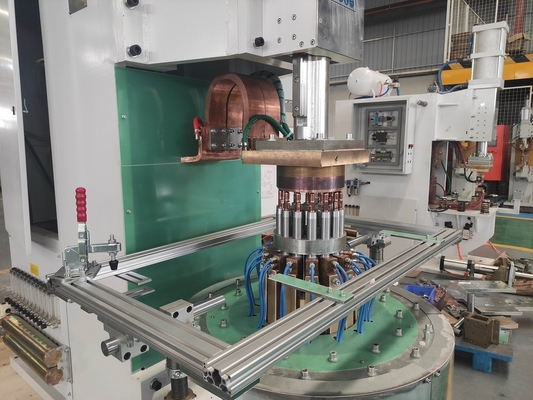

Platform type spot welding machine is mainly designed for large metal workpieces in industries such as hardware, sheet metal, elevators, kitchenware, and automobiles.
Advantages:
1. The overall structure has a unique style and is commonly used in welding operations of automotive fuel tanks. The body is designed for impact resistance, seismic resistance, and high rigidity, and is finely processed by machinery to meet the installation and load strength of various components. Multiple reinforcement ribs have been welded inside the frame to ensure the rigidity of the equipment and minimal deformation during the welding process, ensuring the stability of welding and the safety of manual use.
2. The upper electrode is pressurized by an auxiliary cylinder, which makes stroke adjustment convenient and accurate, making the workpiece operation stroke continuously adjustable.
3. The spare dedicated gas storage tank for welding machines is beneficial for reducing welding pressure fluctuations and ensuring stable welding force.
Technical Parameters:
Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
Rated power (KVA) | 100 | 160 | 200 | 250 |
Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
Max. force (N) | 6000 | 6000 | 10000 | 15000 |
Electrode length(MM) | 450 | 450 | 450 | 500 |
Working stroke(MM) | 80 | 80 | 80 | 80 |
Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
General Structures:
Workpiece:
Production Line:
Application:
FAQ:
