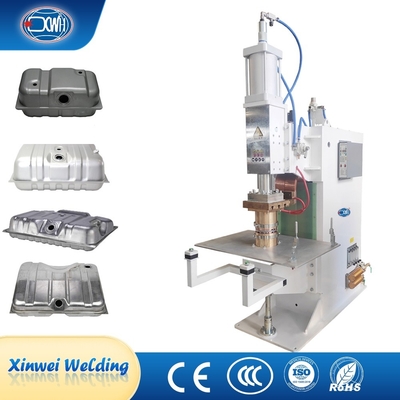

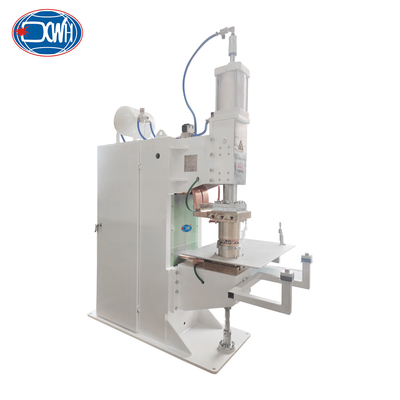

Industrial Welding Equipment Multi Spot Welder Welding Machine For Car Fuel Tank

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DN-40, DN-63, D(T)N-80, D(T)N-100, D(T)N-125, D(T)N-125, D(T)N-200
Minimum Order Quantity: 1
Price: USD29000-USD39000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/month
Detail Information
Product Name: Projection Welding Machine Application: Welding Fuel Tank
Welding Type: Resistance AC Welding Machine Type: Manual Spot Welding Machine
Feature: Stationary Welding Machine Advantage: Welding Firmly
Welding Material: Steel Copper Aluminum After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training
After Warranty Service: Video Technical Support, Online Support And Spare Parts Certification: CE
High Light:

Body Repair Spot Puller Welder

,

Spot Puller Welder Car Denting Machine

,

Harbor Freight Dent Puller


Product Description





 Industrial Welding Equipment Multi Spot Welder Welding Machine For Car Fuel Tank



Product Introduction


The multi head spot welding machine is working on the 380V/50Hz three-phase AC power supply. By the three-phase rectifier, inverter technology and the feedback control system, to control the welding heat, pre-press time, the maintenance time and cease time, achieving the welding requirements. The welding machine is widely used in automobile, home appliances, electronic instrumentation, aerospace and other projection welding process industry.




Technical Parameters


Item/Model   DN-40 DN-63 D(T)N-80 D(T)N-100 D(T)N-125 D(T)N-160 D(T)N-200
Rated power At 50% KVA 40 63 80 100 125 160 200
Rated primary power V 380 380 380 380 380 380 380
Secondary Voltage V 5.2 6.7 7.9 8.3 8.6 9.1 10.6
Rated frequency HZ 50/60 50/60 50/60 50/60 50/60 50/60 50/60
Max.Short Circuit Current KA 14 15 16 18 20 28 34
Max. weld power KVA 62 86 170 280 300 330 410
Throat MM 500 500 630 630 630 630 630
Max.Froce at electrodes N 6000 6000 10000 10000 10000 12000 12000
Working stroke MM 20 20 30 40 40 50 50
Cooling Water Consumpion 2.5bar L/min 6 6 8 8 8 10 10
Electrodes tlp MM Φ13*45 Φ13*45 Φ16*45 Φ16*45 Φ16*45 Φ20*45 Φ20*45
Arms MM Φ50*150 Φ50*150 Φ80*220 Φ80*220 Φ80*220 Φ80*220 Φ80*220
Projection Clamping Plate MM 125*125 125*125 200*200 200*200 200*200 200*200 200*200

Max.Welding Capaciry A3 steel

MM 2.5+2.5 3+3 4+4 4.5+4.5 5+5 5+5 6+6





Advantages



1. Stable machine structure upside and downside of electrodes apply the pressure mode with assistant stroke. The welding efficiency is much higher.



2. The transformer of welding machine adopts the special resistance welding machine, the silicon steel slice is featured of high magnetic: the inner water- cooled by force; stronger power and high duty ratio.



3. Controlled by micro-computer and can saved at most 16 sets of welding settings, which is quite convenient for different kinds of welding sheets.



4. Widely used in aerospace, automobile and automobile parts manufacturing, new energy and power battery and other special areas of high quality welding requirements.





Operating Steps



Step 1: Place the snap ring into the lower electrode and positioning ring;



Step 2: Place the upper shell into the lower electrode and positioning ring;



Step 3: Press the manual start button or step on the foot switch, the upper electrode will fall freely, the automatic welding is completed, and the upper electrode will rise automatically;



Step 4: Remove the workpiece.





Major Structure



Industrial Welding Equipment Multi Spot Welder Welding Machine For Car Fuel Tank 0



Industrial Welding Equipment Multi Spot Welder Welding Machine For Car Fuel Tank 1





Reference Pictures



Industrial Welding Equipment Multi Spot Welder Welding Machine For Car Fuel Tank 2




Application

Industrial Welding Equipment Multi Spot Welder Welding Machine For Car Fuel Tank 3
Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.


Industrial Welding Equipment Multi Spot Welder Welding Machine For Car Fuel Tank 4
Industrial Welding Equipment Multi Spot Welder Welding Machine For Car Fuel Tank 5
Industrial Welding Equipment Multi Spot Welder Welding Machine For Car Fuel Tank 6
Industrial Welding Equipment Multi Spot Welder Welding Machine For Car Fuel Tank 7

Industrial Welding Equipment Multi Spot Welder Welding Machine For Car Fuel Tank 8
