| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE, ISO |
| Model Number: | XW-1000W, XW-1500W, XW-2000W |
| Minimum Order Quantity: | 1 |
| Price: | USD3500-USD7500 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |
| Product Name: | Small Laser Welding Machine | Welding Material: | Aluminum, Stainless Steel, Metal Steel |
|---|---|---|---|
| MOQ: | 1 Set | Application: | Fiber Laser Welding |
| Cooling System: | Build-In Water Cooling | Function: | Laser Welding, Cutting And Rusts Removal |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| High Light: | Aluminium Cnc Laser Welding Machine,Fiber Lightweld Laser Welder,1500W Laser Welding Machine |
||

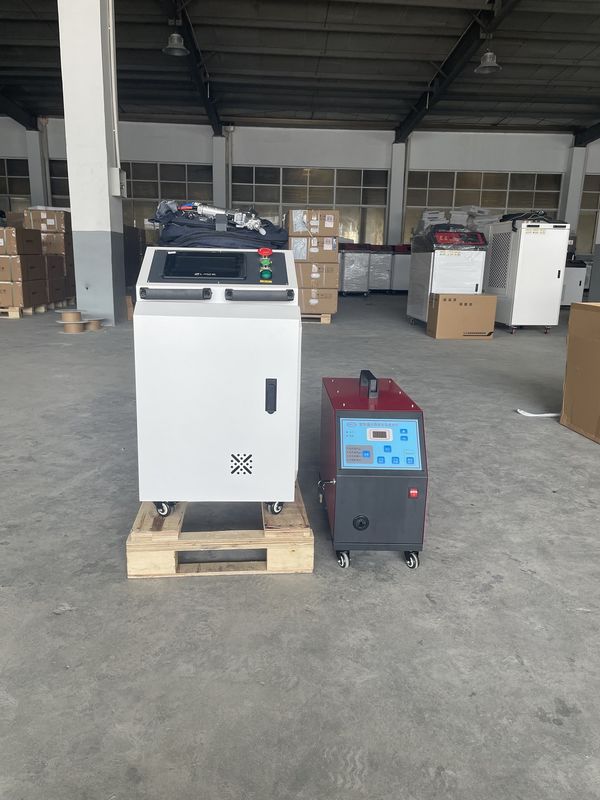

Fiber Lightweld 1500 Aluminium Cnc Laser Welding Machine Price For Sale Near Me
Product Description
Portable laser welding machine is a new type of welding, is also one of the important aspects of the application of laser material processing technology. Laser welding is mainly for the welding of thin-walled materials and precision parts. The welding process belongs to the heat conduction type, that is, laser radiation heats workpiece surface and surface heat diffuses to the interior through heat conduction. By controlling the parameters of laser pulse width, energy, peak power and repetition rate, the workpiece is melted to form a specific molten pool. The laser welder is not only for laser welding, but also for rusts removal and cutting.
Technical Parameters
| ItemsModels | XW-1000W | XW-1500W | XW-2000W |
| Laser Power | 1000W | 1500W | 2000W |
| Laser Length | Customized | Customized | Customized |
| Total Power | ≤6KW | ≤7KW | ≤9KW |
| Conduction Types | Optical Fiber | Optical Fiber | Optical Fiber |
| Output Mode | Standard QBH | Standard QBH | Standard QBH |
| Laser Line | 1080±nm | 1080±nm | 1080±nm |
| Power Supply | 220V±10% AC | 220V±10% AC | 220V±10% AC |
| Working Humidity | <70% No Condensation | <70% No Condensation | <70% No Condensation |
| Working Temperature | -10℃-45℃ | -10℃-45℃ | -10℃-45℃ |
| Cooling System | Industrial Chiller | Industrial Chiller | Industrial Chiller |
| Welding speed | 0.7-2.0m/min | 0.7-2.0m/min | 0.7-2.0m/min |
| Operation System | Hand-held Welding | Hand-held Welding | Hand-held Welding |
| Standard Output | ±2% | ±2% | ±2% |
| Weight | ≤185KG | ≤185KG | ≤185KG |
| Power Source | 220V/50Hz/40A | 220V/50Hz/60A | 380V/50Hz/60A |
| Dimension | 1000*600*1200mm | 1000*600*1200mm | 1000*600*1200mm |
Advantages
1. Weld width is adjustable and wire feeding welding is automatic.
2. It is 5-10 times faster than traditional welding and argon arc welding processes.
3. Beautiful weld, no deformation, no blackening, no need to polish.
4. Outdoor welding, casters moving.
5. Long distance welding and any angle/shape welding.
6.There is no need for professional welders, ordinary people can weld beautiful workpiece.
7.Welding materials: stainless steel, carbon steel, galvanized sheet and other metals.
Schematic Diagram of Product Structure
①Hand held welding joint ②Consumable accessories kit
③Control Panel④Optical Master⑤Wire Feeder ⑥Consumable accessories kit
⑦Emergency Stop Switch, Key Switch, Power Button ⑧Conducting Wire
Boot Sequence
①First open the air switch of the machine(the switch is at the top left of the rear side of the machine)
② Press the power button to turn on the laser
Note: The red button on the left is the emergency stop button(Press this button quickly can achieve protective measures).
Application
