Mini Aluminum Fiber Laser Welding Machine Handheld Portable

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE, ISO
Model Number: XW-1000W, XW-1500W, XW-2000W, XW-3000W
Minimum Order Quantity: 1
Price: USD5000-USD10000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Product Name: Handheld Fiber Laser Welding Machine Welding Material: Aluminum, Stainless Steel, Metal Steel
MOQ: 1 Set Application: Fiber Laser Welding And Cutting Machine
Cooling System: Build-In Water Cooling Function: Laser Welding, Cutting And Rusts Removal
After Warranty Service: Video Technical Support, Online Support And Spare Parts After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training
High Light:

Mini Fiber Laser Welding Machine

,

50Hz Fiber Laser Welding Machine

,

Water Cooling Handheld Laser Welder


Product Description



Mini Hand Held Aluminum Handheld Portable Fiber Laser Welding Machine For Sale



Product Description

Portable laser welding machine is a new type of welding, is also one of the important aspects of the application of laser material processing technology. Laser welding is mainly for the welding of thin-walled materials and precision parts. The welding process belongs to the heat conduction type, that is, laser radiation heats workpiece surface and surface heat diffuses to the interior through heat conduction. By controlling the parameters of laser pulse width, energy, peak power and repetition rate, the workpiece is melted to form a specific molten pool. The laser welder is not only for laser welding, but also for rusts removal and cutting.



Technical Parameters



Items/ Models XW-1000W XW-1500W XW-2000W XW-3000W
Laser Power 1000W 1500 2000W 3000W
Laser Length Customized Customized Customized Customized
Total Power ≤6KW ≤7KW ≤9KW ≤9.5KW
Conduction Types Optical Fiber Optical Fiber Optical Fiber Optical Fiber
Output Mode Standard QBH Standard QBH Standard QBH Standard QBH
Laser Line 1080±nm 1080±nm 1080±nm 1080±nm
Power Supply 220V±10% AC ±10% AC 220V±10% AC 380V±10% AC
Working Humidity <70% No Condensation <70% No Condensation <70% No Condensation <70% No Condensation
Working Temperature -10℃-45℃ -10℃-45℃ -10℃-45℃ -10℃-45℃
Cooling System Equipped with water chiller Equipped with water chiller Equipped with water chiller Equipped with water chiller
Welding speed 0.7-2.0m/min 0.7-2.0m/min 0.7-2.0m/min 0.7-2.0m/min
Operation System Hand-held Welding Hand-held Welding Hand-held Welding Hand-held Welding
Weight ≤185KG ≤185KG ≤185KG ≤185KG
Power Source 380V/50Hz/40A 380V/50Hz 380V/50Hz 380V/50Hz
homing position Red light indicator Red light indicator Red light indicator Red light indicator
Dimension 1000*600*1200mm 1000*600*1200mm 1000*600*1200mm 1000*600*1200mm




Advantages



1. Handheld welding gun head: portable and flexible, flexibly welding at any angle.

2. Full automatic wire feeder: speed is adjustable and welding wire is compatible (0.8mm/1.0mm 1.2mm/1.6mm).

3. Touch screen: clear functions, easy to operate.

4. Constant temperature water chiller: built-in water chiller to avoid wire bondage, with good dust-proof and anti condensation effect.

5. It is mainly used for the welding of aluminum sheet, iron sheet, stainless steel sheet, copper sheet and other metal sheets of the same material, as well as the mixed welding of aluminum copper, stainless steel copper and other materials.





Products Show

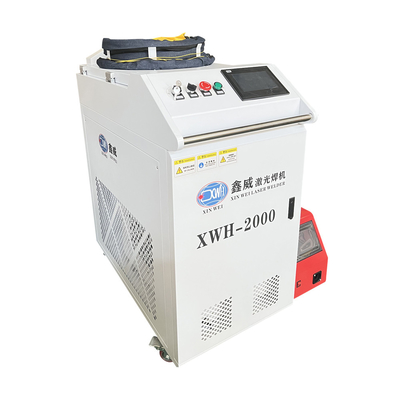

Mini Aluminum Fiber Laser Welding Machine Handheld Portable 0

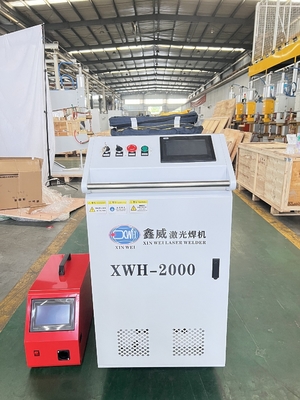

Mini Aluminum Fiber Laser Welding Machine Handheld Portable 1





Detials



Mini Aluminum Fiber Laser Welding Machine Handheld Portable 2

Handheld welding gun head



Mini Aluminum Fiber Laser Welding Machine Handheld Portable 3

Full automatic wire feeder



Mini Aluminum Fiber Laser Welding Machine Handheld Portable 4

Touch screen



Mini Aluminum Fiber Laser Welding Machine Handheld Portable 5

Constant temperature water chiller




Application

Mini Aluminum Fiber Laser Welding Machine Handheld Portable 6

Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
