|Place of Origin:||China|
|Model Number:||XW-1000W, XW-1500W, XW-2000W, XW-3000W|
|Minimum Order Quantity:||1|
|Packaging Details:||Wooden Case|
|Delivery Time:||15 working days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||500 sets/month|
|Product Name:||Portable Fiber Laser Welding Machine||Welding Material:||Aluminum, Stainless Steel, Metal Steel|
|MOQ:||1 Set||Application:||Fiber Laser Welding, Cutting And Rusts Removal|
|Cooling System:||Build-In Water Cooling||Function:||Laser Welding, Cutting And Rusts Removal|
|After Warranty Service:||Video Technical Support, Online Support And Spare Parts||After-sales Service Provided:||Free Spare Parts, Field Installation, Commissioning And Training|
Brass Handheld Laser Welder,
1000w Handheld Laser Welder,
Manual Ss Laser Welder Machine

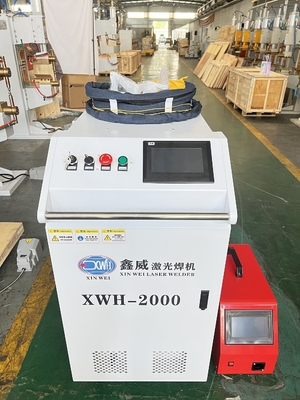

Buy Industrial Manual Best Ss 1000w Brass Cheap Handheld Laser Welder For Sale
Portable laser welding machine is a new type of welding, is also one of the important aspects of the application of laser material processing technology. Laser welding is mainly for the welding of thin-walled materials and precision parts. The welding process belongs to the heat conduction type, that is, laser radiation heats workpiece surface and surface heat diffuses to the interior through heat conduction. By controlling the parameters of laser pulse width, energy, peak power and repetition rate, the workpiece is melted to form a specific molten pool. The laser welder is not only for laser welding, but also for rusts removal and cutting.
|Conduction Types||Optical Fiber||Optical Fiber||Optical Fiber||Optical Fiber|
|Output Mode||Standard QBH||Standard QBH||Standard QBH||Standard QBH|
|Power Supply||220V±10% AC||220V±10% AC||220V±10% AC||380V±10% AC|
|Working Humidity||<70% No Condensation||<70% No Condensation||<70% No Condensation||<70% No Condensation|
|Cooling System||Equipped with water chiller||Equipped with water chiller||Equipped with water chiller||Equipped with water chiller|
|Operation System||Hand-held Welding||Hand-held Welding||Hand-held Welding||Hand-held Welding|
|homing position||Red light indicator||Red light indicator||Red light indicator||Red light indicator|
1. The welded joint is beautiful and smooth.
2. The welding work surface is not distorted, the welding is firm, and there is no need for subsequent polishing procedures, which saves time and price.
3. Faster welds can be 2 to 10 times faster than conventional welds.
4. Easy to operate, no training required.
5. The welding joint is smooth and beautiful, which can save your time.
6. No distortion or welding marks on the work surface.
7. Laser welding less consumables, long service life. It's safer and greener.
6. Application industry: automobile industry, aerospace industry, assembly and manufacturing industry, engineering and IT department, construction industry.
Schematic Diagram of Product Structure
①Hand held welding joint ②Consumable accessories kit
③Control Panel④Optical Master ⑤Wire Feeder ⑥Consumable accessories kit
⑦Emergency Stop Switch, Key Switch, Power Button ⑧Conducting Wire
Handheld welding gun head
Full automatic wire feeder

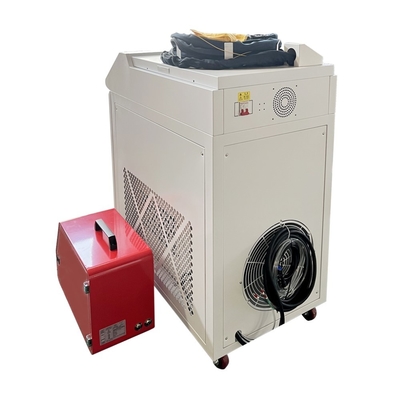

Constant temperature water chiller
How do you use a hand-held laser welder?
① The first step is to turn on the engine. Make sure to connect it with the appropriate voltage required by the machine.
② Activate the emergency stop button and the laser generator button. This will open the screen or interface.
③ Activate laser source and water cooler/cooler.
④ Use the interface to specify power, mode and speed according to the thickness of the material.
⑤ Grasp the laser welder and adjust the focal length of the nozzle.
⑥ Test it with scrap to see if the specification is correct.
