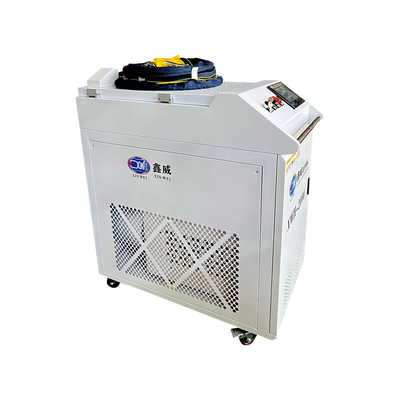

Small Metal Handheld Fiber Laser Welding Cutting Machine 1kw 1000w

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE, ISO
Model Number: XW-1000W, XW-1500W, XW-2000W, XW-3000W
Minimum Order Quantity: 1
Price: USD5000-USD10000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Product Name: Handheld Portable Fiber Laser Welding Machine Welding Material: Aluminum, Stainless Steel, Metal Steel
MOQ: 1 Set Application: Fiber Laser Welding, Cutting And Rusts Removal
Cooling System: Build-In Water Cooling Function: Laser Welding, Cutting And Rusts Removal
After Warranty Service: Video Technical Support, Online Support And Spare Parts After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training
High Light:

Fiber Laser Welding Cutting Machine

,

1kw Laser Welding Cutting Machine

,

Handheld Laser Welder Machine 1000w


Product Description



Prize Small 1kw 1000w Metal Handheld Fiber Laser Welding And Cutting Machine



Product Description


The hand-held optical fiber laser welding machine is a new generation of laser welding equipment, which belongs to non-contact welding. The operation process does not require pressurization. Its working principle is to directly irradiate the laser beam with high energy intensity on the surface of the material. Through the interaction between the laser and the material, the material is melted inside, and then cooled and crystallized to form a weld.

The hand-held optical fiber laser welding machine fills the gap of hand-held welding in the laser equipment industry, subverting the traditional working mode of the laser welding machine. The hand-held laser welding machine replaces the fixed optical path before, which is flexible, convenient and has a long welding distance, making it possible to operate the laser welding outdoors.




 Technical Parameters



Items/ Models XW-1000W XW-1500W XW-2000W XW-3000W
Laser Power 1000W 1500 2000W 3000W
Laser Length Customized Customized Customized Customized
Total Power ≤6KW ≤7KW ≤9KW ≤9.5KW
Conduction Types Optical Fiber Optical Fiber Optical Fiber Optical Fiber
Output Mode Standard QBH Standard QBH Standard QBH Standard QBH
Laser Line 1080±nm 1080±nm 1080±nm 1080±nm
Power Supply 220V±10% AC 220V±10% AC 220V±10% AC 380V±10% AC
Working Humidity <70% No Condensation <70% No Condensation <70% No Condensation <70% No Condensation
Working Temperature -10℃-45℃ -10℃-45℃ -10℃-45℃ -10℃-45℃
Cooling System Equipped with water chiller Equipped with water chiller Equipped with water chiller Equipped with water chiller
Welding speed 0.7-2.0m/min 0.7-2.0m/min 0.7-2.0m/min 0.7-2.0m/min
Operation System Hand-held Welding Hand-held Welding Hand-held Welding Hand-held Welding
Weight ≤185KG ≤185KG ≤185KG ≤185KG
Power Source 380V/50Hz/40A 380V/50Hz 380V/50Hz 380V/50Hz
homing position Red light indicator Red light indicator Red light indicator Red light indicator
Dimension 1000*600*1200mm 1000*600*1200mm 1000*600*1200mm 1000*600*1200mm




Advantages


1. Highest and highest accuracy and precision
The main advantage you may gain is the accuracy of welding. Laser welding is not a problem even if you are welding small parts and assemblies.
2. Weld consistency
Since you manually set the speed, power and mode, even if you need to weld a large number of workpieces, you can expect the welds to be consistent.
3. Ability to create and produce complex welds
Some welding techniques, such as MIG welding and TIG welding, are not suitable for complex welding. This is because the available electrodes are limited. At that time, laser welding had risen to a higher level. No matter how complex a weld looks, laser welding can be realized.
4. The weld is more durable
Stronger welding is possible. You do not need welding filler materials, which can provide excellent strength and durability.





Schematic Diagram of Product Structure



Small Metal Handheld Fiber Laser Welding Cutting Machine 1kw 1000w 0





①Hand held welding joint                                                                             ②Consumable accessories kit

③Control Panel④Optical Master               ⑤Wire Feeder                            ⑥Consumable accessories kit

⑦Emergency Stop Switch, Key Switch, Power Button                                 ⑧Conducting Wire




Details



Small Metal Handheld Fiber Laser Welding Cutting Machine 1kw 1000w 1

Handheld welding gun head



Small Metal Handheld Fiber Laser Welding Cutting Machine 1kw 1000w 2

Full automatic wire feeder



Small Metal Handheld Fiber Laser Welding Cutting Machine 1kw 1000w 3

Touch screen



Small Metal Handheld Fiber Laser Welding Cutting Machine 1kw 1000w 4

Constant temperature water chiller





How do you use a hand-held laser welder?



① The first step is to turn on the engine. Make sure to connect it with the appropriate voltage required by the machine.

② Activate the emergency stop button and the laser generator button. This will open the screen or interface.

③ Activate laser source and water cooler/cooler.

④ Use the interface to specify power, mode and speed according to the thickness of the material.

⑤ Grasp the laser welder and adjust the focal length of the nozzle.

⑥ Test it with scrap to see if the specification is correct.





Application



Small Metal Handheld Fiber Laser Welding Cutting Machine 1kw 1000w 5

Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.


Small Metal Handheld Fiber Laser Welding Cutting Machine 1kw 1000w 6
Small Metal Handheld Fiber Laser Welding Cutting Machine 1kw 1000w 7
Small Metal Handheld Fiber Laser Welding Cutting Machine 1kw 1000w 8
Small Metal Handheld Fiber Laser Welding Cutting Machine 1kw 1000w 9

Small Metal Handheld Fiber Laser Welding Cutting Machine 1kw 1000w 10
