High Frequency Aluminum Inverter Iron Welder Welding Machine Spot Welders

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: D(N)B--160, D(N)B--200, D(N)B--250
Minimum Order Quantity: 1
Price: USD35000-USD40000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/month
Detail Information
Product Name: Fire-proof Door Stationary Spot Welders Welding Material: Aluminum, Stainless Steel, Metal Steel
Function: Spot Weldinng Machine Type: Resistance Welding Machine
Type: Full-automatic MOQ: 1 Set
After Warranty Service: Video Technical Support, Online Support And Spare Parts After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training
High Light:

Aluminum Inverter Iron Welder

,

AC380V Spot Welders


Product Description



High Freqauency Aluminum Inverter Iron Welder Welding Machine Spot Welders



Product Description

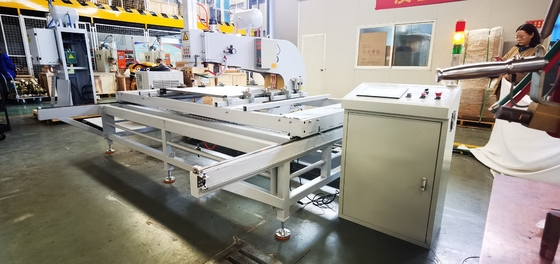

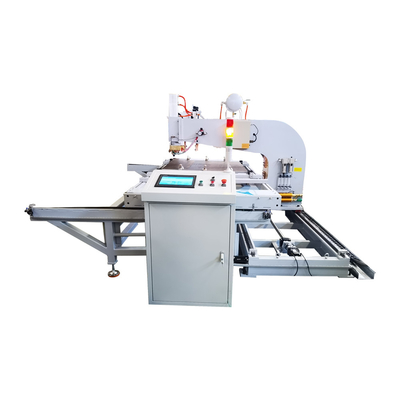

The spot welding machine is customized for fire-proof door. The welding machine is composed of rack, workpiece moving platform, welding machine moving mechanism, upper and lower electrodes, welding transformer, welding machine controller, PLC controller, air circuit system, cooling water circuit system and other components.



Technical Parameters




Models/Item D(N)B--160 D(N)B--200 D(N)B--250
Rated power (KVA) 160 200 250
Power input(V) 3φAC 380V 3φAC 380V 3φAC 380V
Max. short circuit current(KA) 40 40 45
Max. force (N) 6000 10000 15000
Electrode length(MM) 450 450 500
Working stroke(MM) 80 80 80
Cooling consumption(L/min) 20 20 20
Max.welding capacity(MM) 4.0+4.0 5.0+5.0 6.0+6.0





Advantages



1. The body of the stationary spot welding machine is cast by the thickened steel plate, and the body is stable.



2. The upper and lower electrodes are made of highly conductive materials with auxiliary pressure, which has good welding effect and high efficiency. The internal water cooling system can reduce the welding temperature.



3. Spot welder can store up to 15 groups of welding modes, which can meet the requirements of different workpieces.



4. D(T)N series fixed spot welder can weld plate, nut, steel bar, metal wire, etc.





Product Structure

High Frequency Aluminum Inverter Iron Welder Welding Machine Spot Welders 0

Installation of Welding Machine



1. The welding machine shall be placed on a firm and stable ground;

2. The welding machine is powered by the AC 380V power supply network, and three white power incoming lines are connected to the distribution switch of the power supply network in the phase sequence from left to right R.S.T;

3. Connect one end of two conductors with a section of no less than 10mm2 to the machine body and the other end to the control box. The other end of these two conductors must be reliably grounded;





Images



High Frequency Aluminum Inverter Iron Welder Welding Machine Spot Welders 1



High Frequency Aluminum Inverter Iron Welder Welding Machine Spot Welders 2




Application


High Frequency Aluminum Inverter Iron Welder Welding Machine Spot Welders 3


Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
