Automatic Robotic Inverter Aluminium Spot Welding Machine Spot Welder

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: D(N)B--160, D(N)B--200, D(N)B--250
Minimum Order Quantity: 1
Price: USD35000-USD40000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/month
Detail Information
Product Name: Fire-proof Door Stationary Spot Welders Welding Material: Aluminum, Stainless Steel, Metal Steel
Feature: Projection Spot Welding Machine Type: AC Projection
Type: Full-automatic MOQ: 1 Set
After Warranty Service: Video Technical Support, Online Support And Spare Parts After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training
High Light:

200kva Aluminium Spot Welding Machine

,

Automatic Robotic Inverter Spot Welder


Product Description



Automatic Robotic Inverter Aluminium Spot Welding Machine Spot Welder Machine



Product Description

The stationary spot welding machine is customized for fire-proof door. The welding machine is composed of rack, workpiece moving platform, welding machine moving mechanism, upper and lower electrodes, welding transformer, welding machine controller, PLC controller, air circuit system, cooling water circuit system and other components.



Technical Parameters




Models/Item D(N)B--160 D(N)B--200 D(N)B--250
Rated power (KVA) 160 200 250
Power input(V) 3φAC 380V 3φAC 380V 3φAC 380V
Max. short circuit current(KA) 40 40 45
Max. force (N) 6000 10000 15000
Electrode length(MM) 450 450 500
Working stroke(MM) 80 80 80
Cooling consumption(L/min) 20 20 20
Max.welding capacity(MM) 4.0+4.0 5.0+5.0 6.0+6.0





Advantages



1. Stable machine structure upside and downside of electrodes apply the pressure mode with assistant stroke. The welding efficiency is much higher.



2. The transformer of welding machine adopts the special resistance welding machine, the silicon steel slice is featured of high magnetic: the inner water- cooled by force; stronger power and high duty ratio.



3. Controlled by micro-computer and can saved at most 16 sets of welding settings, which is quite convenient for different kinds of welding sheets.



4. Can widely used in nut, studs, traffic tools, household items, cars. And it can be welded low-carbon steel, stainless steel, coated steel, non-ferrous metal wire, sheet, pipe, etc.





Product Structure

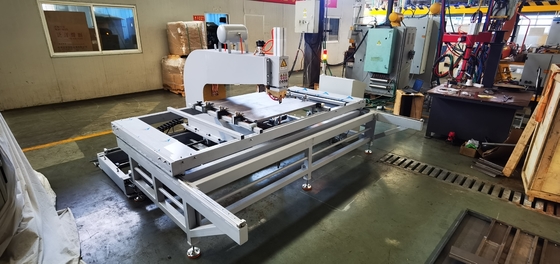

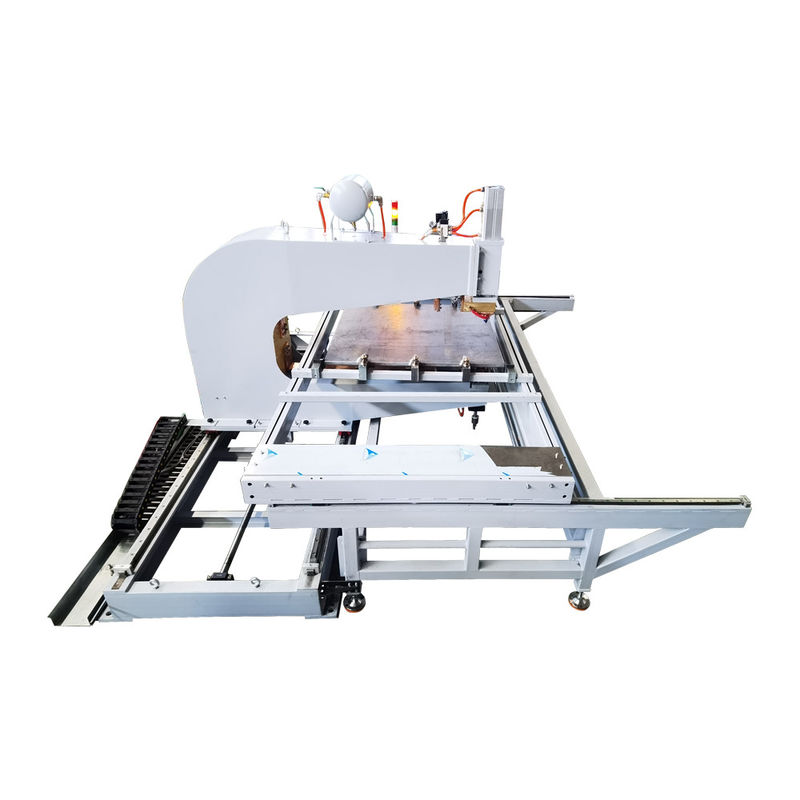

Automatic Robotic Inverter Aluminium Spot Welding Machine Spot Welder 0

Automatic Robotic Inverter Aluminium Spot Welding Machine Spot Welder 1

Installation of Welding Machine



1. Connect the water inlet pipe and outlet pipe to the cooling water inlet and outlet of the water-cooled diverter at the lower left side of the fuselage. The water pipe interface must be tightened to avoid water leakage. The water inlet and outlet pipes cannot be adjusted;



2. Clean the air path before connecting the air hose to prevent metal fragments or other impurities from remaining in the air path. Connect the air outlet of the air compressor with the air inlet on the right side of the welding machine body with the air hose;



Images



Automatic Robotic Inverter Aluminium Spot Welding Machine Spot Welder 2



Automatic Robotic Inverter Aluminium Spot Welding Machine Spot Welder 3




Application


Automatic Robotic Inverter Aluminium Spot Welding Machine Spot Welder 4


Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
