| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | D(N)B--160, D(N)B--200, D(N)B--250 |
| Minimum Order Quantity: | 1 |
| Price: | USD35000-USD40000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Product Name: | Full Automatic Fire-proof Door Stationary Spot Welders | Welding Material: | Aluminum, Stainless Steel, Metal Steel |
|---|---|---|---|
| Feature: | High Frequency Inverter DC Output | Machine Type: | Automatic Double-side Welding |
| Type: | Touch Screen Control | MOQ: | 1 Set |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| High Light: | Inverter Cnc Resistance Welders,Ss Point Welding Machine |
||
Inverter Cnc Resistance Welders Point Welding Welder Machine Welder Spot Welding
Product Description

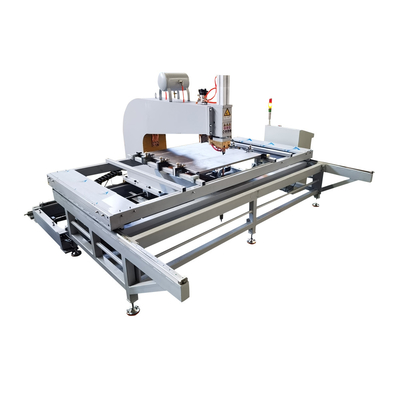

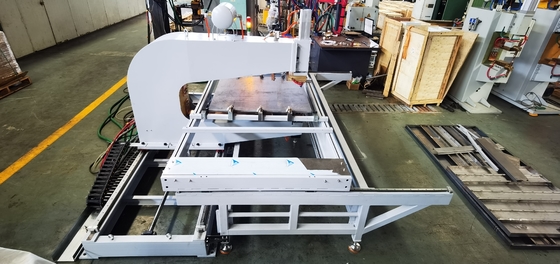

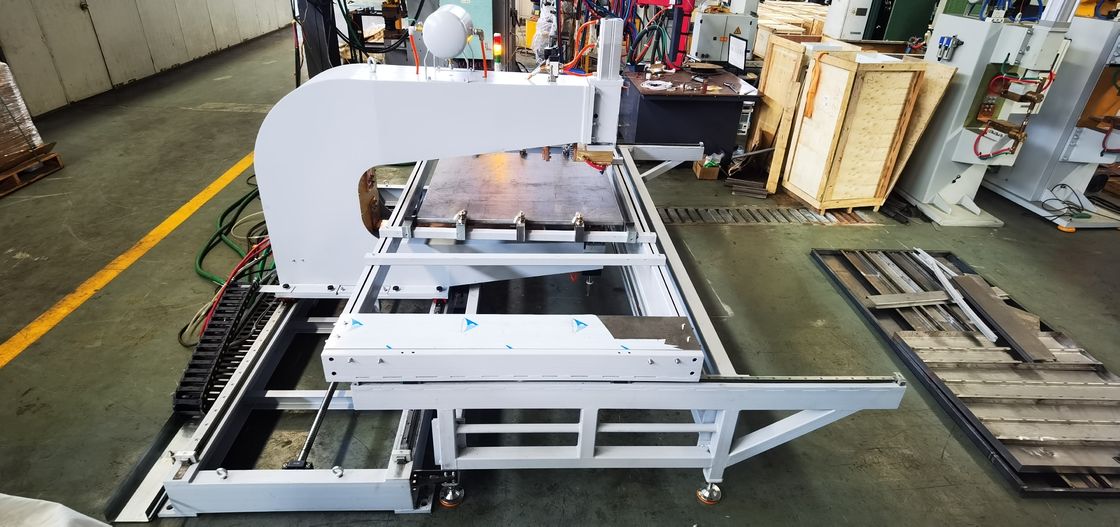

The stationary spot welding machine is customized for fire-proof door. The welding machine is composed of rack, workpiece moving platform, welding machine moving mechanism, upper and lower electrodes, welding transformer, welding machine controller, PLC controller, air circuit system, cooling water circuit system and other components.
Technical Parameters
| Models/Item | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 40 | 40 | 45 |
| Max. force (N) | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 |
| Max.welding capacity(MM) | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
1. Stable machine structure upside and downside of electrodes apply the pressure mode with assistant stroke. The welding efficiency is much higher.
2. The transformer of welding machine adopts the special resistance welding machine, the silicon steel slice is featured of high magnetic: the inner water- cooled by force; stronger power and high duty ratio.
3. Controlled by micro-computer and can saved at most 16 sets of welding settings, which is quite convenient for different kinds of welding sheets.
4. Can widely used in nut, studs, traffic tools, household items, cars. And it can be welded low-carbon steel, stainless steel, coated steel, non-ferrous metal wire, sheet, pipe, etc.
Working Principle
Install the workpiece: the rear positioning block and the right positioning block are used as the reference positioning block. To adjust, the motor zero point needs to be corrected. Other positioning blocks can be adjusted close to the workpiece. The side floating positioning block clamps the framework of the workpiece and the panel together to avoid the displacement of the welding spot. (The manual clamping screw fixes the workpiece on the side floating positioning block).
Welding: after the start (automatic) switch is pressed, the program automatically controls the action of the equipment to complete the product until the stop button is pressed.
Electrode Finishing
The electrode tip must be kept smooth and clean. If the electrode is worn or the surface is damaged after a certain period of use, it can be smoothed with a copper wire brush, a high-quality fine file or sandpaper. The specific methods are as follows:
Place the fine grain flat file between the upper and lower electric levels, place the function selection knob at the "air valve" position, make the electrode clamp the file, turn the file back and forth in the horizontal direction, release the air valve and reset the upper electrode after the indirect contact surface of the two electrodes is smoothed;
Grind the contact surface of the electrode with fine sandpaper, so that the electrode and the workpiece can maintain good contact.
When electrode loss is serious, machine tools must be used for trimming.
