Wire Mesh Weld Semi Automatic Welding Machine Pneumatic Spot Welder

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: D(N)B--160, D(N)B--200, D(N)B--250
Minimum Order Quantity: 1
Price: USD35000-USD40000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/month
Detail Information
Product Name: Full Automatic Fire-proof Door Stationary Spot Welders Welding Material: Alloy Metal Aluminum Stainless Steel
Feature: Fully Automatic Machine Type: Automatic Double-side Welding
Type: Touch Screen Control MOQ: 1 Set
After Warranty Service: Video Technical Support, Online Support And Spare Parts After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training
High Light:

Wire Mesh Pneumatic Spot Welder

,

Semi Automatic Pneumatic Spot Welder


Product Description

 Wire Mesh Weld Semi Automatic Welding Machine Pneumatic Spot Welder 0





Cheap Welded Wire Mesh Weld Semi-Automatic Welding Machine Pneumatic Spot Welder



Product Introduction

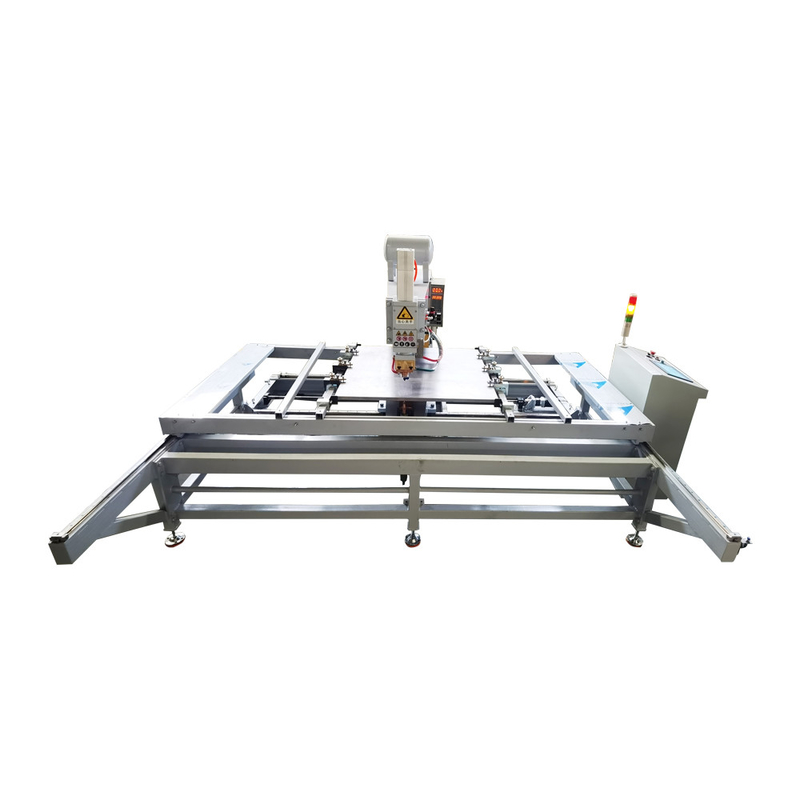

The stationary spot welding machine is customized for fire-proof door. The welding machine is composed of rack, workpiece moving platform, welding machine moving mechanism, upper and lower electrodes, welding transformer, welding machine controller, PLC controller, air circuit system, cooling water circuit system and other components.



Technical Parameters




Models/Item D(N)B--160 D(N)B--200 D(N)B--250
Rated power (KVA) 160 200 250
Power input(V) 3φAC 380V 3φAC 380V 3φAC 380V
Max. short circuit current(KA) 40 40 45
Max. force (N) 6000 10000 15000
Electrode length(MM) 450 450 500
Working stroke(MM) 80 80 80
Cooling consumption(L/min) 20 20 20
Max.welding capacity(MM) 4.0+4.0 5.0+5.0 6.0+6.0





Advantages



1. Stable machine structure upside and downside of electrodes apply the pressure mode with assistant stroke. The welding efficiency is much higher.



2. The transformer of welding machine adopts the special resistance welding machine, the silicon steel slice is featured of high magnetic: the inner water- cooled by force; stronger power and high duty ratio.



3. Controlled by micro-computer and can saved at most 16 sets of welding settings, which is quite convenient for different kinds of welding sheets.



4. Can widely used in nut, studs, traffic tools, household items, cars. And it can be welded low-carbon steel, stainless steel, coated steel, non-ferrous metal wire, sheet, pipe, etc.





Working Principle

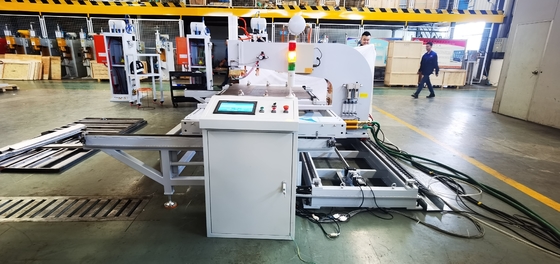

Install the workpiece: the rear positioning block and the right positioning block are used as the reference positioning block. To adjust, the motor zero point needs to be corrected. Other positioning blocks can be adjusted close to the workpiece. The side floating positioning block clamps the framework of the workpiece and the panel together to avoid the displacement of the welding spot. (The manual clamping screw fixes the workpiece on the side floating positioning block).



Welding: after the start (automatic) switch is pressed, the program automatically controls the action of the equipment to complete the product until the stop button is pressed.



Wire Mesh Weld Semi Automatic Welding Machine Pneumatic Spot Welder 1





Operations After Use



After use every day, the following operations shall be carried out in order to ensure the long-term safe operation of the welding machine

  • Press the stop button first, then the power switch (the power indicator is off).
  • Press the white button under the water filter to drain the water stored inside.
  • Turn off the air source. If the lubricating oil in the oil mist atomizer is too small and lower than the minimum scale, add lubricating oil to the oil mist atomizer (the lubricating oil must be suitable for the cylinder, and the oil mist atomizer shall be installed as required by the customer).
  • Turn off the cooling water source.

Notes: when the ambient temperature is lower than 0 ℃ in winter, after the welding machine is used, the water in the cooling water pipe shall be drained and the residual water in the cooling water pipe shall be blown with compressed air to prevent the pipe from freezing and cracking.





Images



Wire Mesh Weld Semi Automatic Welding Machine Pneumatic Spot Welder 2



Wire Mesh Weld Semi Automatic Welding Machine Pneumatic Spot Welder 3




Application

Wire Mesh Weld Semi Automatic Welding Machine Pneumatic Spot Welder 4


Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.


Wire Mesh Weld Semi Automatic Welding Machine Pneumatic Spot Welder 5
Wire Mesh Weld Semi Automatic Welding Machine Pneumatic Spot Welder 6
Wire Mesh Weld Semi Automatic Welding Machine Pneumatic Spot Welder 7
Wire Mesh Weld Semi Automatic Welding Machine Pneumatic Spot Welder 8

Wire Mesh Weld Semi Automatic Welding Machine Pneumatic Spot Welder 9
