Automatic Pipe Wire Mesh 220V Spot Welding Machine Steel Door Spot Welder

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: D(N)B--160, D(N)B--200, D(N)B--250
Minimum Order Quantity: 1
Price: USD35000-USD40000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/month
Detail Information
Product Name: Full Automatic Fire-proof Door Stationary Spot Welders Welding Material: Steel Copper Aluminum
Feature: Stable Welding Current Machine Type: Resistance Welding Machine
Application: Industrial MOQ: 1 Set
After Warranty Service: Video Technical Support, Online Support And Spare Parts After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training
High Light:

220V Wire Mesh Spot Welding Machine

,

Plc Steel Door Spot Welder


Product Description

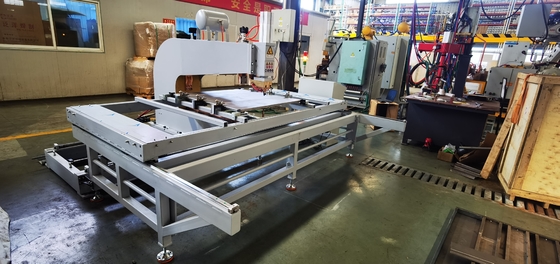

 Automatic Pipe Wire Mesh 220V Spot Welding Machine Steel Door Spot Welder 0





Automatic Pipe Wire Mesh 220V Spot Welding Welding Machine Steel Door Spot Welder



Product Introduction

The stationary spot welding machine is customized for fire-proof door. The welding machine is composed of rack, workpiece moving platform, welding machine moving mechanism, upper and lower electrodes, welding transformer, welding machine controller, PLC controller, air circuit system, cooling water circuit system and other components.



Technical Parameters




Models/Item D(N)B--160 D(N)B--200 D(N)B--250
Rated power (KVA) 160 200 250
Power input(V) 3φAC 380V 3φAC 380V 3φAC 380V
Max. short circuit current(KA) 40 40 45
Max. force (N) 6000 10000 15000
Electrode length(MM) 450 450 500
Working stroke(MM) 80 80 80
Cooling consumption(L/min) 20 20 20
Max.welding capacity(MM) 4.0+4.0 5.0+5.0 6.0+6.0





Advantages



1. Stable machine structure upside and downside of electrodes apply the pressure mode with assistant stroke. The welding efficiency is much higher.



2. The transformer of welding machine adopts the special resistance welding machine, the silicon steel slice is featured of high magnetic: the inner water- cooled by force; stronger power and high duty ratio.



3. Controlled by micro-computer and can saved at most 16 sets of welding settings, which is quite convenient for different kinds of welding sheets.



4. Can widely used in nut, studs, traffic tools, household items, cars. And it can be welded low-carbon steel, stainless steel, coated steel, non-ferrous metal wire, sheet, pipe, etc.





Structure



Components of Welding Machine:

The fire door spot welding machine consists of a frame, a workpiece moving platform, a welding machine moving mechanism, upper and lower electrodes, a welding transformer, and a welding machine controller, PLC controller, air circuit system, cooling water circuit system and other components.



Automatic Pipe Wire Mesh 220V Spot Welding Machine Steel Door Spot Welder 1



Pneumatic Transmission Mechanism:

When the fire door spot welding machine is used for welding, the lowering of the upper electrode and the pressing of the weldment are realized by the pneumatic transmission mechanism,the mechanism is composed of cylinder, piston, guide rod, sealing ring, sealing ring, etc.



Automatic Pipe Wire Mesh 220V Spot Welding Machine Steel Door Spot Welder 2

Air Circuit System:

The air circuit system is composed of ball valve, air filter, pressure reducing valve, oil atomizer, electromagnetic air valve, cylinder, etc.

Automatic Pipe Wire Mesh 220V Spot Welding Machine Steel Door Spot Welder 3

Working Principle



Install the workpiece: the rear positioning block and the right positioning block are used as the reference positioning block. To adjust, the motor zero point needs to be corrected. Other positioning blocks can be adjusted close to the workpiece. The side floating positioning block clamps the framework of the workpiece and the panel together to avoid the displacement of the welding spot. (The manual clamping screw fixes the workpiece on the side floating positioning block).



Welding: after the start (automatic) switch is pressed, the program automatically controls the action of the equipment to complete the product until the stop button is pressed.



Automatic Pipe Wire Mesh 220V Spot Welding Machine Steel Door Spot Welder 4





Control System Functions



Specific functions are as follows:

1.The welding time: can be set to accurately control the welding time through IGBT, which provides necessary conditions for the consistency of welding.

2. The constant current function: can realize the constant current function through the control of IGBT, which solves the fundamental problem that ordinary energy storage welding cannot control the welding current.

3. Multiple discharge pulses: have three welding pulses: preheating, welding and tempering. The welding pulse can be cycled, and the number of cycles can be set to 99 at most.

4. Welding current display: the effective value and peak value of welding current can be displayed after welding.





Images



Automatic Pipe Wire Mesh 220V Spot Welding Machine Steel Door Spot Welder 5



Automatic Pipe Wire Mesh 220V Spot Welding Machine Steel Door Spot Welder 6




Application



Automatic Pipe Wire Mesh 220V Spot Welding Machine Steel Door Spot Welder 7


Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.


Automatic Pipe Wire Mesh 220V Spot Welding Machine Steel Door Spot Welder 8
Automatic Pipe Wire Mesh 220V Spot Welding Machine Steel Door Spot Welder 9
Automatic Pipe Wire Mesh 220V Spot Welding Machine Steel Door Spot Welder 10
Automatic Pipe Wire Mesh 220V Spot Welding Machine Steel Door Spot Welder 11

Automatic Pipe Wire Mesh 220V Spot Welding Machine Steel Door Spot Welder 12
