| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | D(N)B--160, D(N)B--200, D(N)B--250 |
| Minimum Order Quantity: | 1 |
| Price: | USD11500-USD15500 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Product Name: | Welders Copper Car Body Generator Aluminum Welder Stationary Spot Welding Machine | Welding Material: | Aluminum, Stainless Steel, Metal Steel |
|---|---|---|---|
| Function: | Sheet Metal Spot Weldinng | Machine Type: | Resistance Welding Machine |
| Type: | Manual Spot Welding | MOQ: | 1 Set |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| High Light: | Dc Stationary Spot Welding Machine,Aluminum Stationary Spot Welding Machine,AC380V Dc Generator Welder |
||

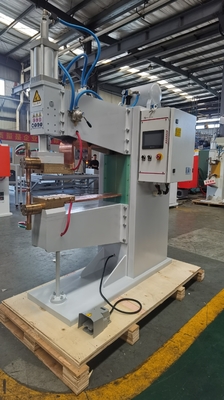

Industrial Chinese Dc Generator Welder Equipment Stationary Spot Welding Machine
Product Description
DN (B) series medium frequency fixed point projection welding machine is mainly used for welding plates of low-carbon steel, stainless steel, aluminum alloy and some non-ferrous metals, as well as projection welding between plates and nuts and bolts.
Technical Parameters
| Items Models | DN(B)-100 | DN(B)-160 | DN(B)-200 | DN(B)-250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current (KA) | 30 | 35 | 40 | 45 |
| Duty cycle(%) | 50 | 50 | 50 | 50 |
| Max. force(N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length( MM) | 450 | 450 | 450 | 500 |
| Working stroke( MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max. welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
(1) . The lowering and rising speed of the pressure head can be adjusted at will, which alleviates the pressure impact on the work and reduces the noise;
(2) The secondary conductor adopts the upper insulation mode, and the insulation performance is stable and reliable;
(3) The main circuit adopts water-cooled high-power silicon controlled rectifier module, with strong, stable and reliable output;
(4) The water circuit elements are all made of copper and stainless steel, and equipped with visual water flow display to display the water flow;
(5) The operation is controlled by foot switch, with high production efficiency and low labor intensity.

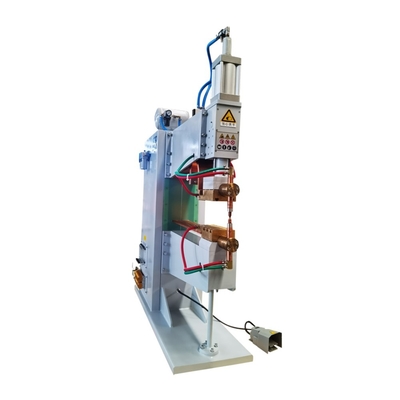

Product Structure
Working Environment and Conditions
①The altitude shall not exceed 1000m.
②Ambient air temperature shall be within the range of 5-40 ℃.
③The average maximum relative humidity of the air is 90%, and the average minimum temperature of the month is not more than 25 ℃.
④The dust, acid, alkali, corrosive gas or substance in the surrounding air shall not exceed the normal content.
Images
Application
