Engine Driven Metal Welder Car Body Repair Spot Screw Generator Welding Machine

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: D(N)B--160, D(N)B--200, D(N)B--250
Minimum Order Quantity: 1
Price: USD11500-USD15500
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/month
Detail Information
Product Name: Engine Driven Metal Welder Car Body Repair Spot Screw Generator Welding Machine Welding Material: Aluminum, Stainless Steel, Metal Steel
Function: Sheet Metal Spot Weldinng Machine Type: Resistance Welding Machine
Type: High Efficiency MOQ: 1 Set
After Warranty Service: Video Technical Support, Online Support And Spare Parts After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training
High Light:

Spot Screw Generator Welding Machine

,

AC380V Engine Driven Metal Welder

,

CE Generator Welding Machine


Product Description



Engine Driven Metal Welder Car Body Repair Spot Screw Generator Welding Machine



Product Description

When the spot welder is working, after the start (foot) switch is pressed, the solenoid valve acts, the compressed air pushes the cylinder to move, and the electrode head presses the workpiece; After the time delay, the power switch (thyristor) in the controller is switched on, and the welding process starts. The welding transformer generates welding current to conduct welding by jointly building and maintaining the selected welding time. After welding, continue to maintain the pressure on the workpiece to melt the core to cool the welding point of the stroke. After that, the solenoid valve reverses, the electrode head is lifted, and a welding cycle is completed.



Technical Parameters



Items Models DN(B)-100 DN(B)-160 DN(B)-200 DN(B)-250
Rated power (KVA) 100 160 200 250
Power input(V) 3φAC 380V 3φAC 380V 3φAC 380V 3φAC 380V
Max. short circuit current (KA) 30 35 40 45
Duty cycle(%) 50 50 50 50
Max. force(N) 6000 6000 10000 15000
Electrode length( MM) 450 450 450 500
Working stroke( MM) 80 80 80 80
Cooling consumption(L/min) 20 20 20 20
Max. welding capacity(MM) 3.0+3.0 4.0+4.0 5.0+5.0 6.0+6.0





Advantages



(1) . The lowering and rising speed of the pressure head can be adjusted at will, which alleviates the pressure impact on the work and reduces the noise;



(2) The secondary conductor adopts the upper insulation mode, and the insulation performance is stable and reliable;



(3) The main circuit adopts water-cooled high-power silicon controlled rectifier module, with strong, stable and reliable output;



(4) The water circuit elements are all made of copper and stainless steel, and equipped with visual water flow display to display the water flow;



(5) The operation is controlled by foot switch, with high production efficiency and low labor intensity.





Product Structure

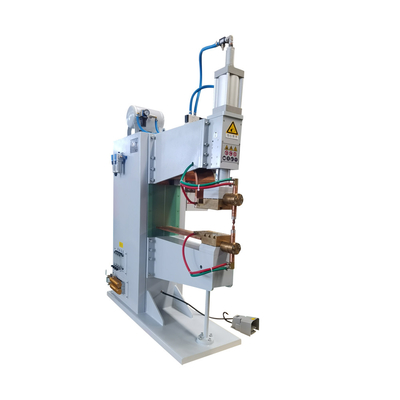

Engine Driven Metal Welder Car Body Repair Spot Screw Generator Welding Machine 0





Working Environment and Conditions



①The altitude shall not exceed 1000m.



②Ambient air temperature shall be within the range of 5-40 ℃.



③The average maximum relative humidity of the air is 90%, and the average minimum temperature of the month is not more than 25 ℃.



④The dust, acid, alkali, corrosive gas or substance in the surrounding air shall not exceed the normal content.





Images



Engine Driven Metal Welder Car Body Repair Spot Screw Generator Welding Machine 1

Engine Driven Metal Welder Car Body Repair Spot Screw Generator Welding Machine 2




Application


Engine Driven Metal Welder Car Body Repair Spot Screw Generator Welding Machine 3


Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.


Engine Driven Metal Welder Car Body Repair Spot Screw Generator Welding Machine 4
Engine Driven Metal Welder Car Body Repair Spot Screw Generator Welding Machine 5
Engine Driven Metal Welder Car Body Repair Spot Screw Generator Welding Machine 6
Engine Driven Metal Welder Car Body Repair Spot Screw Generator Welding Machine 7

Engine Driven Metal Welder Car Body Repair Spot Screw Generator Welding Machine 8
