Wire Mesh Heavy Duty Weld Car Welding Machine Manual Generator Welder

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: D(N)B--100,D(N)B--160, D(N)B--200, D(N)B--250
Minimum Order Quantity: 1
Price: USD11500-USD15500
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/month
Detail Information
Product Name: Wire Mesh Heavy Duty Price Weld Car Welding Machine Manual Generator Welder Welding Material: Aluminum, Stainless Steel, Metal Steel
Function: Sheet Metal Spot Weldinng Machine Type: Resistance Welding Machine
Type: Accurate Control System MOQ: 1 Set
After Warranty Service: Video Technical Support, Online Support And Spare Parts After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training
High Light:

AC380V Car Welding Machine

,

Aluminum Manual Generator Welder

,

Wire Mesh Spot Welding Machine


Product Description



Wire Mesh Heavy Duty Price Weld Car Welding Machine Manual Generator Welder



Product Description


DN (B) series medium frequency fixed point projection welding machine is mainly used for welding plates of low-carbon steel, stainless steel, aluminum alloy and some non-ferrous metals, as well as projection welding between plates and nuts and bolts.



Technical Parameters



Items Models DN(B)-100 DN(B)-160 DN(B)-200 DN(B)-250
Rated power (KVA) 100 160 200 250
Power input(V) 3φAC 380V 3φAC 380V 3φAC 380V 3φAC 380V
Max. short circuit current (KA) 30 35 40 45
Duty cycle(%) 50 50 50 50
Max. force(N) 6000 6000 10000 15000
Electrode length( MM) 450 450 450 500
Working stroke( MM) 80 80 80 80
Cooling consumption(L/min) 20 20 20 20
Max. welding capacity(MM) 3.0+3.0 4.0+4.0 5.0+5.0 6.0+6.0





Advantages



(1) . The lowering and rising speed of the pressure head can be adjusted at will, which alleviates the pressure impact on the work and reduces the noise;



(2) The secondary conductor adopts the upper insulation mode, and the insulation performance is stable and reliable;



(3) The main circuit adopts water-cooled high-power silicon controlled rectifier module, with strong, stable and reliable output;



(4) The water circuit elements are all made of copper and stainless steel, and equipped with visual water flow display to display the water flow;



(5) The operation is controlled by foot switch, with high production efficiency and low labor intensity.

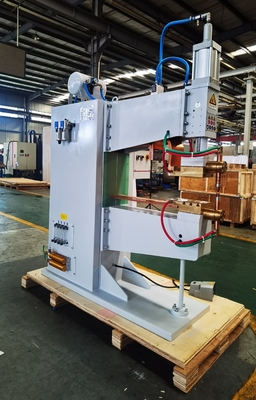

Product Structure



Wire Mesh Heavy Duty Weld Car Welding Machine Manual Generator Welder 0





Mechanical Properties Of Fuselage And Related Parts



1) The welding machine body is welded, with modular structure design. The fuselage is welded with thick steel plates, and is divided into independent modules such as fuselage, upper head, upper and lower copper tiles, soft and hard connections, welding transformers, back doors, and welding arms.



2) The main shaft is made of 45 # steel, with good rigidity, high strength, firmness and reliability; The welding machine has good rigidity against vibration and impact during operation.

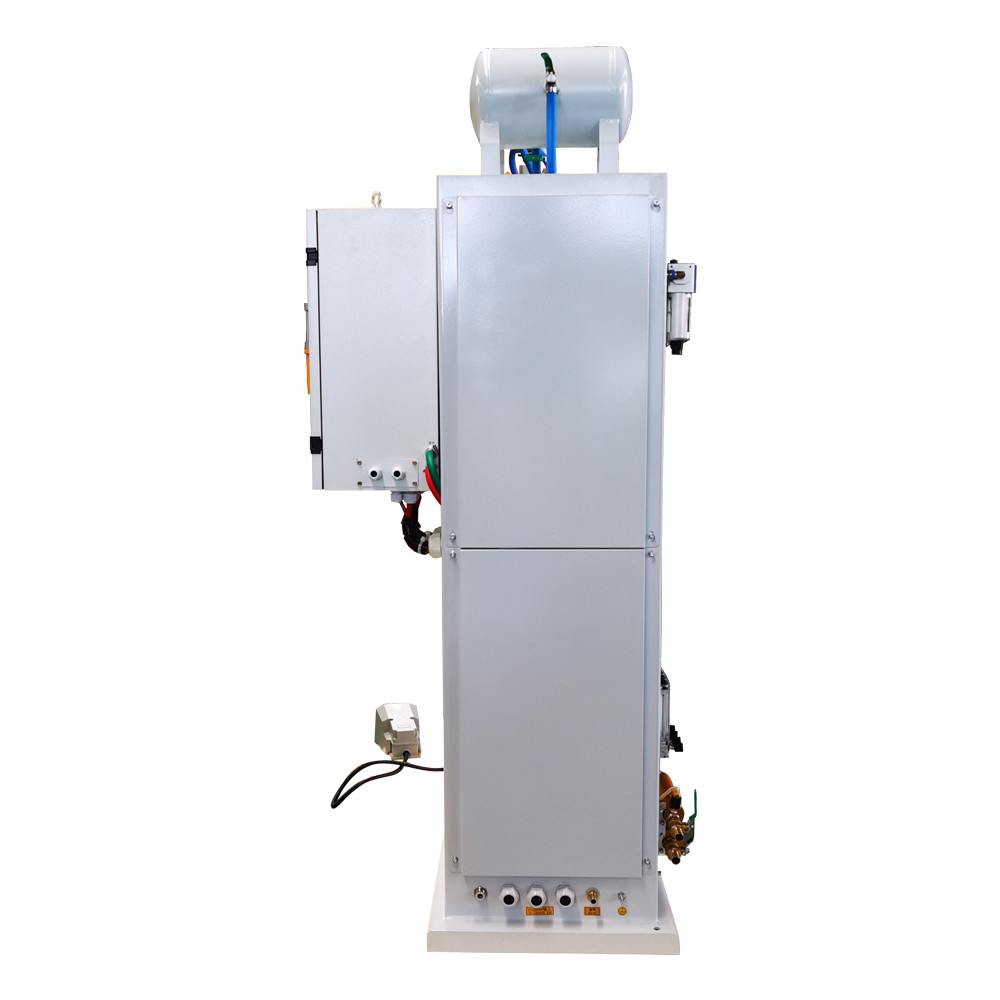

3) There is a door at the back of the welding machine, which is convenient for inspection and maintenance.





Images



Wire Mesh Heavy Duty Weld Car Welding Machine Manual Generator Welder 1

Wire Mesh Heavy Duty Weld Car Welding Machine Manual Generator Welder 2




Application


Wire Mesh Heavy Duty Weld Car Welding Machine Manual Generator Welder 3


Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.


Wire Mesh Heavy Duty Weld Car Welding Machine Manual Generator Welder 4
Wire Mesh Heavy Duty Weld Car Welding Machine Manual Generator Welder 5
Wire Mesh Heavy Duty Weld Car Welding Machine Manual Generator Welder 6
Wire Mesh Heavy Duty Weld Car Welding Machine Manual Generator Welder 7

Wire Mesh Heavy Duty Weld Car Welding Machine Manual Generator Welder 8
