Custom Certified Spot Welding Copper Electrodes For Metal Spot Welder

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: XW
Minimum Order Quantity: 100
Price: USD1-USD5
Packaging Details: Wooden Case
Delivery Time: 7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets/month
Detail Information
Product Name: Custom Good Cheap Certified Spot Welding Copper Electrodes For Metal Spot Welder Keyword: Copper Welding Contact Tips
Usage: Welding Elcetrode Material: Copper
Packing: Wooden Case Certification: CE
After Warranty Service: Video Technical Support, Online Support And Spare Parts After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training
High Light:

Custom Spot Welding Copper Electrodes

,

Metal Spot Welding Copper Electrodes

,

CE Copper Welding Contact Tips


Product Description

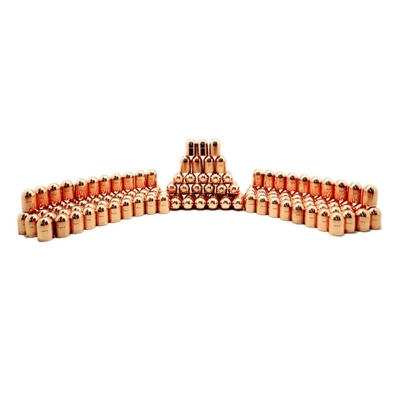

Custom Certified Spot Welding Copper Electrodes For Metal Spot Welder 0


Custom Good Cheap Certified Spot Welding Copper Electrodes For Metal Spot Welder


Product Description


The spot welding electrode material is usually chromium zirconium copper (CuCrZr), which has high conductivity, high hardness, long service life, less loss of current power through the electrode, and is not easy to soften at high temperature.





Technical Parameters

Product Name
Spot Welding Copper Electrodes Cap
Samples

 Provided, please contact us.

OEM
Accept Customized
Material
CuCrZr, CuBe2, or According to requirements
Material no. UNS (ASTM)
C18150, C17200, or According to requirements
Material description
Age hardenable Cu alloy with high electrical and thermal conductivity under a high degree of hardness and strength.
Size
According to customer's requirements
Application
Spot Welding





Advantages



1. High conductivity: less current loss of the electrode.

2. Hardness: thermo stability and long life span.

3. High quality material: high quality, each welding point is small and firm.

4. High resistance to melt: meeting the requirements of the coating of welding, resistance welding depth of coating adhesion.

5. Overall performance: improving electrode performance, reliability and strong welding, soldering strong adaptability.





Different Types of Caps Tips

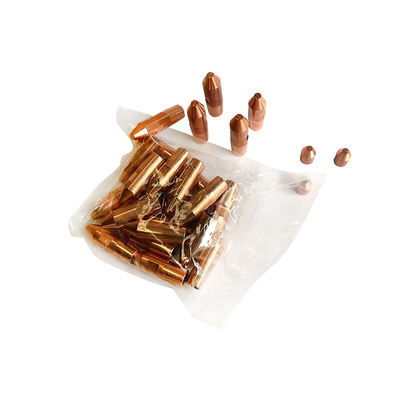

Custom Certified Spot Welding Copper Electrodes For Metal Spot Welder 1

Custom Certified Spot Welding Copper Electrodes For Metal Spot Welder 2

Offset

The D nose or Offset face tip is used for welds in tight spaces typically on a flange or tight corner. It requires manual orientation during setup.



Truncated

The E nose or Truncated face tip is an efficient design that does not trap weld flash on the face and may reduce mushrooming.



Radius

The F nose or Radius face tip is typically used for aluminum welding because it provides point contact to break through the aluminum oxide layer on the surface while still providing an adequate weldface to manage the current density during welding.





General Types

Custom Certified Spot Welding Copper Electrodes For Metal Spot Welder 3

Custom Certified Spot Welding Copper Electrodes For Metal Spot Welder 4

Images



Custom Certified Spot Welding Copper Electrodes For Metal Spot Welder 5

Please note: the electrode cap tip can be custom-made according to your requirements.
