Auto Body Sheet Metal Kinds Spot Welder Tip , Resistance Spot Welding Electrodes

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: XW
Minimum Order Quantity: 100
Price: USD1-USD5
Packaging Details: Wooden Case
Delivery Time: 7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets/month
Detail Information
Product Name: Auto Body Sheet Metal Kinds Of Resistance Spot Welder Tip Welding Electrodes Price Application: Resistance Spot Welding Machine
Welding Type: Welding Accessroies Material: CuCrZr
Type: Projection Welding Electrodes Certification: CE
After Warranty Service: Video Technical Support, Online Support And Spare Parts After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training
High Light:

High Hardness Spot Welder Tip

,

CuBe2 Spot Welder Tip

,

C17200 Spot Welding Electrodes


Product Description


Auto Body Sheet Metal Kinds Spot Welder Tip , Resistance Spot Welding Electrodes 0


Auto Body Sheet Metal Kinds Of Resistance Spot Welder Tip Welding Electrodes Price


Product Description

The spot welding electrode material is usually chromium zirconium copper (CuCrZr), which has high conductivity, high hardness, long service life, less loss of current power through the electrode, and is not easy to soften at high temperature.


Technical Parameters

Product Name
Spot Welding Copper Electrodes Cap
Samples

 Provided, please contact us.

OEM
Accept Customized
Material
CuCrZr, CuBe2, or According to requirements
Material no. UNS (ASTM)
C18150, C17200, or According to requirements
Material description
Age hardenable Cu alloy with high electrical and thermal conductivity under a high degree of hardness and strength.
Size
According to customer's requirements
Application
Spot Welding





Advantages



1.Chrome zirconium copper:high hardness, wear resistance, high temperature resistance and good heat dissipation.

2.Spot welding electrode head:it does not stick to the workpiece, and the welding is firm and efficient.

3.Spot welding electrode cap:the softening temperature is high, the hardness is still high under high temperature, and the welding process is not easy to deform.

4.Spot Welding: welding iron, stainless steel, cold rolled sheet, carbon steel plate, low carbon steel, galvanized plate and so on.

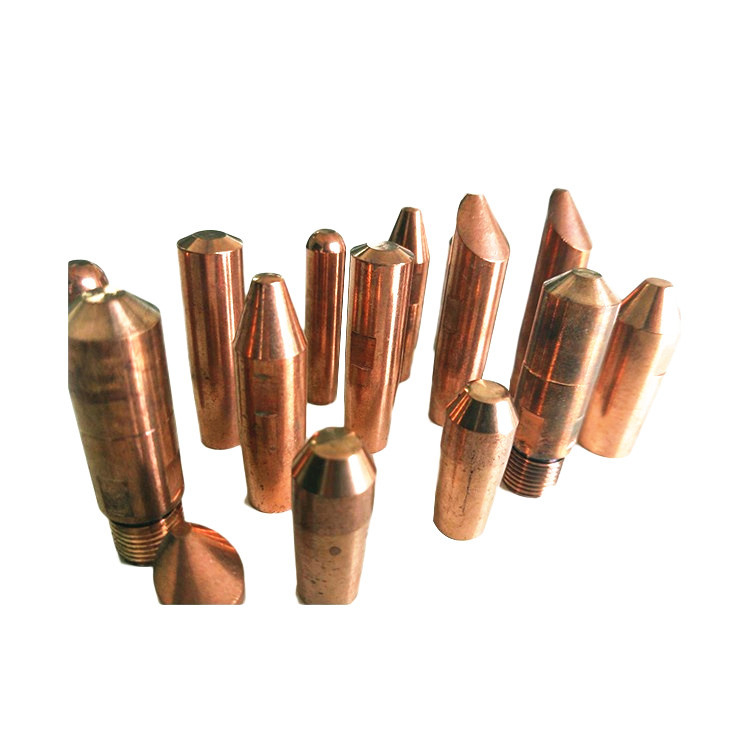

Different Types of Electrodes



Auto Body Sheet Metal Kinds Spot Welder Tip , Resistance Spot Welding Electrodes 1





Cap Electrode



The cap electrode divides the integral electrode into two parts: electrode cap and extension rod. The electrode cap can be replaced after welding damage, and the extension rod can continue to be used, which can save a lot of electrode copper alloy.





General Types

Auto Body Sheet Metal Kinds Spot Welder Tip , Resistance Spot Welding Electrodes 2

Auto Body Sheet Metal Kinds Spot Welder Tip , Resistance Spot Welding Electrodes 3

Images



Auto Body Sheet Metal Kinds Spot Welder Tip , Resistance Spot Welding Electrodes 4

Please note: the electrode cap tip can be custom-made according to your requirements.





Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.


8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.



Auto Body Sheet Metal Kinds Spot Welder Tip , Resistance Spot Welding Electrodes 5Auto Body Sheet Metal Kinds Spot Welder Tip , Resistance Spot Welding Electrodes 6

Auto Body Sheet Metal Kinds Spot Welder Tip , Resistance Spot Welding Electrodes 7

Auto Body Sheet Metal Kinds Spot Welder Tip , Resistance Spot Welding Electrodes 8

Auto Body Sheet Metal Kinds Spot Welder Tip , Resistance Spot Welding Electrodes 9

Auto Body Sheet Metal Kinds Spot Welder Tip , Resistance Spot Welding Electrodes 10
