| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DN-40, DN-63, D(T)N-80, D(T)N-100, D(T)N-125, D(T)N-125, D(T)N-200 |
| Minimum Order Quantity: | 1 |
| Price: | USD4500-USD6000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Product Name: | Nut Spot Welder Machine | Application: | Spot Welding Machine |
|---|---|---|---|
| Function: | Sheet Metal Spot Weldinng | Machine Type: | Resistance Welding Machine |
| Type: | Manual Spot Welding | Welding Material: | Aluminum, Stainless Steel, Metal Steel |
| Max. Welding Capacity: | 6+6mm | After Warranty Service: | Video Technical Support, Online Support And Spare Parts |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | Certification: | CE |
| Highlight: | Aluminium Point Fixed Welding Machine,Cnc Resistance Spot Welders,Cnc Resistance Fixed Welding Machine |
||

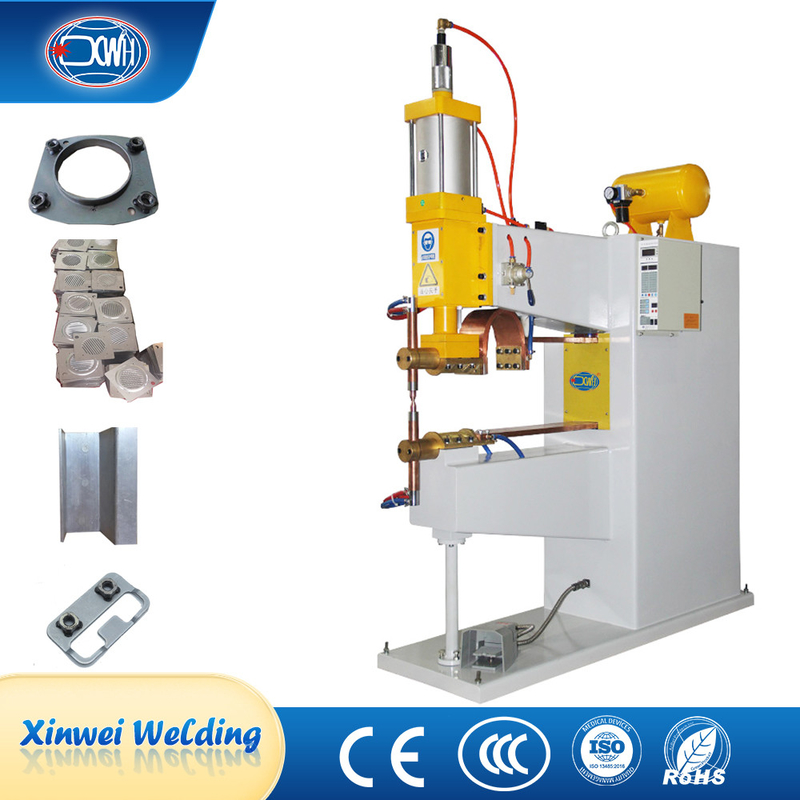

Cnc Resistance Stainless Steel Aluminium Point Fixed Welding Machine Spot Welders
Product Description
The DTN series fixed point projection spot welding machine is a dual purpose welding machine produced by our company, mainly used for welding low-carbon steel, stainless steel, and some non-ferrous metals. It can also achieve welding between plates, between plates and projection welding nuts and bolts.
Technical Parameters
| Item/Model | DN-40 | DN-63 | D(T)N-80 | D(T)N-100 | D(T)N-125 | D(T)N-160 | D(T)N-200 | |
| Rated power At 50% | KVA | 40 | 63 | 80 | 100 | 125 | 160 | 200 |
| Rated primary power | V | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Secondary Voltage | V | 5.2 | 6.7 | 7.9 | 8.3 | 8.6 | 9.1 | 10.6 |
| Rated frequency | HZ | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Max.Short Circuit Current | KA | 14 | 15 | 16 | 18 | 20 | 28 | 34 |
| Max. weld power | KVA | 62 | 86 | 170 | 280 | 300 | 330 | 410 |
| Throat | MM | 500 | 500 | 630 | 630 | 630 | 630 | 630 |
| Max.Froce at electrodes | N | 6000 | 6000 | 10000 | 10000 | 10000 | 12000 | 12000 |
| Working stroke | MM | 20 | 20 | 30 | 40 | 40 | 50 | 50 |
| Cooling Water Consumpion 2.5bar | L/min | 6 | 6 | 8 | 8 | 8 | 10 | 10 |
| Electrodes tlp | MM | Φ13*45 | Φ13*45 | Φ16*45 | Φ16*45 | Φ16*45 | Φ20*45 | Φ20*45 |
| Arms | MM | Φ50*150 | Φ50*150 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 |
| Projection Clamping Plate | MM | 125*125 | 125*125 | 200*200 | 200*200 | 200*200 | 200*200 | 200*200 |
|
Max.Welding Capaciry A3 steel |
MM | 2.5+2.5 | 3+3 | 4+4 | 4.5+4.5 | 5+5 | 5+5 | 6+6 |
Features
1. Body: Made of steel plates that are bent and welded as a whole, with good rigidity, high strength, reasonable structure, and beautiful appearance.
2. Welding pressure mechanism: Adopting ADK components, reliable and stable quality; The cylinder adopts an aluminum alloy cylinder barrel, with a wear-resistant surface and long service life; The working stroke is adjustable, using linear guide rails for guidance, with high accuracy and long service life.
3. Welding transformer: The welding transformer is a three-phase shell type, vacuum epoxy resin sealed, with the primary coil being a disc winding and the secondary coil being a specially made rectangular tube that also serves as a water cooling device.
4. Air circuit (pressurization) system: The air circuit (pressurization) system is composed of compressed air filter, pressure reducing valve, Barometer, oil atomizer, electromagnetic air valve, cylinder and foot pedal switch, etc. According to different user requirements, there can be no auxiliary travel, or mechanical or electrical controlled auxiliary travel.
Product Structure

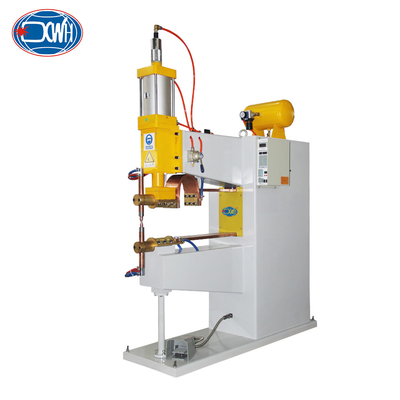

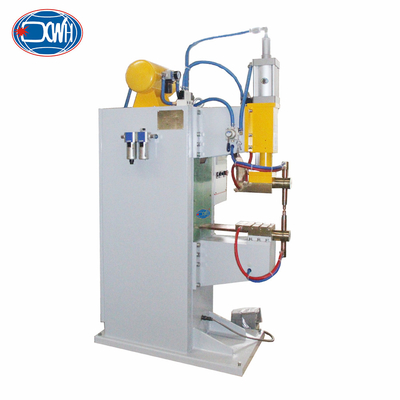

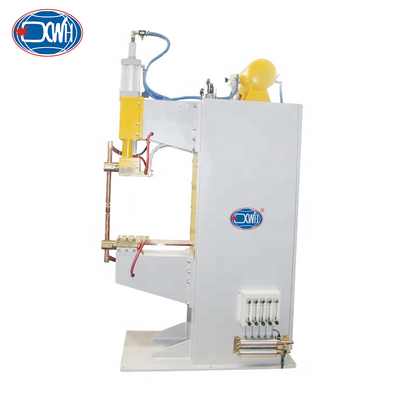

Images
Application
