Tube Welding Resistance Seam Welding Machine China Seam Welders

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: FN-80-H, FN-100-H, FN-160-H, FN-100-E, FN-160-E
Minimum Order Quantity: 1 Set
Price: $6000.00 - $7000.00
Packaging Details: Wooden Case
Delivery Time: 30 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/month
Detail Information
Features: High Efficiency Product Name: Seam Welders
Application: Tube Welding Function: Seam Weldinng
Machine Type: Resistance Welding Machine Welding Material: Alloy Metal Aluminum Stainless Steel
Type: Industrial Welding Machines After Warranty Service: Video Technical Support, Online Support And Spare Parts
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training Certification: CE
High Light:

Resistance Seam Welding Machine

,

Tube Resistance Seam Welding Machine

,

CE Resistance Seam Welders


Product Description





Welder Machines Other Welding Equipment Seam Welding Machine China Seam Welders


Product Description


Seam welding is a method of forming permanent metal connections. During welding, the weldment heats up locally through an electric current and applies pressure at the contact point of the weldment to form a solder joint. Seam welding is widely used in industries such as automobiles, motorcycles, tractors, jet engines, food canning, bicycles, etc.





Technical Parameters




Model Item
Unit
FN-80-H
FN-100-H
FN-160-H
FN-100-E
FN-160-E



 Rated power

KVA
80
100
160
100
160



Voltage input
V



380



 380



380



380



380





Frequency
Hz
50
50
50
50
50



Max. short circuit current
KA
26
30
40
30
40



Working stroke

  mm

100

100

100

100

100



Welding efficiency
m/min
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9



Max. force
N
6000
6000
7800
6000
7800



Max. welding capacity
mm
1.2+1.2
1.5+1.5
2.0+2.0
1.5+1.5
2.0+2.0



 Motor Power

W
550
750
750
750
400



Cooling consumption
L/min
8
8
10
8
10

Weight
Kg
380
510
630
530
700







Advantages



1.The welding process is stable and easy to adjust.



2.Internal cooling used in the welder, while external cooling of the welding wheel.



3.The rotating part is embedded silver tile structure, the conductive seat is fully sealed and lubricating, which improves the conductivity and the rotation flexibility.



4.Two kinds of welding modes: Horizontal and Vertical.

5.Widely used in hardware fittings, electrical, automobile, fuel tank and other manufacturing industries industry.





Detail Images

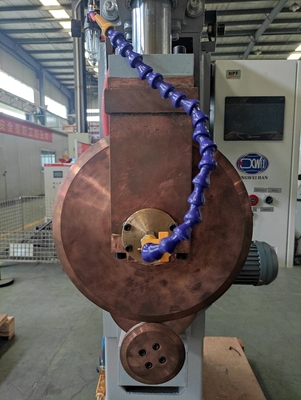

Tube Welding Resistance Seam Welding Machine China Seam Welders 0

Images

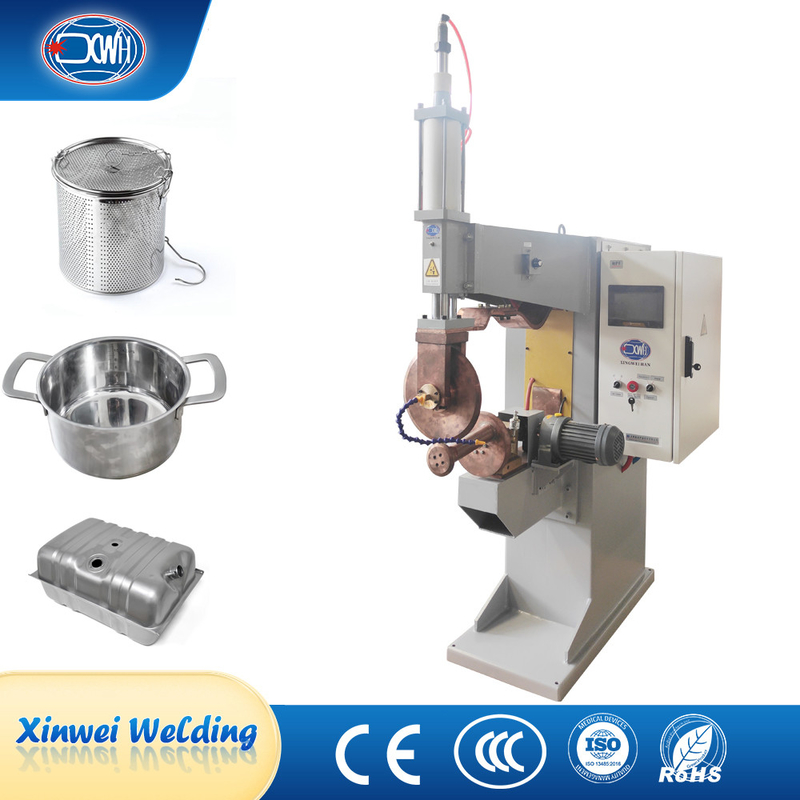

Tube Welding Resistance Seam Welding Machine China Seam Welders 1





Application



Tube Welding Resistance Seam Welding Machine China Seam Welders 2



Please note: the welding machine can be custom-made according to your requirements.





Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.


8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.


Tube Welding Resistance Seam Welding Machine China Seam Welders 3
Tube Welding Resistance Seam Welding Machine China Seam Welders 4
Tube Welding Resistance Seam Welding Machine China Seam Welders 5
Tube Welding Resistance Seam Welding Machine China Seam Welders 6
