Resistance Automatic Steel Longitudinal Tin Can Seam Welding Machine Seam Welders

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: FN-80-H, FN-100-H, FN-160-H, FN-100-E, FN-160-E
Minimum Order Quantity: 1 Set
Price: $6000.00 - $7000.00
Packaging Details: Wooden Case
Delivery Time: 30 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/month
Detail Information
Features: Easy To Operate Product Name: Longitudinal Seam Welding Machine
Application: Sink Function: Tube Welding
Machine Type: Resistance Welding Machine Welding Material: Alloy Metal Aluminum Stainless Steel
Type: Semiautomatic After Warranty Service: Video Technical Support, Online Support And Spare Parts
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training Certification: CE
High Light:

Automatic Steel Seam Welding Machine

,

Longitudinal Tin Can Seam Welders

,

Resistance Automatic Seam Welding Machine


Product Description





Resistance Automatic Steel Longitudinal Tin Can Seam Welding Machine Seam Welders


Product Description


A seam welding machine usually consists of a frame, a pressure mechanism, a welding roller (electrode), a trimming knife, a welding power supply, a speed control transmission mechanism, and a controller. The seam welding machine is mainly used in oil tank, barrel, basin and other sealed container welding, and it can work horizontally and vertically.





Technical Parameters




Model Item
Unit
FN-80-H
FN-100-H
FN-160-H
FN-100-E
FN-160-E



 Rated power

KVA
80
100
160
100
160



Voltage input
V



380



 380



380



380



380





Frequency
Hz
50
50
50
50
50



Max. short circuit current
KA
26
30
40
30
40



Working stroke

  mm

100

100

100

100

100



Welding efficiency
m/min
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9



Max. force
N
6000
6000
7800
6000
7800



Max. welding capacity
mm
1.2+1.2
1.5+1.5
2.0+2.0
1.5+1.5
2.0+2.0



 Motor Power

W
550
750
750
750
400



Cooling consumption
L/min
8
8
10
8
10

Weight
Kg
380
510
630
530
700







Advantages



1.The welding process is stable and easy to adjust.



2.Internal cooling used in the welder, while external cooling of the welding wheel.



3.The rotating part is embedded silver tile structure, the conductive seat is fully sealed and lubricating, which improves the conductivity and the rotation flexibility.



4.Two kinds of welding modes: Horizontal and Vertical.



5.Widely used in hardware fittings, electrical, automobile, fuel tank and other manufacturing industries industry.





Detail Images

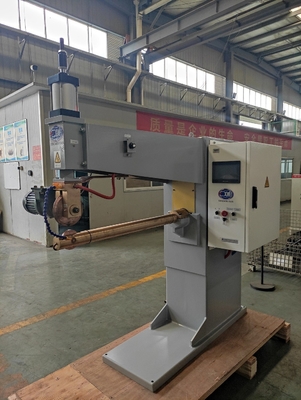

Resistance Automatic Steel Longitudinal Tin Can Seam Welding Machine Seam Welders 0


Images

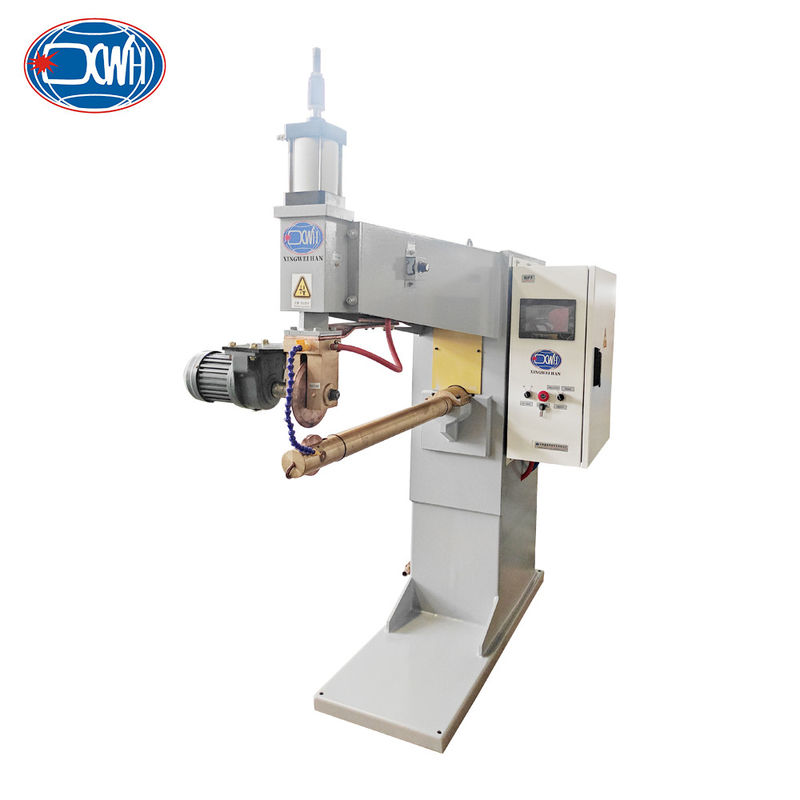

Resistance Automatic Steel Longitudinal Tin Can Seam Welding Machine Seam Welders 1





Application



Resistance Automatic Steel Longitudinal Tin Can Seam Welding Machine Seam Welders 2



Please note: the welding machine can be custom-made according to your requirements.





Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.


8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.


Resistance Automatic Steel Longitudinal Tin Can Seam Welding Machine Seam Welders 3
Resistance Automatic Steel Longitudinal Tin Can Seam Welding Machine Seam Welders 4
Resistance Automatic Steel Longitudinal Tin Can Seam Welding Machine Seam Welders 5
Resistance Automatic Steel Longitudinal Tin Can Seam Welding Machine Seam Welders 6
