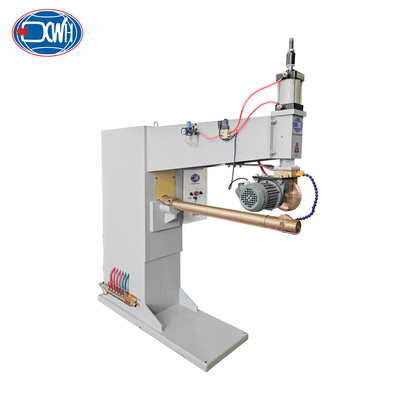

Resistance Automatic Longitudinal Seam Welding Machine Seam Welders For Cans

Resistance Automatic Longitudinal Seam Welding Machine Seam Welders For Cans

Brand Name:	XWH
Model Number:	FN-80-H, FN-100-H, FN-160-H, FN-100-E, FN-160-E
MOQ:	1 Set
Price:	$6000.00 - $7000.00
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Features:

Easy To Operate

Product Name:

Tin Can Seam Welding Machine

Application:

Circular Seam Welder

Function:

Longitudinal Welding Machine

Machine Type:

Resistance Welding Machine

Welding Material:

Alloy Metal Aluminum Stainless Steel

Type:

Semiautomatic

After Warranty Service:

Video Technical Support, Online Support And Spare Parts

After-sales Service Provided:

Free Spare Parts, Field Installation, Commissioning And Training

Certification:

Packaging Details:

Wooden Case

Supply Ability:

50 sets/month

Highlight:

Automatic Longitudinal Seam Welding Machine

Resistance Longitudinal Seam Welding Machine

Seam Welders For Cans

Product Description

Resistance Automatic Longitudinal Seam Welding Machine Welder Seam Welders For Cans

Product Description

Seam welding machine is used for lap welding and stitching between stainless steel plates, galvanized plates, high-strength plates, etc., in order to achieve workpiece sealing, such as automotive fuel tanks, motorcycle fuel tanks, water tanks, etc. Adopting pneumatic transmission, cylinder pressurization, mechatronics integration, precise welding process control, and stable welding quality.

Technical Parameters

Model Item	Unit	FN-80-H	FN-100-H	FN-160-H	FN-100-E	FN-160-E
Rated power	KVA	80	100	160	100	160
Voltage input	V	380	380	380	380	380
Frequency	Hz	50	50	50	50	50
Max. short circuit current	KA	26	30	40	30	40
Working stroke	mm	100	100	100	100	100
Welding efficiency	m/min	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9
Max. force	N	6000	6000	7800	6000	7800
Max. welding capacity	mm	1.2+1.2	1.5+1.5	2.0+2.0	1.5+1.5	2.0+2.0
Motor Power	W	550	750	750	750	400
Cooling consumption	L/min	8	8	10	8	10
Weight	Kg	380	510	630	530	700

Advantages

1.The welding process is stable and easy to adjust.

2.Internal cooling used in the welder, while external cooling of the welding wheel.

3.The rotating part is embedded silver tile structure, the conductive seat is fully sealed and lubricating, which improves the conductivity and the rotation flexibility.

4.Two kinds of welding modes: Horizontal and Vertical.

5.Widely used in hardware fittings, electrical, automobile, fuel tank and other manufacturing industries industry.

Detail Images

Images

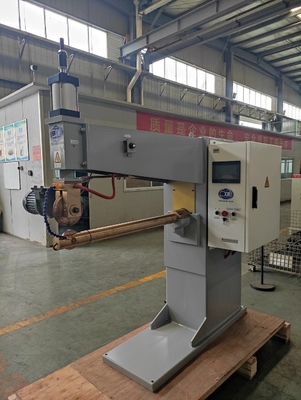

Resistance Automatic Longitudinal Seam Welding Machine Seam Welders For Cans 1

Application

Please note: the welding machine can be custom-made according to your requirements.

Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
