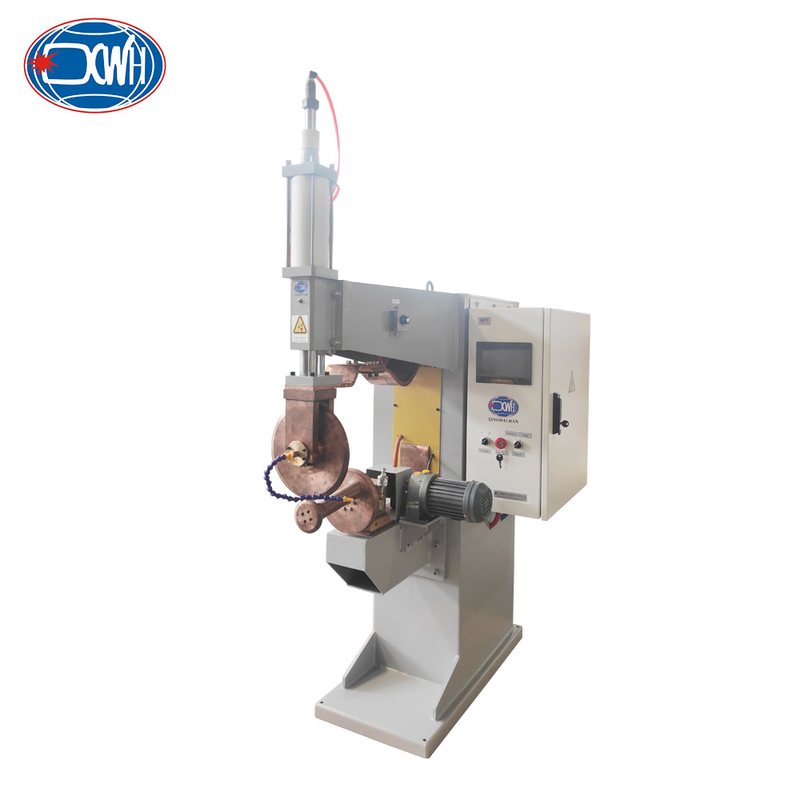

Semiautomatic Cnc Welder Resistance Tin Can Circular Side Seam Welding Machine
Brand Name:
XWH
Model Number:
FN-80-H, FN-100-H, FN-160-H, FN-100-E, FN-160-E
Place of Origin:
China
Certification:
CE
Minimum Order Quantity:
1 Set
Price:
$6000.00 - $7000.00
Supply Ability:
50 sets/month
Delivery Time:
30 Working days
Inquiry Now
Get A Quote
Specifications
Highlight Features
Tin Can Seam Welding Machine
,Resistance Semiautomatic Cnc Welder
,Tin Can Cnc Welder
Features:
High Efficiency
Product Name:
Tank Welding Machine
Application:
Industries
Function:
Fuel Tank Welding
Machine Type:
Resistance Welding Machine
Welding Material:
Alloy Metal Aluminum Stainless Steel
Type:
Industrial Welding Machines
After Warranty Service:
Video Technical Support, Online Support And Spare Parts
After-sales Service Provided:
Free Spare Parts, Field Installation, Commissioning And Training
Certification:
CE
Product Description
Semiautomatic Cnc Welder Resistance Tin Can Circular Side Seam Welding Machine
Product Description
Seam welding is a method of forming permanent metal connections. During welding, the weldment heats up locally through an electric current and applies pressure at the contact point of the weldment to form a solder joint. Seam welding is widely used in industries such as automobiles, motorcycles, tractors, jet engines, food canning, bicycles, etc.
Technical Parameters
|
Model Item
|
Unit
|
FN-80-H
|
FN-100-H
|
FN-160-H
|
FN-100-E
|
FN-160-E
|
|
Rated power |
KVA
|
80
|
100
|
160
|
100
|
160
|
|
Voltage input
|
V
|
380
|
380
|
380
|
380
|
380
|
|
Frequency
|
Hz
|
50
|
50
|
50
|
50
|
50
|
|
Max. short circuit current
|
KA
|
26
|
30
|
40
|
30
|
40
|
|
Working stroke |
mm |
100 |
100
|
100 |
100 |
100
|
|
Welding efficiency
|
m/min
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
|
Max. force
|
N
|
6000
|
6000
|
7800
|
6000
|
7800
|
|
Max. welding capacity
|
mm
|
1.2+1.2
|
1.5+1.5
|
2.0+2.0
|
1.5+1.5
|
2.0+2.0
|
|
Motor Power |
W
|
550
|
750
|
750
|
750
|
400
|
|
Cooling consumption
|
L/min
|
8
|
8
|
10
|
8
|
10
|
|
Weight
|
Kg
|
380
|
510
|
630
|
530
|
700
|
Advantages
1.The welding process is stable and and the joint is smooth.
2.The welding wheel can move left and right, front and back so as to meet the welding requirements.
3.The whole machine adopts PLC and AC frequency conversion speed regulation to ensure the reliability.
4.Welding forms can be preset, stored and transmitted. You can easily change parameters and state transitions.

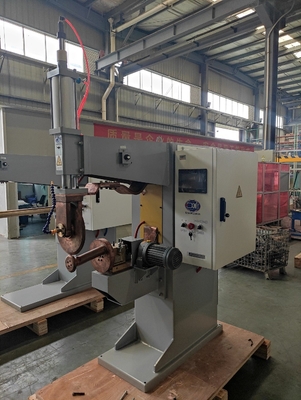

Detail Images
Images
Application
Please note: the welding machine can be custom-made according to your requirements.
Frequently Asked Questions
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
