Horizontal Type Water Tank Resistance Rolling Seam Welder Welding Machine For Cans

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: FN-80-H, FN-100-H, FN-160-H, FN-100-E, FN-160-E
Minimum Order Quantity: 1 Set
Price: $6000.00 - $7000.00
Packaging Details: Wooden Case
Delivery Time: 30 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/month
Detail Information
Features: High Efficiency Product Name: Seam Welding Machine Price
Application: Solar Warter Heater Tank Function: Seam Welding
Machine Type: Resistance Welding Machine Welding Material: Alloy Metal Aluminum Stainless Steel
Type: Industrial Welding Machines After Warranty Service: Video Technical Support, Online Support And Spare Parts
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training Certification: CE
High Light:

Water Tank Rolling Seam Welder

,

Horizontal Rolling Seam Welding Machine

,

Cans Resistance Rolling Seam Welder


Product Description





Horizontal Type Water Tank Resistance Rolling Seam Welder Welding Machine For Cans


Product Description


The FN series AC seam welding machine is a welding equipment that uses electrodes to compress the workpiece and directly uses the heating method of welding current for seam welding. Application: automobile manufacturing industry, agricultural machinery, plate metal processing, construction steel, household appliances, kitchen appliances and other manufacturing industries.​





Technical Parameters




Model Item
Unit
FN-80-H
FN-100-H
FN-160-H
FN-100-E
FN-160-E



 Rated power

KVA
80
100
160
100
160



Voltage input
V



380



 380



380



380



380





Frequency
Hz
50
50
50
50
50



Max. short circuit current
KA
26
30
40
30
40



Working stroke

  mm

100

100

100

100

100



Welding efficiency
m/min
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9



Max. force
N
6000
6000
7800
6000
7800



Max. welding capacity
mm
1.2+1.2
1.5+1.5
2.0+2.0
1.5+1.5
2.0+2.0



 Motor Power

W
550
750
750
750
400



Cooling consumption
L/min
8
8
10
8
10

Weight
Kg
380
510
630
530
700







Advantages



1.The welding process is stable and and the joint is smooth.



2.The welding wheel can move left and right, front and back so as to meet the welding requirements.



3.The whole machine adopts PLC and AC frequency conversion speed regulation to ensure the reliability.



4.Welding forms can be preset, stored and transmitted. You can easily change parameters and state transitions.





Detail Images

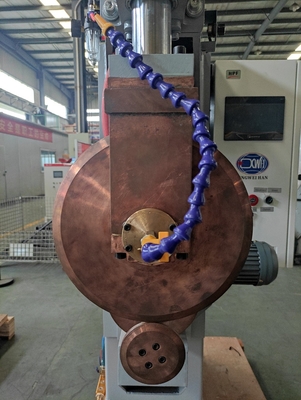

Horizontal Type Water Tank Resistance Rolling Seam Welder Welding Machine For Cans 0

Images

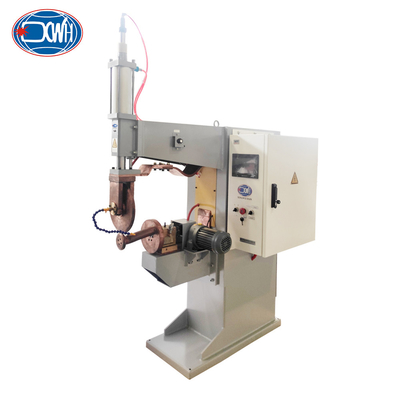

Horizontal Type Water Tank Resistance Rolling Seam Welder Welding Machine For Cans 1





Application



Horizontal Type Water Tank Resistance Rolling Seam Welder Welding Machine For Cans 2



Please note: the welding machine can be custom-made according to your requirements.





Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.


8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.


Horizontal Type Water Tank Resistance Rolling Seam Welder Welding Machine For Cans 3
Horizontal Type Water Tank Resistance Rolling Seam Welder Welding Machine For Cans 4
Horizontal Type Water Tank Resistance Rolling Seam Welder Welding Machine For Cans 5
Horizontal Type Water Tank Resistance Rolling Seam Welder Welding Machine For Cans 6
