| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | FN-80-H, FN-100-H, FN-160-H, FN-100-E, FN-160-E |
| Minimum Order Quantity: | 1 Set |
| Price: | $6000.00 - $7000.00 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Features: | High Efficiency | Product Name: | Seam Welding Machine Rolling Resistance Seam |
|---|---|---|---|
| Application: | Stainless Steel Water Tanks | Function: | Seam Welding Machine |
| Machine Type: | Resistance Welding Machine | Welding Material: | Alloy Metal Aluminum Stainless Steel |
| Type: | Industrial Welding Machines | After Warranty Service: | Video Technical Support, Online Support And Spare Parts |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | Certification: | CE |
| Highlight: | Circular Seam Welding Machine,Vertical Circular Seam Welding Machine,Air Pressure Longitudinal Seam Welder |
||
Seam welding machine refers to a resistance welding machine that assembles welded parts into overlapping or butt joints and places them between two roller electrodes. The roller electrodes pressurize the welded parts and rotate them, continuously or intermittently pulse to form a continuous weld seam. It can also be said that seam welding machines are an evolution of spot welding. Seam welding is widely used in the manufacturing of joints that require sealing, and sometimes it is also used to weld ordinary non sealing sheet metal parts.
|
Model Item
|
Unit
|
FN-80-H
|
FN-100-H
|
FN-160-H
|
FN-100-E
|
FN-160-E
|
|
Rated power |
KVA
|
80
|
100
|
160
|
100
|
160
|
|
Voltage input
|
V
|
380
|
380
|
380
|
380
|
380
|
|
Frequency
|
Hz
|
50
|
50
|
50
|
50
|
50
|
|
Max. short circuit current
|
KA
|
26
|
30
|
40
|
30
|
40
|
|
Working stroke |
mm |
100 |
100
|
100 |
100 |
100
|
|
Welding efficiency
|
m/min
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
|
Max. force
|
N
|
6000
|
6000
|
7800
|
6000
|
7800
|
|
Max. welding capacity
|
mm
|
1.2+1.2
|
1.5+1.5
|
2.0+2.0
|
1.5+1.5
|
2.0+2.0
|
|
Motor Power |
W
|
550
|
750
|
750
|
750
|
400
|
|
Cooling consumption
|
L/min
|
8
|
8
|
10
|
8
|
10
|
|
Weight
|
Kg
|
380
|
510
|
630
|
530
|
700
|
Advantages
1.The welding process is stable and easy to adjust.
2.Internal cooling used in the welder, while external cooling of the welding wheel.
3.The rotating part is embedded silver tile structure, the conductive seat is fully sealed and lubricating, which improves the conductivity and the rotation flexibility.
4.Two kinds of welding modes: Horizontal and Vertical.
5.Widely used in hardware fittings, electrical, automobile, fuel tank and other manufacturing industries industry.

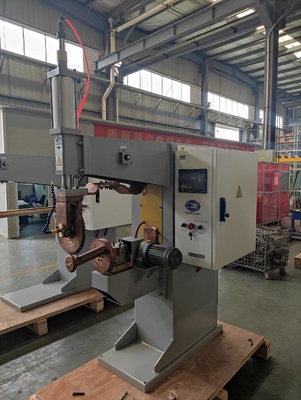

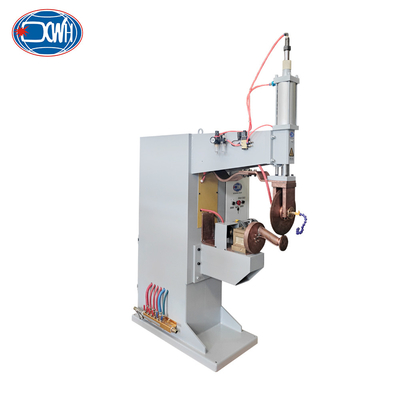

Detail Images
Images
Application
Please note: the welding machine can be custom-made according to your requirements.
