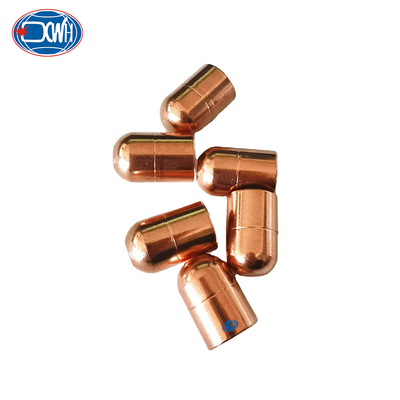

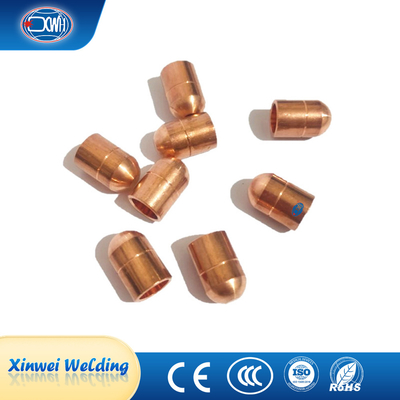

Weld Pro Certified Welder Types Of Resistance Welding Electrode Cap Tip

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: XW
Minimum Order Quantity: 100
Price: USD1-USD5
Packaging Details: Wooden Case
Delivery Time: 7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets/month
Detail Information
Product Name: Welding Tip Application: Spot Welding Machine
Usage: Welding Accessroies Material: CuCrZr, CuBe2, Or According To Requirements
Feature: Long Working Life Style: 16*23 13*23
Model: Can Be Customized After-salAfter Warranty Servicees Service Provided: Free Spare PVideo Technical Support, Online Support And Spare Partsarts, Field Installation, Commissioning And Training
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training Certification: CE
High Light:

Resistance Welding Electrode Cap Tip

,

Welder Electrode Cap Tip


Product Description





Best Weld Pro Certified Welder Types Of Resistance Welding Electrode Cap Tip


Product Description

The material of the electrode cap is now mostly chromium zirconium copper. Adding trace amounts of chromium and zirconium to pure copper can significantly improve its hardness and high-temperature softening temperature, and has good conductivity. There are also those that use dispersed copper, which is used for the welding of galvanized sheets. If the electrode cap of chromium zirconium copper material is used for welding, chromium will react chemically with the zinc in the galvanized sheet, generating a substance similar to copper, which affects the quality of welding. However, dispersed copper can better solve this problem.


Technical Parameters

Product Name
Spot Welding Copper Electrodes Cap
Samples

 Provided, please contact us.

OEM
Accept Customized
Material
CuCrZr, CuBe2, or According to requirements
Material no. UNS (ASTM)
C18150, C17200, or According to requirements
Material description
Age hardenable Cu alloy with high electrical and thermal conductivity under a high degree of hardness and strength.
Size
According to customer's requirements
Application
Spot Welding





Advantages



1) The chromium zirconium copper electrode achieves a good balance among the four performance indicators of the welding electrode:



Excellent conductivity - ensures low impedance of the welding circuit and achieves excellent welding quality



High temperature mechanical properties - High softening temperature ensures the performance and lifespan of electrode materials in high-temperature welding environments



Wear resistance - electrodes are not easily worn, extending their lifespan and reducing costs



High hardness and strength - ensuring that the electrode head works under a certain pressure and is not easily deformed or crushed, ensuring welding quality



2) Electrodes are a type of consumables used in industrial production, with a relatively large amount of consumption. Therefore, their price and cost are also important factors to consider. Compared to their excellent performance, chromium zirconium copper electrodes are relatively cheap and can meet production needs.



3) Chromium zirconium copper electrode is suitable for spot welding and projection welding of carbon steel plate, stainless steel plate, coated plate and other parts. Chromium zirconium copper material is suitable for manufacturing electrode caps, electrode connecting rods, electrode heads, electrode holding rods, projection welding special electrodes, rolling welding wheels, conductive nozzles and other electrode parts.





Different Types of Electrodes



Weld Pro Certified Welder Types Of Resistance Welding Electrode Cap Tip 0





General Types

Weld Pro Certified Welder Types Of Resistance Welding Electrode Cap Tip 1

Weld Pro Certified Welder Types Of Resistance Welding Electrode Cap Tip 2

Images



Weld Pro Certified Welder Types Of Resistance Welding Electrode Cap Tip 3



Please note: the electrode cap tip can be custom-made according to your requirements.





Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.


8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.


Weld Pro Certified Welder Types Of Resistance Welding Electrode Cap Tip 4
Weld Pro Certified Welder Types Of Resistance Welding Electrode Cap Tip 5Weld Pro Certified Welder Types Of Resistance Welding Electrode Cap Tip 6

Weld Pro Certified Welder Types Of Resistance Welding Electrode Cap Tip 7

Weld Pro Certified Welder Types Of Resistance Welding Electrode Cap Tip 8

Weld Pro Certified Welder Types Of Resistance Welding Electrode Cap Tip 9

Weld Pro Certified Welder Types Of Resistance Welding Electrode Cap Tip 10
