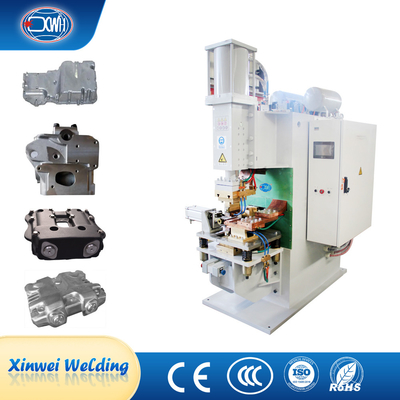

Metal Hand Spot And Projection Welder Spot Welding Machine For Shock Absorber

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: D(N)B--100, D(N)B--160, D(N)B--200, D(N)B--250
Minimum Order Quantity: 1
Price: USD28000-USD38000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/month
Detail Information
Product Name: Shock Absorber Welding Machine Machine Type: Projection Spot Welding Machine
Application: Shock Absorber Welding Function: Projection Welder
Keyword: Projection Welding Machine Welding Material: Alloy Metal Aluminum Stainless Steel
Max. Welding Capacity: 6+6mm After Warranty Service: Free Spare Video Technical Support, Online Support And Spare Parts Parts, Field Installation, Commissioning And Training
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training Certification: CE
High Light:

AC 380V Spot Welding Machine

,

Metal Hand Spot Projection Welder

,

Shock Absorber Spot Projection Welder


Product Description





Metal Hand Spot And Projection Welder Spot Welding Machine For Shock Absorber



Product Introduction


The shock absorber welding machine is designed to meet the requirements of carbon steel workpieces with protruding points on the brackets and inner plates provided by customers. It is a customized stationary spot and projection welding machine. This type of welding machine is widely used in fields such as automobile manufacturing, home appliance manufacturing, sheet metal processing, etc.




 Technical Parameters



Models/Item DN(B)-100 D(N)B--160 D(N)B--200 D(N)B--250
Rated power (KVA) 100 160 200 250
Power input(V) 3φAC 380V 3φAC 380V 3φAC 380V 3φAC 380V
Max. short circuit current(KA) 30 40 40 45
Max. force (N) 6000 6000 10000 15000
Electrode length(MM) 450 450 450 500
Working stroke(MM) 80 80 80 80
Cooling consumption(L/min) 20 20 20 20
Max.welding capacity(MM) 3.0+3.0 4.0+4.0 5.0+5.0 6.0+6.0





Advantages



1. Special fixtures can accurately locate products with high precision



2. Safe and fast production process



3. DC power supply, stable current output, and good product quality



4. Short welding time and high production efficiency

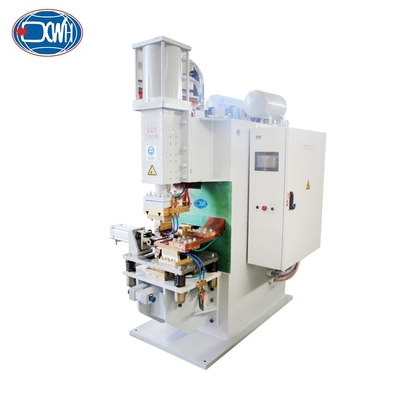

Major Structure



Metal Hand Spot And Projection Welder Spot Welding Machine For Shock Absorber 0

Metal Hand Spot And Projection Welder Spot Welding Machine For Shock Absorber 1

Use and Maintenance of Welding Machines



1. When there is water accumulation in the air filter, close the intake valve to automatically drain the water accumulation.

2. During the use of the welding machine, the workpiece should not be randomly touched or collided with various parts of the welding machine.

3. Regularly inspect and replace damaged components, and replace water and air hoses in a timely manner.

4. The welding table should be cleaned daily and the electrode heads should be trimmed.

5. The water and air systems should be regularly inspected to prevent leakage; No looseness is allowed in the fastening parts.





Reference Pictures



Metal Hand Spot And Projection Welder Spot Welding Machine For Shock Absorber 2





Metal Hand Spot And Projection Welder Spot Welding Machine For Shock Absorber 3

Metal Hand Spot And Projection Welder Spot Welding Machine For Shock Absorber 4




Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.


Metal Hand Spot And Projection Welder Spot Welding Machine For Shock Absorber 5
Metal Hand Spot And Projection Welder Spot Welding Machine For Shock Absorber 6
Metal Hand Spot And Projection Welder Spot Welding Machine For Shock Absorber 7
Metal Hand Spot And Projection Welder Spot Welding Machine For Shock Absorber 8
Metal Hand Spot And Projection Welder Spot Welding Machine For Shock Absorber 9

Metal Hand Spot And Projection Welder Spot Welding Machine For Shock Absorber 10
