Single Phase Shock Absorber Spot Welding Machine Spot Welder Price

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: D(N)B--100, D(N)B--160, D(N)B--200, D(N)B--250
Minimum Order Quantity: 1
Price: USD28000-USD38000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/month
Detail Information
Product Name: Shock Absorber Welding Machine Machine Type: Projection Welder
Application: Shock Absorber Welding Function: Spot And Projection Welder Spot Welding Machine
Keyword: Pneumatic Projection Welding Machine Welding Material: Alloy Metal Aluminum Stainless Steel
Max. Welding Capacity: 6+6mm After Warranty Service: Free Spare Video Technical Support, Online Support And Spare Parts Parts, Field Installation, Commissioning And Training
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training Certification: CE
High Light:

Shock Absorber Spot Welding Machine

,

Shock Absorber Spot Welder

,

Pneumatic Projection Welding Machine


Product Description





Single Phase Shock Absorber Spot Welding Machine Spot Welder Price



Product Introduction

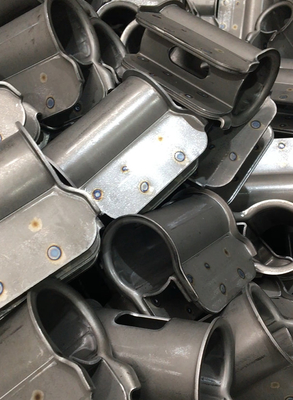

The shock absorber welding machine is designed to meet the requirements of carbon steel workpieces with protruding points on the brackets and inner plates provided by customers. It is a customized stationary spot and projection welding machine. This type of welding machine is widely used in fields such as automobile manufacturing, home appliance manufacturing, sheet metal processing, etc.




 Technical Parameters



Models/Item DN(B)-100 D(N)B--160 D(N)B--200 D(N)B--250
Rated power (KVA) 100 160 200 250
Power input(V) 3φAC 380V 3φAC 380V 3φAC 380V 3φAC 380V
Max. short circuit current(KA) 30 40 40 45
Max. force (N) 6000 6000 10000 15000
Electrode length(MM) 450 450 450 500
Working stroke(MM) 80 80 80 80
Cooling consumption(L/min) 20 20 20 20
Max.welding capacity(MM) 3.0+3.0 4.0+4.0 5.0+5.0 6.0+6.0





Advantages



1. The upper electrode is pressurized by a cylinder, making pressure adjustment convenient and accurate;

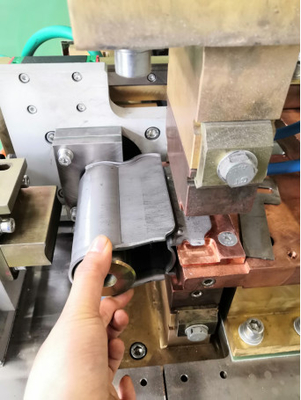

2. Using a welding system to simultaneously weld both sides of the bracket and the inner plate of the bracket, with a total of 10 welding protrusions, the operator places the workpiece into the positioning fixture, which can achieve automatic positioning welding and ensure the accuracy of the workpiece after welding and welding quality;



3. The positioning fixture should be made of copper as much as possible to reduce the heating of the fixture;



4. Adopting a direct solenoid valve to accelerate the reaction speed, significantly increase the operating speed of the upper pressure head, and reduce air flow loss;

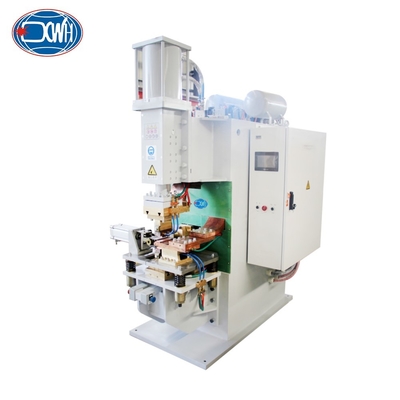

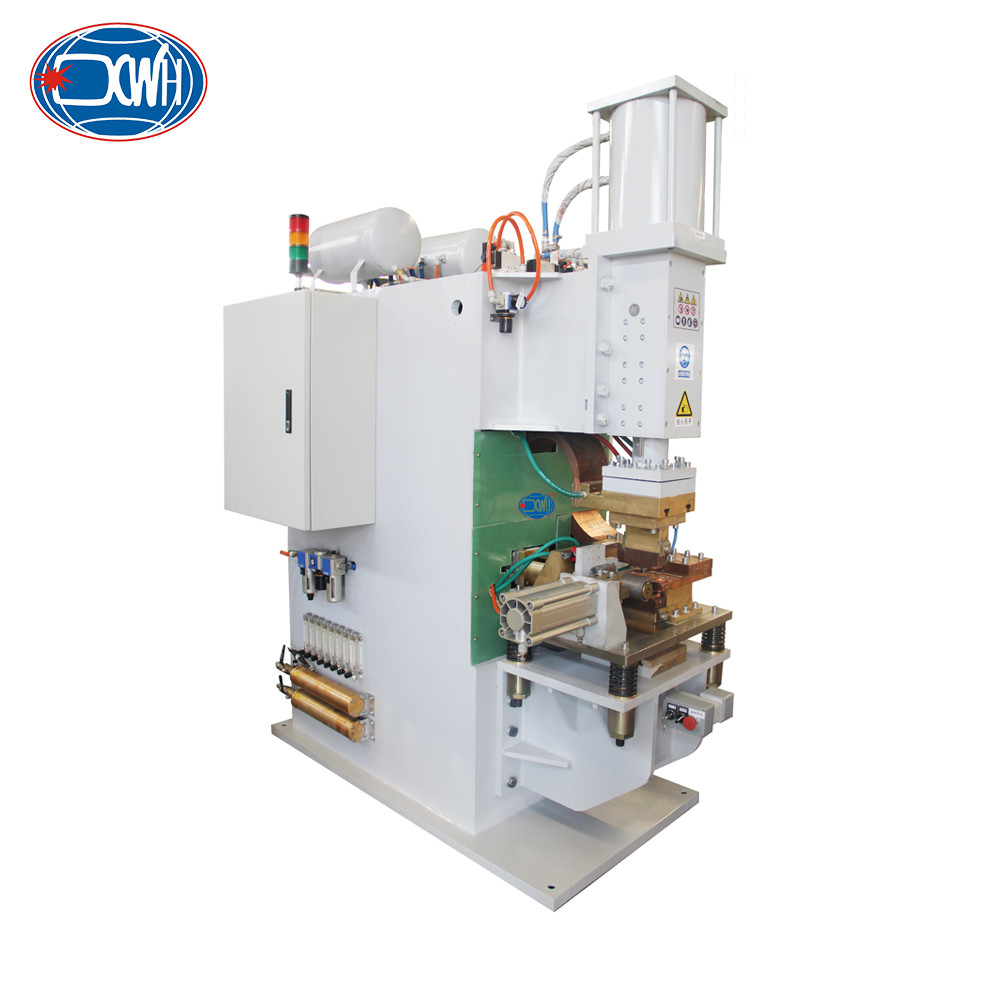

Major Structure



Single Phase Shock Absorber Spot Welding Machine Spot Welder Price 0

Single Phase Shock Absorber Spot Welding Machine Spot Welder Price 1

Use and Maintenance of Welding Machines



1. When there is water accumulation in the air filter, close the intake valve to automatically drain the water accumulation.

2. During the use of the welding machine, the workpiece should not be randomly touched or collided with various parts of the welding machine.

3. Regularly inspect and replace damaged components, and replace water and air hoses in a timely manner.

4. The welding table should be cleaned daily and the electrode heads should be trimmed.

5. The water and air systems should be regularly inspected to prevent leakage; No looseness is allowed in the fastening parts.





Reference Pictures



Single Phase Shock Absorber Spot Welding Machine Spot Welder Price 2





Single Phase Shock Absorber Spot Welding Machine Spot Welder Price 3

Single Phase Shock Absorber Spot Welding Machine Spot Welder Price 4




Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.


Single Phase Shock Absorber Spot Welding Machine Spot Welder Price 5
Single Phase Shock Absorber Spot Welding Machine Spot Welder Price 6
Single Phase Shock Absorber Spot Welding Machine Spot Welder Price 7
Single Phase Shock Absorber Spot Welding Machine Spot Welder Price 8
Single Phase Shock Absorber Spot Welding Machine Spot Welder Price 9

Single Phase Shock Absorber Spot Welding Machine Spot Welder Price 10
