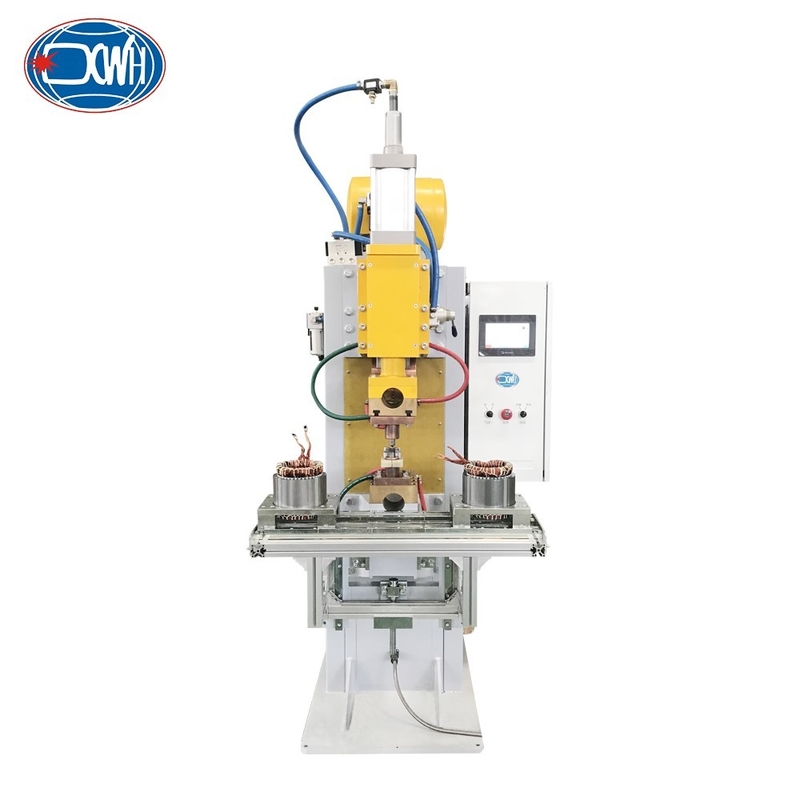

Foot Pedal China Hand Cnc Industrial Resistance Copper Wire Spot Welding Machines
Brand Name:
XWH
Model Number:
D(N)B--100, D(N)B--160, D(N)B--200, D(N)B--250
Place of Origin:
China
Certification:
CE
Minimum Order Quantity:
1
Price:
USD28000-USD38000
Supply Ability:
50 sets/month
Delivery Time:
15 working days
Inquiry Now
Get A Quote
Specifications
Highlight Features
Cnc Spot Welding Machines
,Foot Pedal Cnc Spot Welder
,Resistance Copper Wire Spot Welder
Product Name:
Copper Wire Spot Welding Machine
Machine Type:
Projection Welding Machine
Application:
Welding Copper Wires
Function:
Copper Spot Welding Machine
Keyword:
Spot And Projection Welder Spot Welding Machine
Welding Material:
Copper
Max. Welding Capacity:
6+6mm
After Warranty Service:
Free Spare Video Technical Support, Online Support And Spare Parts Parts, Field Installation, Commissioning And Training
After-sales Service Provided:
Free Spare Parts, Field Installation, Commissioning And Training
Certification:
CE
Product Description
Foot Pedal China Hand Cnc Industrial Resistance Copper Wire Spot Welding Machines
Product Introduction
Standard fixed spot welding machines is mainly used for welding low-carbon steel, coated steel plates, stainless steel, and aluminum plates, and can also weld standard parts and components. And the welding machine is a copper wire welding machine, which is a fixed point projection welding machine specially designed for welding copper wire according to customer requirements. It is a welding equipment that does not move the machine and moves the workpiece. The welding machine has a simple and compact structure, novel and beautiful design, and stable performance; Features such as safe, reliable, efficient, and energy-saving use.
Technical Parameters
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
(1) The upper electrode is pressurized by air cylinder, and the pressure adjustment is convenient and accurate. The welding machine is equipped with a special air tank for standby;
(2) The secondary conductor adopts the upper insulation mode, and the insulation performance is stable and reliable;
(3) The main circuit adopts water-cooled high-power silicon controlled rectifier module, with strong, stable and reliable output;
(4) The water circuit elements are all made of copper and stainless steel, and equipped with visual water flow display to display the water flow;
(5) The operation is controlled by foot switch, with high production efficiency and low labor intensity.
Major Structure

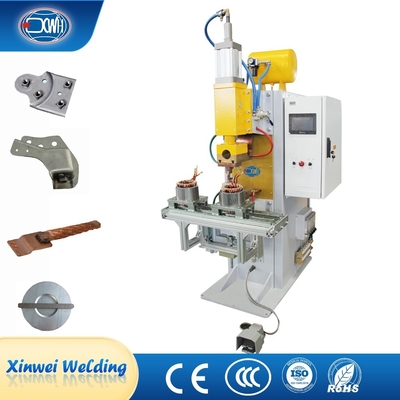

Reference Pictures
Frequently Asked Questions
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
