| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | D(N)B--100, D(N)B--160, D(N)B--200, D(N)B--250 |
| Minimum Order Quantity: | 1 |
| Price: | USD28000-USD38000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Product Name: | Copper Wire Spot Welding Machine | Machine Type: | Projection Welding Machine |
|---|---|---|---|
| Application: | Copper Spot Welder | Function: | Copper Spot Welding Machine |
| Keyword: | Projection Welding Machine Price | Welding Material: | Copper |
| Max. Welding Capacity: | 6+6mm | After Warranty Service: | Free Spare Video Technical Support, Online Support And Spare Parts Parts, Field Installation, Commissioning And Training |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | Certification: | CE |
| Highlight: | Industrial Copper Wire Spot Welder,Resistance Copper Wire Spot Welder,380volt Cnc Welding Machine |
||
380volt Cnc Welding Resistance Industrial Copper Wire Spot Welder Welding Machines
Product Introduction
Standard projection welding machine is mainly used for welding plates of low-carbon steel, stainless steel, aluminum alloy, and some non-ferrous metals, as well as projection welding between plates, nuts, and bolts. And this welding machine is a copper wire welding machine, which is a fixed point projection welding machine specially designed for welding copper wire according to customer requirements. It is a welding equipment that does not move the machine and moves the workpiece. The welding machine has a simple and compact structure, novel and beautiful design, and stable performance; Features such as safe, reliable, efficient, and energy-saving use.
Technical Parameters
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
1. The body of the stationary spot welding machine is cast by the thickened steel plate, and the body is stable.
2. The upper and lower electrodes are made of highly conductive materials with auxiliary pressure, which has good welding effect and high efficiency. The internal water cooling system can reduce the welding temperature.
3. Spot welder can store up to 15 groups of welding modes, which can meet the requirements of different workpieces.
4. Widely used in aerospace, automobile and automobile parts manufacturing,new energy and power battery and other special areas of high quality welding requirements.
Major Structure

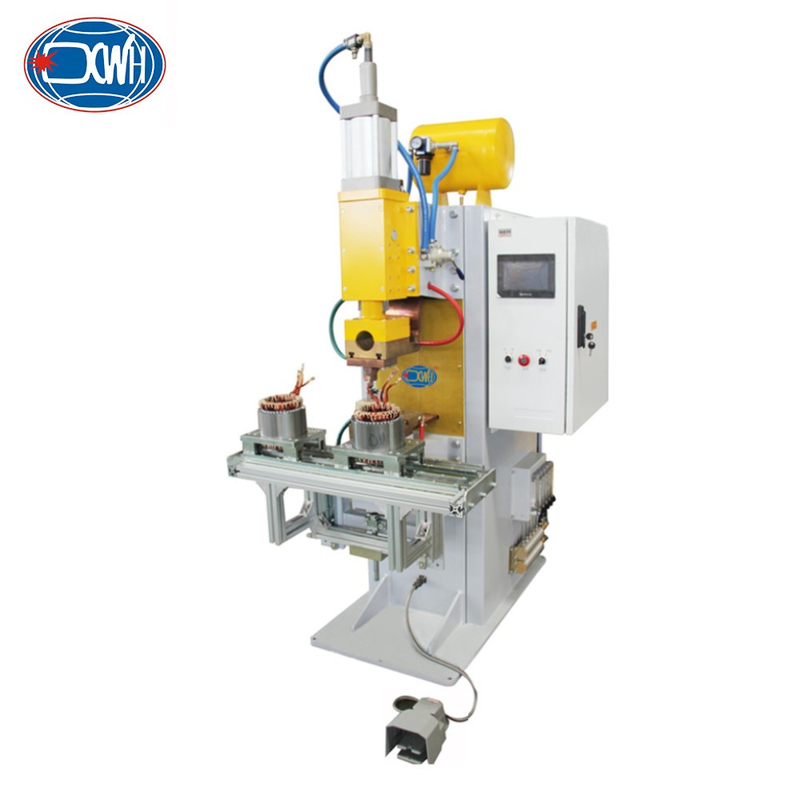

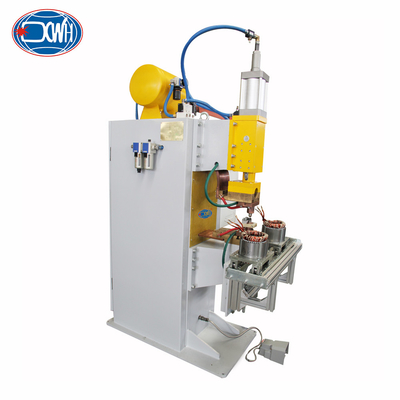

Reference Pictures
