| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Model Number: | D(N)B--100, D(N)B--160, D(N)B--200, D(N)B--250 |
| Minimum Order Quantity: | 1 |
| Price: | USD28000-USD38000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Certification: | CE | Product Name: | Copper Wire Spot Welding Machine |
|---|---|---|---|
| Machine Type: | Projection Welding Machine | Application: | Spot Welders Copper |
| Function: | Copper Spot Welding Machine | Keyword: | Manual Spot Welding Machine |
| Welding Material: | Copper | Max. Welding Capacity: | 6+6mm |
| After Warranty Service: | Free Spare Video Technical Support, Online Support And Spare Parts Parts, Field Installation, Commissioning And Training | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| High Light: | Medium Frequency Pneumatic Spot Welder,Copper Wire Spot Welding Machine,Copper Wire Pneumatic Spot Welder |
||

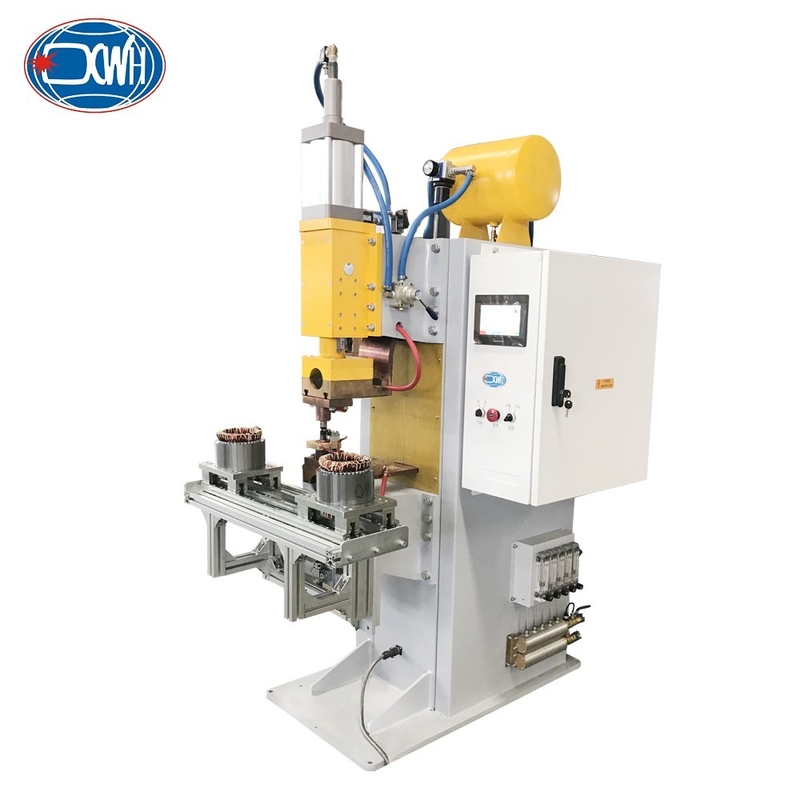

Medium Frequency Pneumatic Spot Welder Welders Copper Wire Spot Welding Machine
Product Introduction
Standard fixed spot projection welding machine is a dual purpose spot projection welding machine produced by our company, mainly used for the welding of low-carbon steel, stainless steel, and some non-ferrous metals. It can also achieve the welding of plate to plate, plate to projection welding nuts, and bolts. And this welding machine is a copper wire welding machine, which is a fixed point projection welding machine specially designed for welding copper wire according to customer requirements. It is a welding equipment that does not move the machine and moves the workpiece. The welding machine has a simple and compact structure, novel and beautiful design, and stable performance; Features such as safe, reliable, efficient, and energy-saving use.
Technical Parameters
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
1. Stable machine structure upside and downside of electrodes apply the pressure mode with assistant stroke. The welding efficiency is much higher.
2. The transformer of welding machine adopts the special resistance welding machine, the silicon steel slice is featured of high magnetic: the inner water- cooled by force; stronger power and high duty ratio.
3. Controlled by micro-computer and can saved at most 16 sets of welding settings, which is quite convenient for different kinds of welding sheets.
4. Widely applicable to automobile manufacturing, production of house applications,hardware fittings and so on.
Major Structure

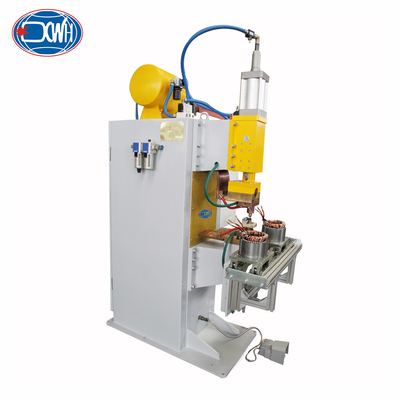

Reference Pictures
