| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Model Number: | FN-80-H, FN-100-H, FN-160-H, FN-100-E, FN-160-E |
| Minimum Order Quantity: | 1 Set |
| Price: | $6000.00 - $7000.00 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Features: | High Efficiency | Certification: | CE |
|---|---|---|---|
| Product Name: | Seam Welders | Application: | Welding Stainless Steel Bucket |
| Function: | Seam Welding Machine | Machine Type: | Resistance Welding Machine |
| Welding Material: | Alloy Metal Aluminum Stainless Steel | Type: | Longitudinal Seam Welding Machine |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| High Light: | Longitudinal Automatic Seam Welding Machine,Longitudinal Automatic Seam Welders,160kva Automatic Seam Welding Machine |
||
The driving mode of the seam welding machine can be active with upper or lower electrodes, making it convenient for users to choose. The main circuit adopts water-cooled high-power thyristor components, with reliable quality and stable current output. There are two forms of welding: longitudinal welding and transverse welding, which are suitable for welding various workpieces. Widely applicable to metal manufacturing and processing industries such as hardware, home appliances, automobiles, basin making, and can making.
|
Model Item
|
Unit
|
FN-80-H
|
FN-100-H
|
FN-160-H
|
FN-100-E
|
FN-160-E
|
|
Rated power |
KVA
|
80
|
100
|
160
|
100
|
160
|
|
Voltage input
|
V
|
380
|
380
|
380
|
380
|
380
|
|
Frequency
|
Hz
|
50
|
50
|
50
|
50
|
50
|
|
Max. short circuit current
|
KA
|
26
|
30
|
40
|
30
|
40
|
|
Working stroke |
mm |
100 |
100
|
100 |
100 |
100
|
|
Welding efficiency
|
m/min
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
|
Max. force
|
N
|
6000
|
6000
|
7800
|
6000
|
7800
|
|
Max. welding capacity
|
mm
|
1.2+1.2
|
1.5+1.5
|
2.0+2.0
|
1.5+1.5
|
2.0+2.0
|
|
Motor Power |
W
|
550
|
750
|
750
|
750
|
400
|
|
Cooling consumption
|
L/min
|
8
|
8
|
10
|
8
|
10
|
|
Weight
|
Kg
|
380
|
510
|
630
|
530
|
700
|
Advantages
1.The welding process is stable and easy to adjust.
2.Internal cooling used in the welder, while external cooling of the welding wheel.
3.The rotating part is embedded silver tile structure, the conductive seat is fully sealed and lubricating, which improves the conductivity and the rotation flexibility.
4.Two kinds of welding modes: Horizontal and Vertical.
5.Widely used in hardware fittings, electrical, automobile, fuel tank and other manufacturing industries industry.

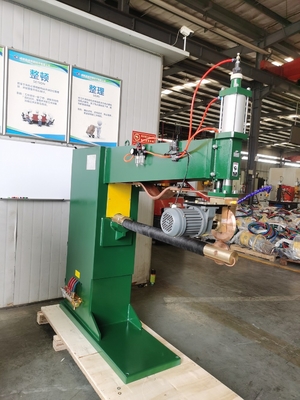

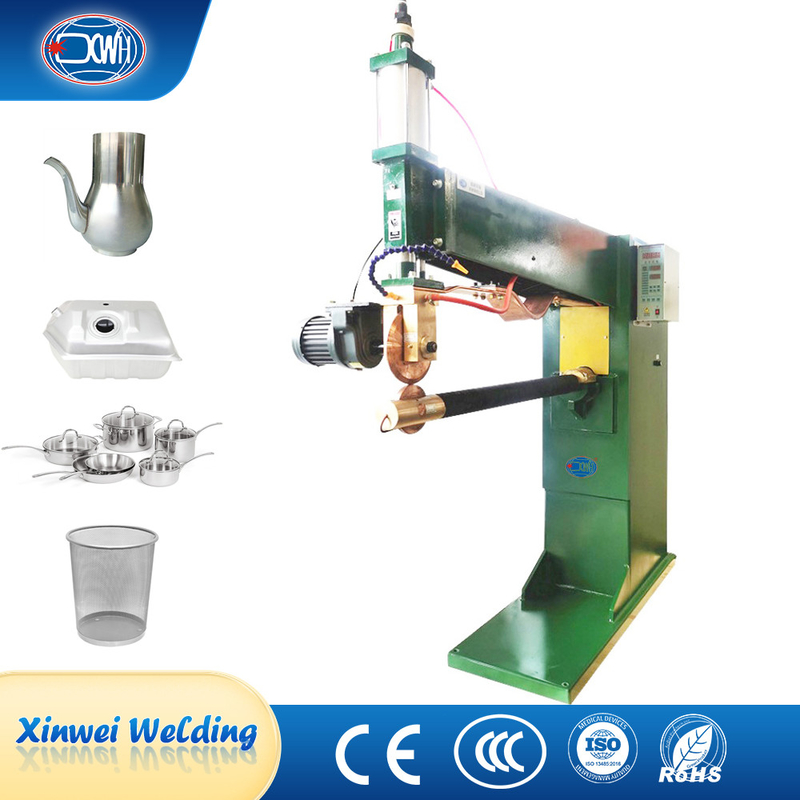

Detail Images
Images
Application
Please note: the welding machine can be custom-made according to your requirements.
