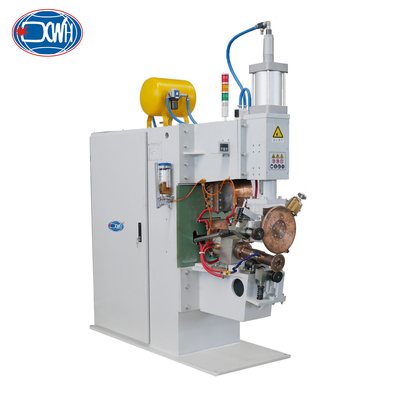

Horizontal Stainless Steel Water Tank Resistance Rolling Seam Welder Welding Machine
Brand Name:
XWH
Model Number:
FN-80-H, FN-100-H, FN-160-H, FN-100-E, FN-160-E
Place of Origin:
China
Certification:
CE
Minimum Order Quantity:
1 Set
Price:
$6000.00 - $7000.00
Supply Ability:
50 sets/month
Delivery Time:
30 Working days
Inquiry Now
Get A Quote
Specifications
Highlight Features
Resistance Rolling Seam Welder
,Horizontal Resistance Rolling Seam Welder
,Horizontal Seam Welding Machine
Features:
Horizontal Type Seam Welder
Product Name:
Cnc Resistance Seam Welding Machine
Application:
Stainless Steel Water Tank Seam Welder
Function:
Seam Welder Machine
Machine Type:
Rolling Seam Welding Machine
Welding Material:
Alloy Metal Aluminum Stainless Steel
Type:
Roller Seam Welder
After Warranty Service:
Video Technical Support, Online Support And Spare Parts
After-sales Service Provided:
Free Spare Parts, Field Installation, Commissioning And Training
Certification:
CE
Product Description
Horizontal Stainless Steel Water Tank Resistance Rolling Seam Welder Welding Machine
Product Description
Seam welding is a method of forming permanent metal connections. During welding, the weldment heats up locally through an electric current and applies pressure at the contact point of the weldment to form a solder joint. Seam welding is widely used in industries such as automobiles, motorcycles, tractors, jet engines, food canning, bicycles, etc.
Technical Parameters
|
Model Item
|
Unit
|
FN-80-H
|
FN-100-H
|
FN-160-H
|
FN-100-E
|
FN-160-E
|
|
Rated power |
KVA
|
80
|
100
|
160
|
100
|
160
|
|
Voltage input
|
V
|
380
|
380
|
380
|
380
|
380
|
|
Frequency
|
Hz
|
50
|
50
|
50
|
50
|
50
|
|
Max. short circuit current
|
KA
|
26
|
30
|
40
|
30
|
40
|
|
Working stroke |
mm |
100 |
100
|
100 |
100 |
100
|
|
Welding efficiency
|
m/min
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
|
Max. force
|
N
|
6000
|
6000
|
7800
|
6000
|
7800
|
|
Max. welding capacity
|
mm
|
1.2+1.2
|
1.5+1.5
|
2.0+2.0
|
1.5+1.5
|
2.0+2.0
|
|
Motor Power |
W
|
550
|
750
|
750
|
750
|
400
|
|
Cooling consumption
|
L/min
|
8
|
8
|
10
|
8
|
10
|
|
Weight
|
Kg
|
380
|
510
|
630
|
530
|
700
|
Advantages
1. High precision machining of the conductive rotating shaft surface reduces friction and electrical contact losses, which can reduce production costs and save electricity;
2. Selected high-quality alloy imported brushes with extra large contact area, reducing heat generation and extending service life;
3. Precision mechanical processing uses CNC machine tools to process various components, ensuring the reliability and accuracy of each component;
4. Advanced controller with excellent electrical performance and advanced structure, with powerful performance and upgrade function;
5. Widely used in metal manufacturing and processing industries such as hardware, home appliances, automobiles, motorcycle fuel tanks, basin making, and can making.

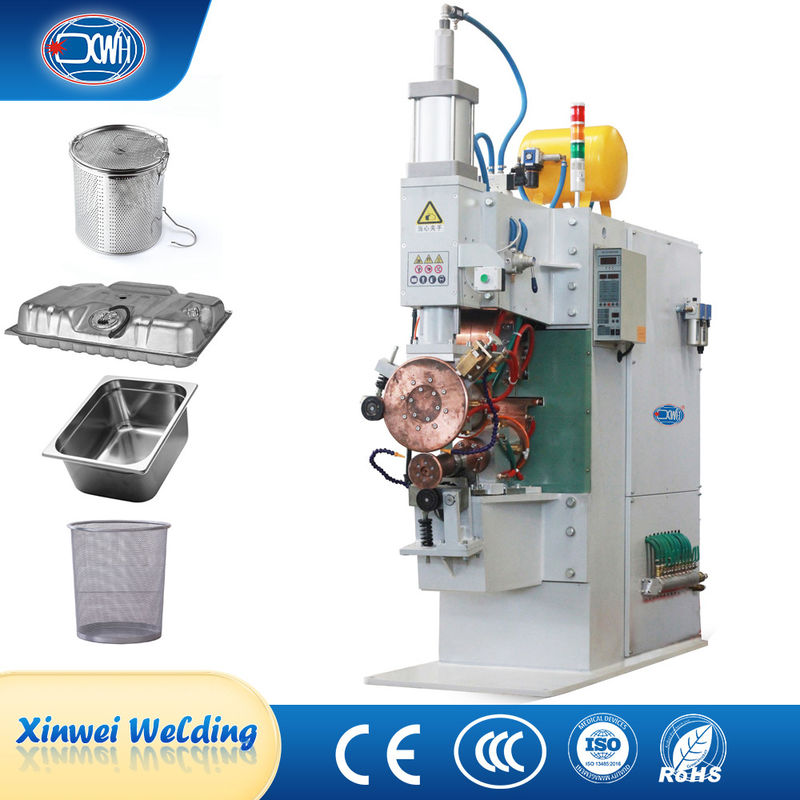

Detail Images
Images
Application
Please note: the welding machine can be custom-made according to your requirements.
Frequently Asked Questions
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
