Pneumatic 220v Chinese Single Phase Industrial Diffusion Welding Plant Machine

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: TNB-250, TNB-300, TNB-350, TNB-400
Minimum Order Quantity: 1
Price: USD12000-USD13000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/month
Detail Information
Product Name: Diffusion Copper Welding Machine Application: Copper Welding Machines
Function: For Welding Copper Strips Machine Type: Resistance Projection Welding Machine
Feature: Resistance Welding Machine Welding Material: Aluminum, Stainless Steel, Metal Steel
Max. Welding Capacity: 6+6mm After Warranty Service: Video Technical Support, Online Support And Spare Parts
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training Certification: CE
High Light:

Industrial Diffusion Welding Plant Machine

,

Pneumatic Diffusion Welding Plant Machine

,

220v Diffusion Welding Machine


Product Description



Pneumatic 220v Chinese Single Phase Industrial Diffusion Welding Plant Machine



Product Description



The variable frequency polymer diffusion welding machine is a welding method that contacts the surface of the workpiece at a certain temperature and pressure, causing fine liquid phases to form on the surface of the workpiece and gradually diffuse with each other to achieve bonding. It mainly welds the same multi-layer copper strip, aluminum strip, stainless steel strip, titanium zirconium tantalum strip, and can also weld multiple layers of dissimilar materials. Widely used for bus soft connection in industries such as new energy vehicles, power, petrochemical, and smelting.




Technical Parameters



Item/Model
TNB-250
TNB-300
TNB-350
TNB-400
Rated Power(KVA)
250
300
350
400
Input Voltage(V)
220V/380V
220V/380V
220V/380V
220V/380V
Max. Short Circuit Current (KA)
35
45
55
60
Duty cycle(%)
50
50
50
50
Min.Force At Electrodes(N)
1000
1000
1000
1000
Electrodes Min. Distance( MM)
75
75
75
75
Rated Cooling Hydraulic Pressure( MPA)
0.05
0.05
0.05
0.05
Cooling consumption(L/min)
20
20
20
20
Max.Welding Capacity(Sheet Copper)( MM)
7+7
8+8
10+10
13+13





Advantages



1. The operation is simple and there is no need for any form of flux,reducing operating costs



2. The diffusion welding machine has long service life and high pressure as well as strong stability performance



3. The polymer diffusion welding machine has fast welding speed, good welding effect, and sturdy and stable finished product quality



4. The welding effect will be better for most materials, especially in welding metals with high thermal conductivity such as aluminum, aluminum alloys, and copper, having better results and more reliable quality.



5. Widely used for welding soft connection of copper parts such as new energy vehicles, electric vehicles, power electricians, etc

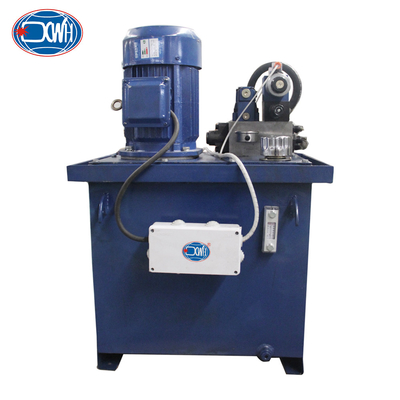

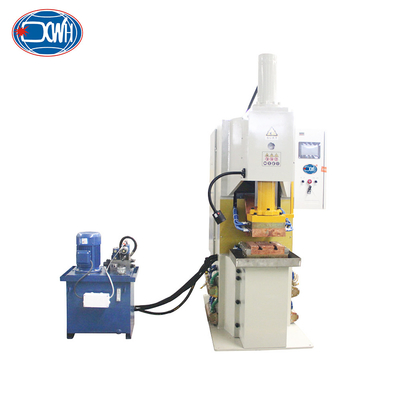

Product Structure



Pneumatic 220v Chinese Single Phase Industrial Diffusion Welding Plant Machine 0








Pneumatic 220v Chinese Single Phase Industrial Diffusion Welding Plant Machine 1





Application


Pneumatic 220v Chinese Single Phase Industrial Diffusion Welding Plant Machine 2
Pneumatic 220v Chinese Single Phase Industrial Diffusion Welding Plant Machine 3
Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.


Pneumatic 220v Chinese Single Phase Industrial Diffusion Welding Plant Machine 4
Pneumatic 220v Chinese Single Phase Industrial Diffusion Welding Plant Machine 5
Pneumatic 220v Chinese Single Phase Industrial Diffusion Welding Plant Machine 6
Pneumatic 220v Chinese Single Phase Industrial Diffusion Welding Plant Machine 7

Pneumatic 220v Chinese Single Phase Industrial Diffusion Welding Plant Machine 8
