Place of Origin: | China |
---|---|
Brand Name: | XWH |
Model Number: | TNB-250, TNB-300, TNB-350, TNB-400 |
Minimum Order Quantity: | 1 |
Price: | USD12000-USD13000 |
Packaging Details: | Wooden Case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50 sets/month |
Certification: | CE | Product Name: | Diffusion Welding Machine |
---|---|---|---|
Application: | Copper Strips Welding Machine | Function: | Resistance Welders Welding Machine |
Machine Type: | Projection Welder | Feature: | Cnc Welding Machine |
Welding Material: | Aluminum, Stainless Steel, Metal Steel | Max. Welding Capacity: | 6+6mm |
After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
High Light: | Polymer Diffusion Welding Machine,Copper Strips Diffusion Welding Machine,Cnc Resistance Welding Machine |

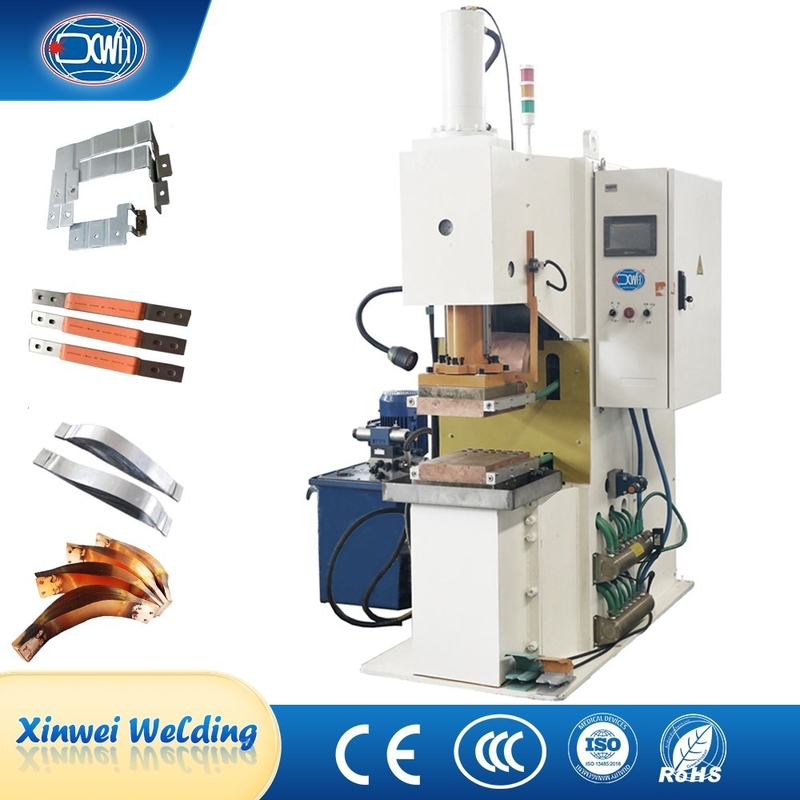

Resistance China Industrial Polymer Diffusion Welding Machine For Copper Strips
Product Description
The diffusion welding machine is customized for welding copper strips, using hydraulic pressure and vertical movement of the upper and lower electrodes. Each model has the characteristics of simple and compact structure, novel and beautiful appearance, stable performance, safe and reliable use, high efficiency and energy conservation.
Technical Parameters
Item/Model
|
TNB-250
|
TNB-300
|
TNB-350
|
TNB-400
|
Rated Power(KVA)
|
250
|
300
|
350
|
400
|
Input Voltage(V)
|
220V/380V
|
220V/380V
|
220V/380V
|
220V/380V
|
Max. Short Circuit Current (KA)
|
35
|
45
|
55
|
60
|
Duty cycle(%)
|
50
|
50
|
50
|
50
|
Min.Force At Electrodes(N)
|
1000
|
1000
|
1000
|
1000
|
Electrodes Min. Distance( MM)
|
75
|
75
|
75
|
75
|
Rated Cooling Hydraulic Pressure( MPA)
|
0.05
|
0.05
|
0.05
|
0.05
|
Cooling consumption(L/min)
|
20
|
20
|
20
|
20
|
Max.Welding Capacity(Sheet Copper)( MM)
|
7+7
|
8+8
|
10+10
|
13+13
|
Advantages
1. Simple operation, no need for any form of flux, reduce operating costs
2. Long service life, high pressure, and strong stability performance
Fast welding speed, good welding effect, and sturdy and stable finished product quality
3. Applied to most metal materials, the welding effect will be better, especially in welding metals with high thermal conductivity such as aluminum, aluminum alloys, and copper, which have better results and more reliable quality.
4. Suitable for soft connection welding of copper parts such as new energy vehicles, electric vehicles, power electricians, etc
Product Structure
Images

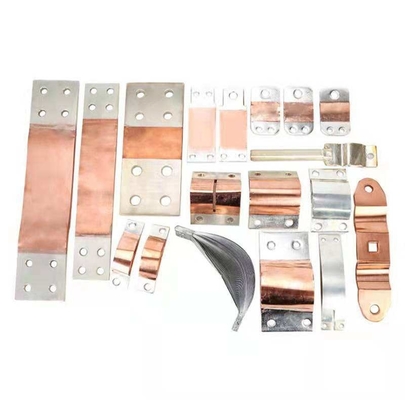

Application
