Pneumatic 3Mm Copper Strips Resistance Gas Hydraulic Diffusion Welding Machine

Pneumatic 3Mm Copper Strips Resistance Gas Hydraulic Diffusion Welding Machine

Brand Name:	XWH
Model Number:	D(N)B--100，D(N)B--160, D(N)B--200, D(N)B--250
MOQ:	1
Price:	USD11500-USD12500
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	50 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHs

Product Name:

Resistance Gas Hydraulic Diffusion Welding Machine

Application:

Welding Copper Strips

Function:

Copper Flexible Conductor Molecular Diffusion Weld

Machine Type:

Polymer Diffusion Welding

Keyword:

Copper Busbar Diffusion Welding Machine

Welding Material:

Red Copper

Feature:

Accurate Welding

Warranty:

12 Months Guarantee

After Warranty Service:

Video Technical Support, Online Support And Spare Parts

After-sales Service Provided:

Free Spare Parts, Field Installation, Commissioning And Training

Packaging Details:

Wooden Case

Supply Ability:

50 sets/month

Product Description

Pneumatic 3Mm Copper Strips Resistance Gas Hydraulic Diffusion Welding Machine

Product Introduction:

Pneumatic hydraulic diffusion welding machine is mainly composed of components such as the host frame, pneumatic transmission mechanism, human-computer interaction interface, secondary circuit, welding transformer, welding controller, and water and gas circuit system.It is mainly used to achieve diffusion welding between metal and dissimilar metal molecules.

Features:

1. Insulation protection, safe and reliable. The secondary side circuit adopts a pressurized cylinder seat and upper arm insulation method, which facilitates direct installation and welding work on the lower seat without worrying about short circuits. It is simple and practical.

2. Welding power supply, energy-saving and efficient. The main welding circuit adopts a fully water-cooled resistance welding transformer and rectifier, with strong output power.

3. The operation is controlled by a foot switch, which has high production efficiency, low labor intensity, and conforms to the operating habits of operators.

4. The equipment is equipped with air pressure and water pressure switches and alarms, which can effectively prevent water shortage or gas welding, thereby protecting the safety of equipment use.

Technical Parameters:

Items Models	DN(B)-100	DN(B)-160	DN(B)-200	DN(B)-250
Rated power (KVA)	100	160	200	250
Power input(V)	3φAC 380V	3φAC 380V	3φAC 380V	3φAC 380V
Max. short circuit current (KA)	30	35	40	45
Duty cycle(%)	50	50	50	50
Max. force(N)	6000	6000	10000	15000
Electrode length( MM)	450	450	450	500
Working stroke( MM)	80	80	80	80
Cooling consumption(L/min)	20	20	20	20
Max. welding capacity(MM)	3.0+3.0	4.0+4.0	5.0+5.0	6.0+6.0

General Structures:

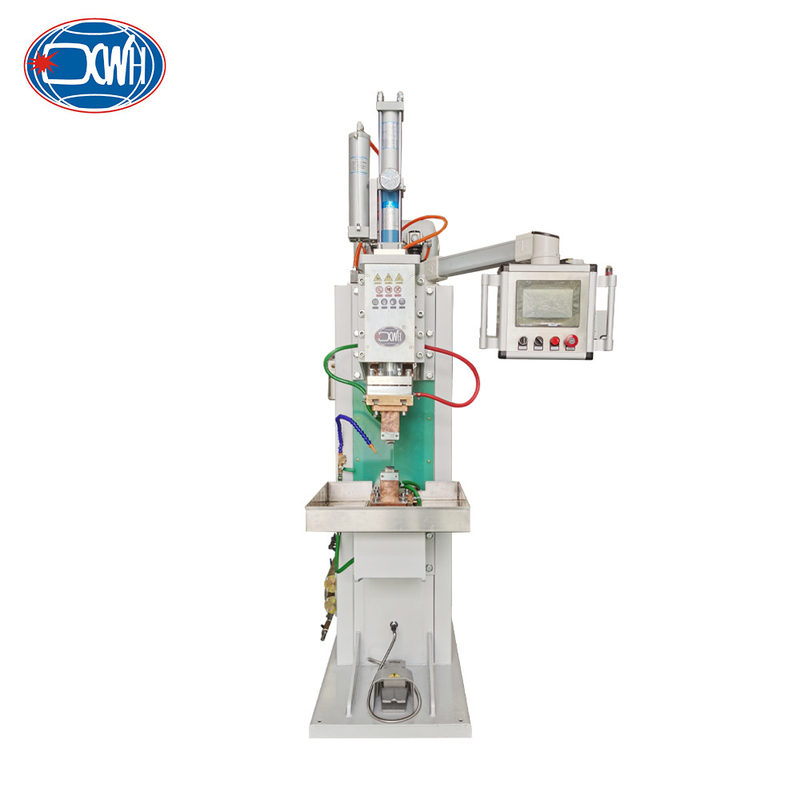

Pneumatic 3Mm Copper Strips Resistance Gas Hydraulic Diffusion Welding Machine 0

Pneumatic 3Mm Copper Strips Resistance Gas Hydraulic Diffusion Welding Machine 1

Detailed Images:

Pneumatic 3Mm Copper Strips Resistance Gas Hydraulic Diffusion Welding Machine 2

Electrode Selection:The upper and lower electrodes can be equipped with tungsten or graphite materials, which can meet the needs of high-temperature welding, high conductivity, and long service life.

Pneumatic 3Mm Copper Strips Resistance Gas Hydraulic Diffusion Welding Machine 3

Hydraulic Cylinders: Adopting aluminum alloy cylinder barrel, low damping sealing ring, and light friction ring combination with hydraulic cylinder, the surface is wear-resistant and has a long service life, achieving extremely high dot speed, electrode pressurization, smooth and fast.

Pneumatic 3Mm Copper Strips Resistance Gas Hydraulic Diffusion Welding Machine 4

Dual Gas Storage Tanks: Dual backup dedicated gas storage tanks, greatly reducing welding pressure fluctuations and ensuring stable welding force.

Pneumatic 3Mm Copper Strips Resistance Gas Hydraulic Diffusion Welding Machine 5

Waterway Components: All waterway components undergo surface treatment to prevent rusting, and waterway drainage is independently discharged to the water tank. Based on the outflow situation, blockages in the waterway can be observed and eliminated.

Scene Images:

Pneumatic 3Mm Copper Strips Resistance Gas Hydraulic Diffusion Welding Machine 6

Welding Test:

Pneumatic 3Mm Copper Strips Resistance Gas Hydraulic Diffusion Welding Machine 8

Application:

Pneumatic 3Mm Copper Strips Resistance Gas Hydraulic Diffusion Welding Machine 9

FAQ:

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
