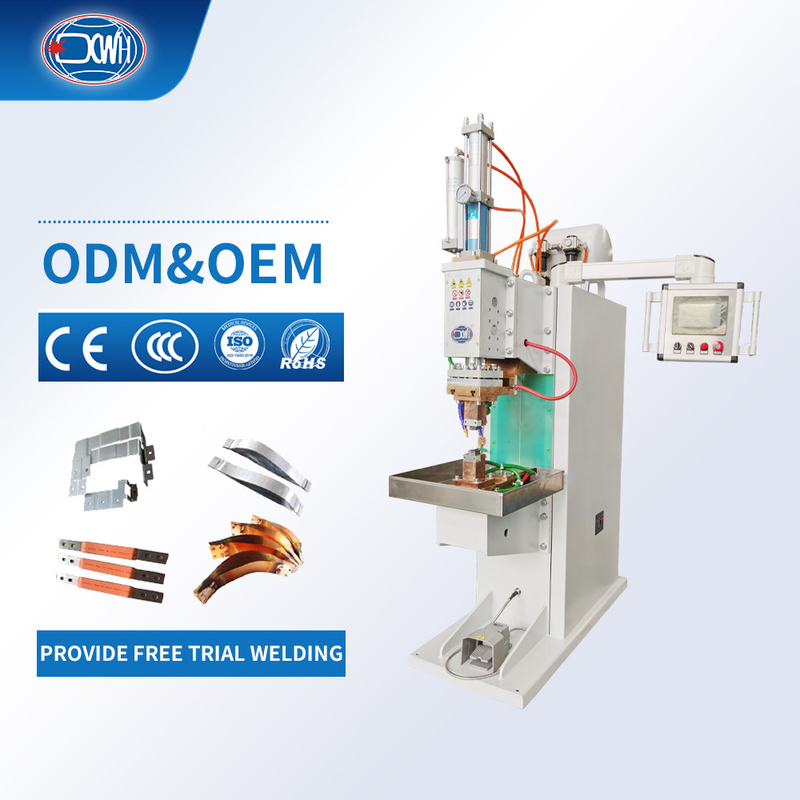

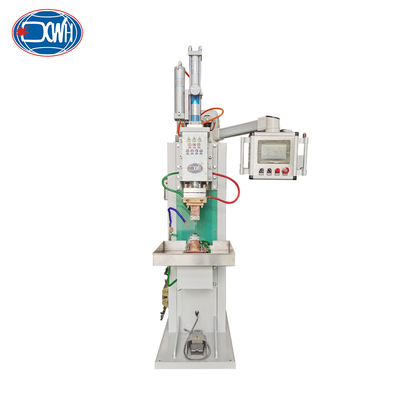

Resistance Copper Busbar Pneumatic Hydraulic Polymer Diffusion Welding Machine

Resistance Copper Busbar Pneumatic Hydraulic Polymer Diffusion Welding Machine

Product Introduction:

Gas-hydraulic diffusion welding machine is an advanced equipment that uses gas or liquid as a pressure medium to achieve welding by causing atomic diffusion at the contact surface of the workpiece under high temperature and pressure. It has fast operating speed, low required energy consumption, stable performance, and a wide working temperature range. Compared to pneumatic systems, it has stable performance, can reach the pressure of hydraulic systems under the same conditions, has a long service life, and operates with low noise. Used for welding various dissimilar metal products such as copper aluminum foil soft connections, copper aluminum bars+nickel sheets, copper steel plates, large-sized soft busbars, conductive tapes, expansion joints, etc. The main function is to achieve diffusion welding between metal and dissimilar metal molecules.

Features:

Technical Parameters:

General Structures:

Detailed Images:

Electrode Selection:The upper and lower electrodes can be equipped with tungsten or graphite materials, which can meet the needs of high-temperature welding, high conductivity, and long service life.

Hydraulic Cylinders: Adopting aluminum alloy cylinder barrel, low damping sealing ring, and light friction ring combination with hydraulic cylinder, the surface is wear-resistant and has a long service life, achieving extremely high dot speed, electrode pressurization, smooth and fast.

Dual Gas Storage Tanks: Dual backup dedicated gas storage tanks, greatly reducing welding pressure fluctuations and ensuring stable welding force.

Waterway Components: All waterway components undergo surface treatment to prevent rusting, and waterway drainage is independently discharged to the water tank. Based on the outflow situation, blockages in the waterway can be observed and eliminated.

Scene Images:

Welding Test:

Application:

FAQ:
