| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Model Number: | XW |
| Minimum Order Quantity: | 5 |
| Price: | USD300-USD350 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets/month |
| Certification: | CE, ISO | Product Name: | Kickless Cable |
|---|---|---|---|
| Application: | Industrial Soldering Accessory | Usage: | Welding Accessroies |
| Conductor Material: | Red Copper | Standard Diameter: | 300mm²/400mm² |
| Standard Length: | 2m-3.5m | Feature: | High Temperature Resistance/High Insulation |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| High Light: | Welder Copper Water Cooled Cables,Spot Welder Kickless Cable,Resistance Welders Kickless Cable |
||

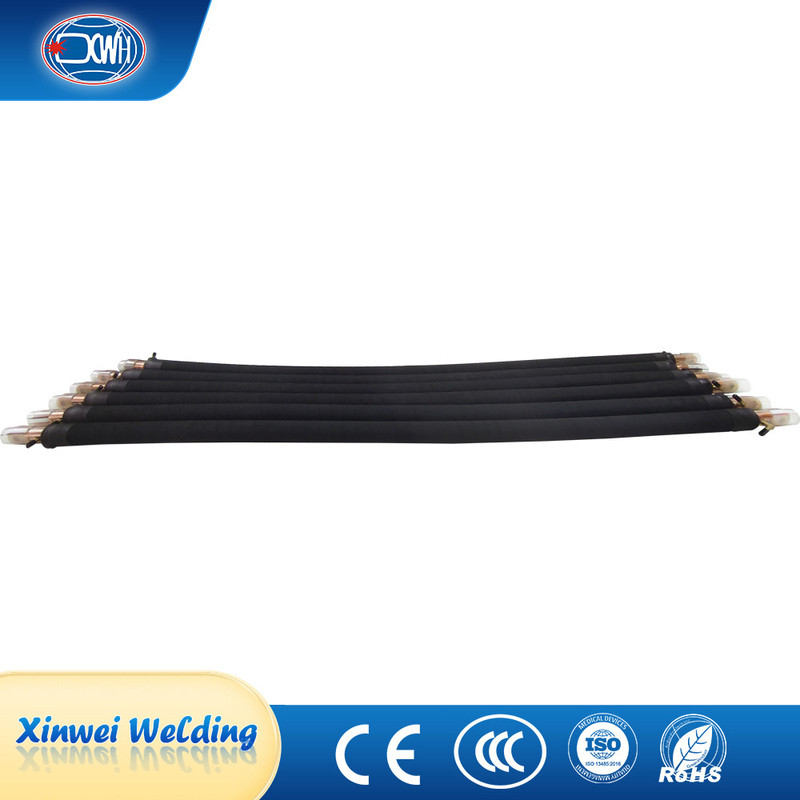

Water Cooled Copper Cables Kickless Cable For Spot Welder Resistance Welders
Kickless cable, is a hollow specialized cable used for high current heating equipment, can be divided into kickless cables and secondary cables. Usually composed of electrodes (cable heads), wires, and external protective sleeves. Mainly used for hanging type spot welding machines or suspension spot welding machines. Kickless Cables are water-cooled cables for use where severe twisting or jumping occurs in the cable. The positive and negative copper ropes inside are positioned alternatively, making them ideal for weld guns and robotic weld machines.
Parameter
| Item Specifiction | 300mm² | 400mm² | Note | |
| Impedance | 2.0M | 480±15μΩ | 358±15μΩ | |
| 2.4M | 593±15μΩ | 445±15μΩ | ||
| Dc impedance value | 2.0M | 475μΩ | 355μΩ | |
| 2.4M | 587μΩ | 440μΩ | ||
| Resistance | 2.0M | 78μΩ | 74μΩ | Calculated Value |
| 2.4M | 82μΩ | 88μΩ | ||
| Power | =0.99 | =0.99 | ||
| Cooling water capacity | 7.0L/MIN | 7.0L/MIN | Pressure Loss of 0.7KG/cm | |
| Temperature rise characteristic | 2.0M | 45℃/5900A | 45℃/6800A | |
| 2.4M | 45℃/5400A | 45℃/6200A | ||
| Weight | 2.0M | 10.4KG | 13.2KG | Average Value |
| 2.4M | 12.2KG | 15.3KG | ||
Features
1. High-purity red copper hinge cables, having higher conductivity and lowering impedance between the transformer output and the welding gun
2. Excellent rubber sleeves and plum blossom rubber cores, having good pressure resistance, heat resistance, wear resistance, and bending performance
3. High resistance to repeating kicks and bending caused by electro-magnetic force induced by welding current and welding operation, and accordingly long life and good economy.
4. Minimal water pressure drop for excellent cooling effect
5. Convenient cable replacement and minimal downtime
Cross Section 300mm²
Cross Section 400mm²
Besides standard models, we can customized according to your requirements. More details, please contact!

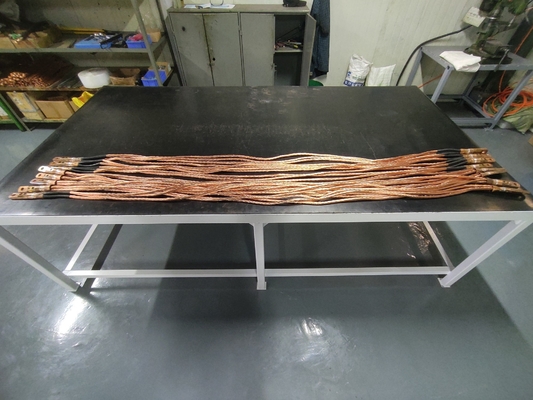

Raw Materials: Pure Red Copper
Application
