Copper Water Cooled Cables Kickless Cable For Cnc Suspension Spot Welder

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: XW
Minimum Order Quantity: 5
Price: USD300-USD350
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/month
Detail Information
Product Name: Kickless Cable Application: Industrial Soldering Accessory
Usage: Welding Accessroies Conductor Material: Red Copper
Standard Diameter: 200mm²/400mm² Standard Length: 2m-3.5m
Feature: High Temperature Resistance/High Insulation After Warranty Service: Video Technical Support, Online Support And Spare Parts
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training Certification: CE, ISO
High Light:

Spot Welder Copper Cables

,

Spot Welder Water Cooled Cables

,

Cnc Suspension Spot Welder Cables


Product Description

Kickless Cable Water Cooled Copper Cables For Cnc Suspension Spot Welder Welding Machine Machines





Product Description


kickless cable, is a hollow specialized cable used for high current heating equipment, can be divided into kickless cables and secondary cables. Usually composed of electrodes (cable heads), wires, and external protective sleeves. Mainly used for hanging type spot welding machines or suspension spot welding machines. Kickless Cables are water-cooled cables for use where severe twisting or jumping occurs in the cable. The positive and negative copper ropes inside are positioned alternatively, making them ideal for weld guns and robotic weld machines.





Parameter



Item Specifiction 300mm² 400mm² Note
Impedance 2.0M 480±15μΩ 358±15μΩ
2.4M 593±15μΩ 445±15μΩ
Dc impedance value 2.0M 475μΩ 355μΩ
2.4M 587μΩ 440μΩ
Resistance 2.0M 78μΩ 74μΩ Calculated Value
2.4M 82μΩ 88μΩ
Power   =0.99 =0.99
Cooling water capacity   7.0L/MIN 7.0L/MIN Pressure Loss of 0.7KG/cm
Temperature rise characteristic 2.0M 45℃/5900A 45℃/6800A
2.4M 45℃/5400A 45℃/6200A
Weight 2.0M 10.4KG 13.2KG Average Value
2.4M 12.2KG 15.3KG




Features



1. During the welding process, cable bending occurs due to the back and forth movement of the welding pliers. Stress will be concentrated at the root of the end of the welding pliers, which can easily cause wire breakage. Low sensitivity cables are forged with copper tubes as connectors, which can prevent concentrated bending of wires and also insert clamps to prevent wire breakage.



2. The positive and negative poles are well separated by insulating tubes, providing a space between the cable and the outer tube, which can also provide excellent bending performance.



3. The cable is made of high-quality wire. In order to achieve low impedance and high yield, the terminals and cables are fixed tightly with stainless steel bolts, and brazing is used to reduce resistance. Once cooling water is introduced from the terminals, the cable maintains cooling water.



Standard Drawing

Cross Section 300mm²

Copper Water Cooled Cables Kickless Cable For Cnc Suspension Spot Welder 0







Cross Section 400mm²

Copper Water Cooled Cables Kickless Cable For Cnc Suspension Spot Welder 1

Besides standard models, we can customized according to your requirements. More details, please contact!



Scene images

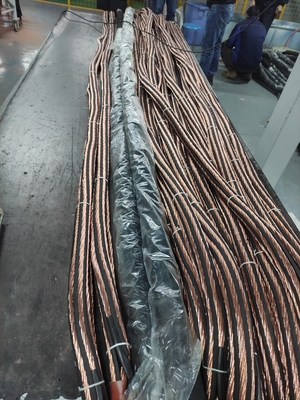

Raw Materials: Pure Red Copper

Copper Water Cooled Cables Kickless Cable For Cnc Suspension Spot Welder 2

Careful Protection :Additional Rubber Sleeve

Copper Water Cooled Cables Kickless Cable For Cnc Suspension Spot Welder 3

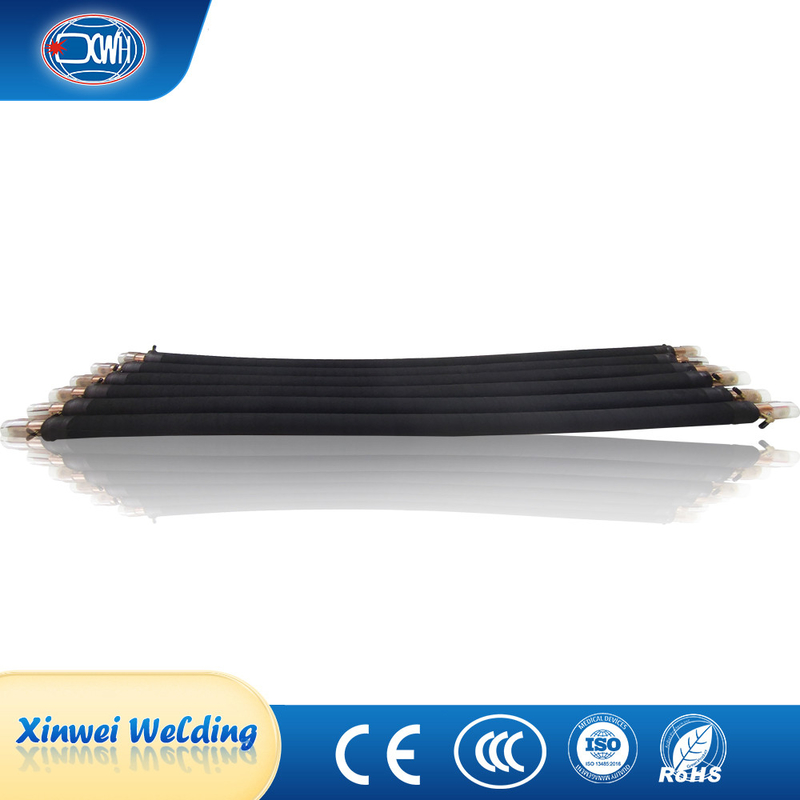

Finished Product

Copper Water Cooled Cables Kickless Cable For Cnc Suspension Spot Welder 4




Application



Copper Water Cooled Cables Kickless Cable For Cnc Suspension Spot Welder 5





Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
