| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Model Number: | XW |
| Minimum Order Quantity: | 5 |
| Price: | USD300-USD350 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets/month |
| Certification: | CE, ISO | Product Name: | Kickless Cable |
|---|---|---|---|
| Application: | Industrial Soldering Accessory | Usage: | Welding Accessroies |
| Conductor Material: | Red Copper | Standard Diameter: | 300mm²/400mm² |
| Standard Length: | 2m-3.5m | Feature: | High Temperature Resistance/High Insulation |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| High Light: | Kickless Copper Water Cooled Cables,Spot Welding Machine Copper Cable,L 2m Water Cooled Cables |
||

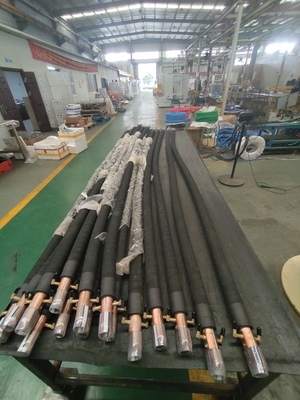

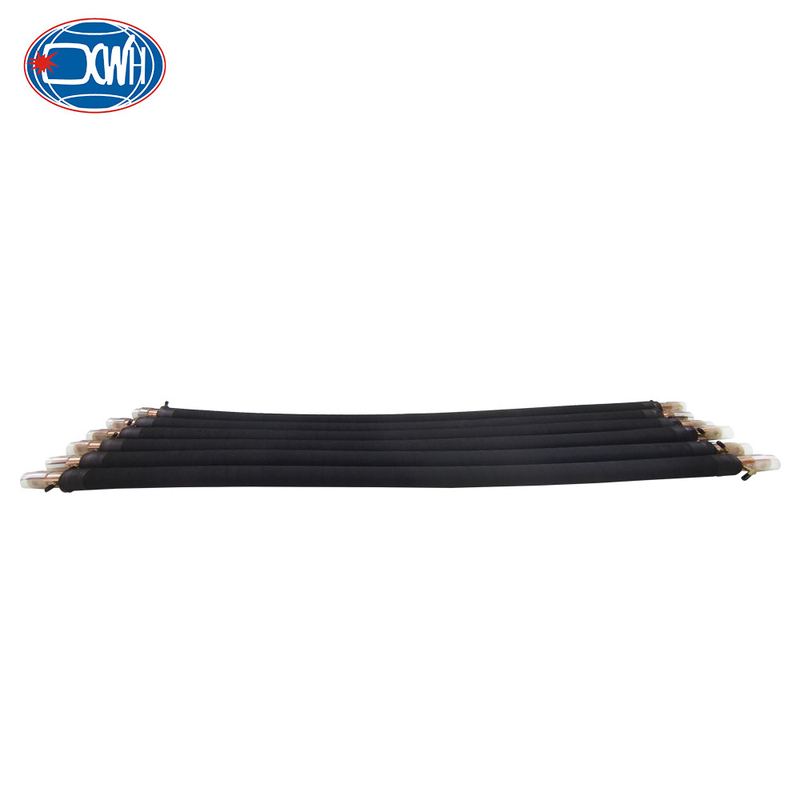

Water Cooled Copper Cables Kickless Cable For Portable Spot Welder Welding Machine
Kickless Cable/ Secondary Cable belongs to a type of insulated conductor or cable distinguished by shape. It is a type of water cable with small cross-section, high working current, and good cooling effect. It is suitable for use on electrical equipment working under low voltage and high current, and can be easily bent and moved.
Parameter
| Item Specifiction | 300mm² | 400mm² | Note | |
| Impedance | 2.0M | 480±15μΩ | 358±15μΩ | |
| 2.4M | 593±15μΩ | 445±15μΩ | ||
| Dc impedance value | 2.0M | 475μΩ | 355μΩ | |
| 2.4M | 587μΩ | 440μΩ | ||
| Resistance | 2.0M | 78μΩ | 74μΩ | Calculated Value |
| 2.4M | 82μΩ | 88μΩ | ||
| Power | =0.99 | =0.99 | ||
| Cooling water capacity | 7.0L/MIN | 7.0L/MIN | Pressure Loss of 0.7KG/cm | |
| Temperature rise characteristic | 2.0M | 45℃/5900A | 45℃/6800A | |
| 2.4M | 45℃/5400A | 45℃/6200A | ||
| Weight | 2.0M | 10.4KG | 13.2KG | Average Value |
| 2.4M | 12.2KG | 15.3KG | ||
Features
1. High-purity red copper hinge cables, having higher conductivity and lowering impedance between the transformer output and the welding gun
2. Excellent rubber sleeves and plum blossom rubber cores, having good pressure resistance, heat resistance, wear resistance, and bending performance
3. When the cooling water enters the terminal, it fills the cable and begins to flow towards the "+" and "-" poles, so the water pressure does not decrease, thus achieving effective cooling effect.
5. Due to long-term use, the copper wire may become rough and break, and the cooling water holes may become blocked, leading to a deterioration of the water cooling effect and even causing breakage. And in order to interweave the various strands of cables together without friction, reasonable techniques are also used in the weaving method of plain wires.
Cross Section 300mm²
Cross Section 400mm²
Besides standard models, we can customized according to your requirements. More details, please contact!
Raw Materials: Pure Red Copper
Application
