Water Cooled Cooling Kickless Cable 1M Secondary Cable

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: XW
Minimum Order Quantity: 5
Price: USD50-USD350
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/month
Detail Information
Product Name: Secondary Cable Application: Soldering Accessory
Usage: Welding Accessroies Conductor: Pure Red Copper
Standard Diameter: 150mm²/200mm²/300mm²/400mm² Standard Length: 0.6m-3.5m
Insulation: Rubber Insulation After Warranty Service: Video Technical Support, Online Support And Spare Parts
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training Certification: CE, ISO
High Light:

Water Cooling Kickless Cable

,

Kickless Cable 1M

,

1M Secondary Cable


Product Description

Water Cooling Kickless Cabled 1M Secondary Cable Water Cooled Cable





Product Description


Our company's water cooled cables and wires have undergone strict testing and testing in terms of material and size, number of braids, cooling methods, etc. The water cooled cables are wrapped in pressure resistant, durable, and flexible rubber tubes. In addition, the construction of terminals and the combination method of water cooled cables have also been designed through long-term research and practice.




Parameter



Item/Cross Section
150 mm²
200mm²
300mm²
400mm²
Length
0.6m-1.2m
2m-3.5m
Materials
Yes
Customization
Red Copper+ Rubber




Features



1. Terminal performance: Made of high-purity red copper material with a one-time forging process to improve its high conductivity.



2. Conductive structure: The wire core is made of high-purity red copper rods, which are drawn into single wires and tinned before being twisted together. Overcoming the drawbacks of traditional cable conductors such as fuzzing, breakage, and breakage, low impedance and high power have been achieved.



3. Rubber sleeve: Special pipes with high rubber content, softness, wear resistance, and heat resistance are used, which have good elasticity, flexibility, and rich color.



4. Joint welding technology: New high-temperature welding technology has been introduced, which is resistant to high temperature, low resistance value, and high conductivity, avoiding the phenomenon of breakage and detachment caused by high current impact in general brazing. Non welding cables have been developed, which are connected to wires through pressure to improve their service life.





Standard Drawing

Cross Section 150mm²

Water Cooled Cooling Kickless Cable 1M Secondary Cable 0



Cross Section 300mm²

Water Cooled Cooling Kickless Cable 1M Secondary Cable 1



Besides standard models, we can customized according to your requirements. More details, please contact!





Scene images

Raw Materials: Pure Red Copper

Water Cooled Cooling Kickless Cable 1M Secondary Cable 2

Water Cooled Cooling Kickless Cable 1M Secondary Cable 3



Careful Protection :Additional Rubber Sleeve

Water Cooled Cooling Kickless Cable 1M Secondary Cable 4

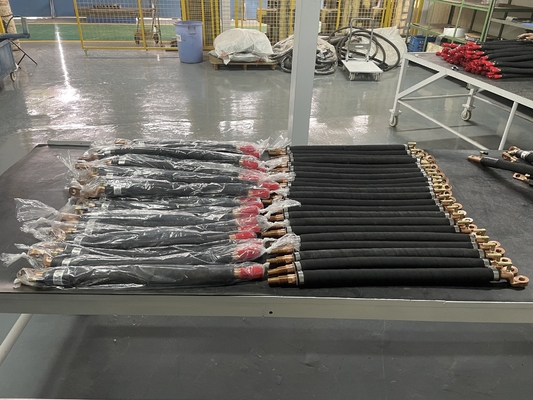

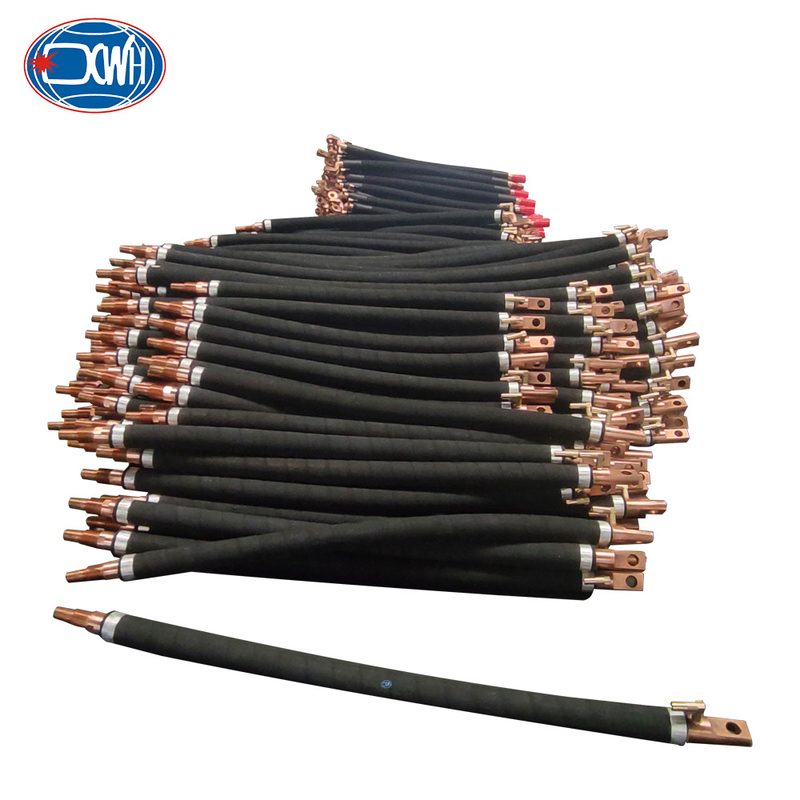

Finished Product

Water Cooled Cooling Kickless Cable 1M Secondary Cable 5



Water Cooled Cooling Kickless Cable 1M Secondary Cable 6




Application



Water Cooled Cooling Kickless Cable 1M Secondary Cable 7





Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.


Water Cooled Cooling Kickless Cable 1M Secondary Cable 8
Water Cooled Cooling Kickless Cable 1M Secondary Cable 9
Water Cooled Cooling Kickless Cable 1M Secondary Cable 10
Water Cooled Cooling Kickless Cable 1M Secondary Cable 11
Water Cooled Cooling Kickless Cable 1M Secondary Cable 12Water Cooled Cooling Kickless Cable 1M Secondary Cable 13
Water Cooled Cooling Kickless Cable 1M Secondary Cable 14
Water Cooled Cooling Kickless Cable 1M Secondary Cable 15
