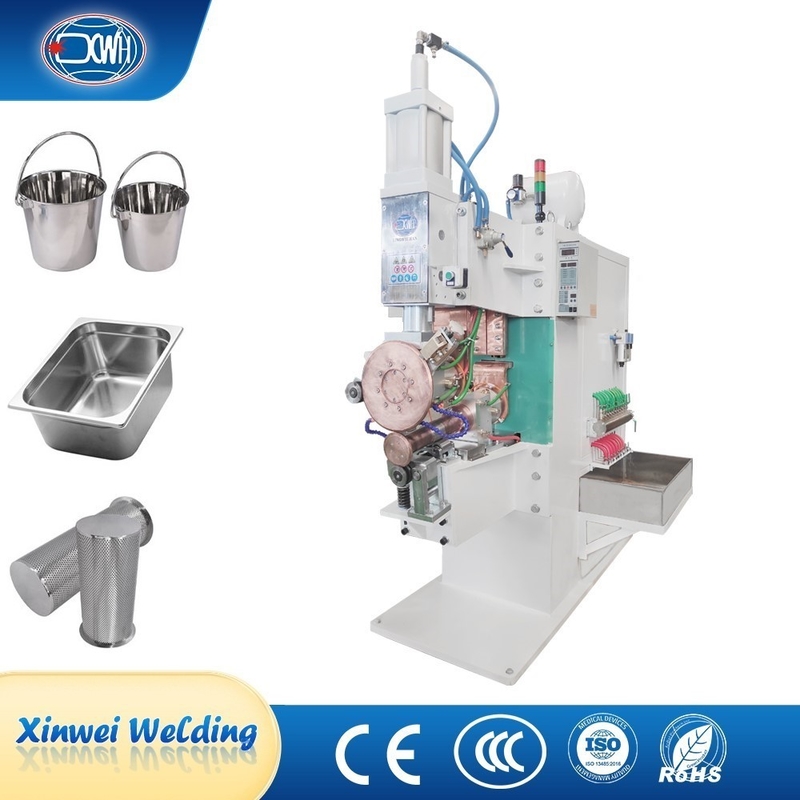

Longitudinal Rolling And Tunnel Straight And Circular Seam Welding Machine

Longitudinal Rolling And Tunnel Straight And Circular Seam Welding Machine

Brand Name: XWH
Model Number: FN-80-H, FN-100-H, FN-160-H, FN-100-E, FN-160-E
MOQ: 1 Set
Price: $18000.00 - $20000.00
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/month
Detail Information
Place of Origin:
China
Certification:
CE
Features:
High Efficiency
Product Name:
Aluminum Tank Welding Machine
Application:
Sink Welding Machine
Function:
Weld Tank Circular Seam Welding Machines
Type:
Rolling Seam Welder
Welding Material:
Stainless Steel Carbon Steel Metal
After Warranty Service:
Video Technical Support, Online Support And Spare Parts
After-sales Service Provided:
Free Spare Parts, Field Installation, Commissioning And Training
Certification:
CE
Packaging Details:
Wooden Case
Supply Ability:
50 sets/month
Highlight:

Circular Seam Welding Machine

,

Longitudinal Rolling Seam Welding Machine

,

Tunnel Straight Seam Welding Machine

Product Description




Longitudinal Rolling And Tunnel Straight And Circular Seam Welding Machine



Product Introduction:


The FN series seam welding machine adopts an advanced digital logic control method, which can accurately control the size of the current and the length of welding time. Suitable for welding between metals such as iron, zinc, nickel, stainless steel, tungsten, and other dissimilar metals. Due to the pulse welding performance of this series of welding machines, the welding effect is good.





Technical Parameters:




Model/Item
Unit
FN-80-H
FN-100-H
FN-160-H
FN-100-E
FN-160-E



Rated power

KVA
80
100
160
100
160



Voltage input
V



380



 380



380



380



380





Frequency
Hz
50
50
50
50
50



Max. short circuit current
KA
26
30
40
30
40



Working stroke

  mm

100

100

100

100

100



Welding efficiency
m/min
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9



Max. force
N
6000
6000
7800
6000
7800



Max. welding capacity
mm
1.2+1.2
1.5+1.5
2.0+2.0
1.5+1.5
2.0+2.0



 Motor Power

W
550
750
750
750
400



Cooling consumption
L/min
8
8
10
8
10

Weight
Kg
380
510
630
530
700





Features:



1. Rack: The rack is a vertical structure made of high-quality steel plates and sections that have been welded, heat-treated (stress relieved), and precision machined to ensure the required rigidity and accuracy during workpiece welding.



2. Rolling welding head component: The rolling welding head box is made of chrome zirconium copper casting and processing as a whole. The rotating shaft conducts electricity through contact with the silver tile, resulting in higher conductivity efficiency. Internal water cooling is used near the conductive contact area to timely remove heat and ensure conductivity and service life.



3. Welding wheel drive mechanism: The rotating conductive part of the welding machine adopts an embedded silver tile structure, and the conductive seat is fully sealed with oil immersed conductivity and lubrication. Internal forced cooling is used to enhance the cooling effect of the conductive shaft. Improving conductivity while effectively preventing the "biting" phenomenon of the bearing shell, minimizing the loss of electrical energy conversion, cleverly and reasonably designing the internal structure, and reducing the weakening of welding performance caused by heat generation. Due to the long-term oil lubrication of the conductor, it has a durability period of 3-5 years, which is incomparable to ordinary copper shaft hard wear structures.





General Structures:



Longitudinal Rolling And Tunnel Straight And Circular Seam Welding Machine 0

Longitudinal Rolling And Tunnel Straight And Circular Seam Welding Machine 1



Detail Images:



Longitudinal Rolling And Tunnel Straight And Circular Seam Welding Machine 2



Multi Types:



Longitudinal Rolling And Tunnel Straight And Circular Seam Welding Machine 3Longitudinal Rolling And Tunnel Straight And Circular Seam Welding Machine 4

Longitudinal Rolling And Tunnel Straight And Circular Seam Welding Machine 5Longitudinal Rolling And Tunnel Straight And Circular Seam Welding Machine 6





Application:



Longitudinal Rolling And Tunnel Straight And Circular Seam Welding Machine 7



Please note: the welding machine can be custom-made according to your requirements.
