Water Tank Roll Circular Straight Seam Welder Equipment Pneumatic Welding Machine

Water Tank Roll Circular Straight Seam Welder Equipment Pneumatic Welding Machine

Brand Name:	XWH
Model Number:	FN-80-H, FN-100-H, FN-160-H, FN-100-E, FN-160-E
MOQ:	1 Set
Price:	$6000 - $7000.00
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Water Tank Roll Circular Straight Seam Welder Equipment Pneumatic Welding Machine

Application:

Solar Water Heater Tank

Function:

Kitchenware Water Tank Welding

Type:

High Quality Straight And Circular Pneumatic Seam Welding Machine

Key Word:

Circular Seam Welding Machine

Welding Material:

Stainless Steel Carbon Steel Metal

After Warranty Service:

Video Technical Support, Online Support And Spare Parts

After-sales Service Provided:

Free Spare Parts, Field Installation, Commissioning And Training

Certification:

Packaging Details:

Wooden Case

Supply Ability:

50 sets/month

Highlight:

Circular Straight Seam Welder Equipment

Water Tank Roll Seam Welder Equipment

Pneumatic Welding Machine

Product Description

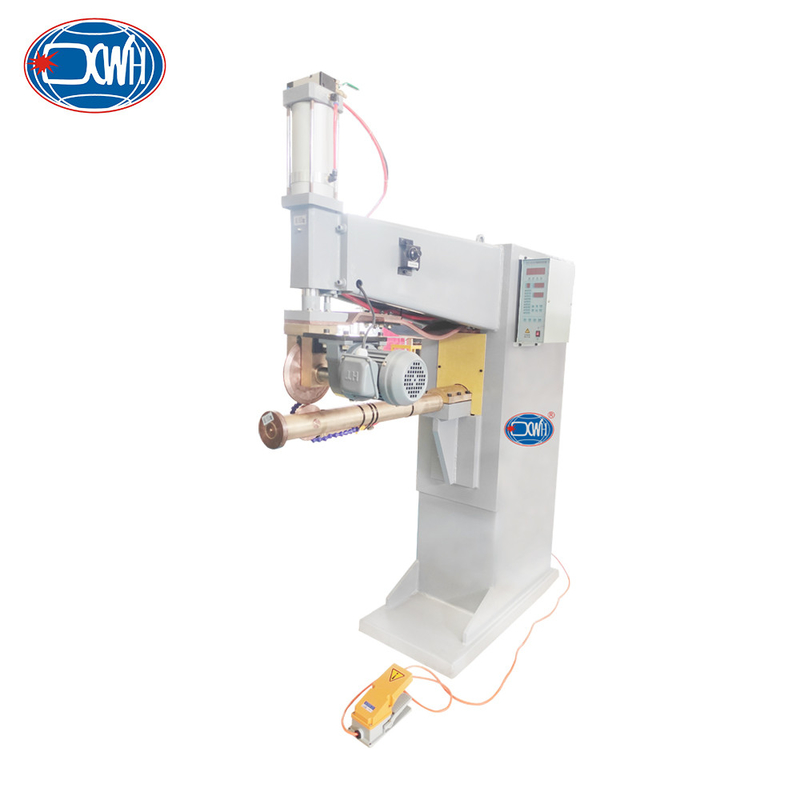

Water Tank Roll Circular Straight Seam Welder Equipment Pneumatic Welding Machine

Product Introduction:

The seam welding machine adopts an advanced digital logic control method, which can accurately control the size of the current and the length of welding time. Suitable for welding between metals such as iron, zinc, nickel, stainless steel, tungsten, and other dissimilar metals. Due to the pulse welding performance of this series of welding machines, the welding effect is good.

Technical Parameters:

Model/Item	Unit	FN-80-H	FN-100-H	FN-160-H	FN-100-E	FN-160-E
Rated power	KVA	80	100	160	100	160
Voltage input	V	380	380	380	380	380
Frequency	Hz	50	50	50	50	50
Max. short circuit current	KA	26	30	40	30	40
Working stroke	mm	100	100	100	100	100
Welding efficiency	m/min	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9
Max. force	N	6000	6000	7800	6000	7800
Max. welding capacity	mm	1.2+1.2	1.5+1.5	2.0+2.0	1.5+1.5	2.0+2.0
Motor Power	W	550	750	750	750	400
Cooling consumption	L/min	8	8	10	8	10
Weight	Kg	380	510	630	530	700

Features:

1. High precision machining of the conductive rotating shaft surface reduces friction and electrical contact losses, which can reduce production costs and save electricity;

2. Selected high-quality alloy imported brushes with extra large contact area, reducing heat generation and extending service life;

3. Precision mechanical processing uses CNC machine tools to process various components, ensuring the reliability and accuracy of each component;

4. Advanced controller with excellent electrical performance and advanced structure, with powerful performance and upgrade function;

5. Widely used in metal manufacturing and processing industries such as hardware, home appliances, automobiles, motorcycle fuel tanks, basin making, and can making.

General Structures:

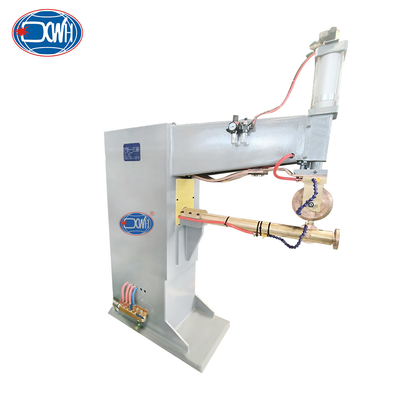

Water Tank Roll Circular Straight Seam Welder Equipment Pneumatic Welding Machine 0

BOTH HORIZONTAL SEAM WELDING AND VERTICAL SEAM WELDING

Just changing the direction of the upper electrode wheel and replacing the lower electrode arm, it is easy to switch between the two welding methods.

Detail Image:

Multi Types:

Application:

Please note: the welding machine can be custom-made according to your requirements.

Frequently Asked Questions:

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
